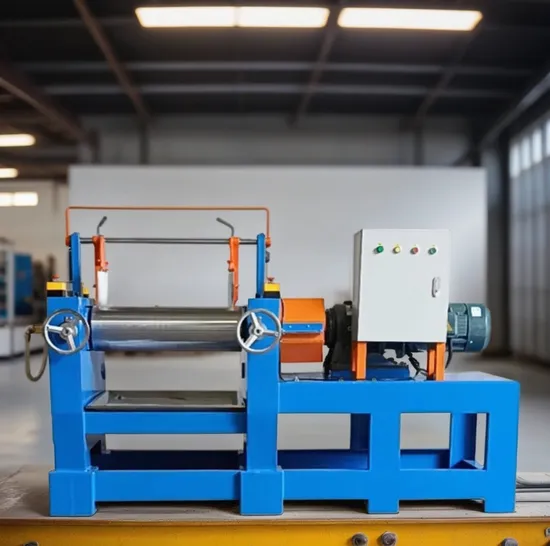

Factory Direct 9 Inch Customizable PVC Color Matching Color Mixing Plastic Mixer Two-Roller Open Mill Mixing Tablet Rubber Mixer

Product Description

Product Description NO1: High hardness chrome-plated roller roller is made of high strength steel, which is processed by quenching - outer circular
grinding - electroplating hard chromium - outer circular grinding - mirror polishing, so that it does not stick, does not
delamination, does not deformation, and never rust NO2: The safety device can be touched to stop immediately
Multiple touch-type emergency stoppers to avoid employees being mistakenly brought into the roller during work NO3: Well-known brand parts
Imported high-quality steel to manufacture bidirectional plain bearings with high precision, low friction, can withstand radial and thrust loads at the same time, after layer treatment more wear-resistant, service life can reach more than 30 years Detailed Photos
Specification

Model	YX-GK230
Diameter of Roll(mm)	230mm
Length of Roll(mm)	700mm
Maximum roll distance(mm)	10mm
Single feed	10-40KG
Power	11KW
Rotation Speed of Front Roll(rpm)	20r/min
Roll speed pattern	Constant speed (adjustable speed/double adjustable speed)
Bearing situation	Insert bearing
Reducer casing	Worm gear reducer
Voltage	380V
Weight	~2000KG
Dimension(L*W*H)	2450*1000*1450mm

Packing & Delivery Mass production, a large number of spot, manufacturers directly to all parts of the country, some exports to Southeast Asia,Europe, Africa and other parts of the world. Company Profile
