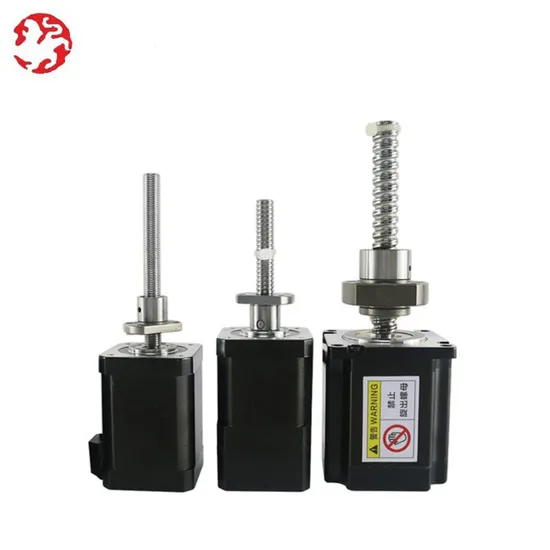

60# High Precision Servo Motor for Effective Ball-Screw Automation

60# High Precision Servo Motor for Effective Ball-Screw Automation

US$90.00-183.00 1 Piece (MOQ)

Basic Info.

Model NO.
SG060R20C30JNHZBqE
Excitation Mode
Permanent Magnet
Function
Control
Casing Protection
Protection Type
Number of Poles
10
Structure and Working Principle
Brushless
Type
Servo Motor Three-Phase
Certification
ISO9001
Brand
Tiger
Transport Package
Carton
Specification
60# 200W Ball-Screw Servo Motor
Trademark
Tiger
Origin
China
HS Code
8501510090
Production Capacity
1000000 Sets/Years

Product Description

1. Product Type
Introducing the remarkable 60# 200W Ball-Screw Servo Motor, designed to enhance your automation processes. Customize the encoder to perfectly align with your specific needs, ensuring precision and efficiency.
Our high-end motors are tailored for diverse applications, including cutting-edge industrial robots, AGVs, intelligent factories, state-of-the-art CNC machines, and the dynamic 3C electronics sector.
2. OEM & ODM Services
3. Our Advantages:3.1. Our R&D team is highly skilled, consistently pushing the boundaries to deliver innovative and reliable solutions.Our commitment to excellence shines through our rigorous quality assurance processes and reliable outcomes.
3.2. With reliability as our cornerstone, our quality control management ensures top-tier standards.
3.3. Enjoy swift delivery with our standard products, boasting lead times of approximately one week.
3.4. We offer cost-effective solutions without compromising on quality, complemented by competitive pricing.
3.5. Our products are certified by ISO9001 and CE, and adhere to RoHS requirements, guaranteeing compliance and quality.Certification: Proudly holding ISO9001 and CE certifications, our products are also RoHS compliant.
3.6.Witha one-yearwarranty under normal use, offering peace of mind and trust in our product's longevity and quality.
4. Product Features
4.1. Our entire series employs an advanced 5-pair pole scheme, setting a new standard in motor technology.
4.2. We lead the industry with an innovative compact design, maximizing efficiency and space utilization.
4.3. Our rotor's embedded magnetic steel is engineered to prevent detachment, ensuring durability and performance.
4.4. Our motors are compatible with a range of encoder types, including our proprietary encoder products, for optimal performance.
Experience superior performance advantages that set us apart from the competition.
4.5. Available in sophisticated silver and black finishes, our motors predominantly feature an elegant black exterior.
5. Technical Indicators
Technical indicators
Rated output power 200 W
Number of poles 10 P
rated voltage 48 VDC
Rated speed 3000 r/min
Maximum speed 3600 r/min
Rated torque 0.64 N.m
Instantaneous maximum torque 1.92 N.m
Rated Current 5.78 A(rms)
Instantaneous maximum current 17.4 A(rms)
Line back EMF 7.02 V/krpm
Torque coefficient 0.116 N.m/A
Moment of inertia 0.3 Kg.sq.m.10-4
Line resistance 0.591 ohm
Line inductance 1.012 mH
Brake rated voltage without VDC
Brake rated power without W
Brake static torque without N.m
Brake moment of inertia without Kg.sq.m.10-4
Weight 1.2 Kg
Feedback element Optional
Temperature sensor NC
Ballscrew Motor series Type Rated power Ball screw lead Length of ballscrew
SG040 40 50 1/2/2.5/5/8 50-240(Every 15mm interval)
SG040 40 100 1/2/2.5/5/8 50-240(Every 15mm interval)
SG060 60 200 1/2/2.5/5/8 50-240(Every 15mm interval)
SG060 60 400 1/2/2.5/5/8 50-240(Every 15mm interval)
SG060 60 600 1/2/2.5/5/8 50-240(Every 15mm interval)

6. Functional Features
Working hours Continuous
Heat resistance Class F
Body color Black
Cooling method Natural cooling
Vibration level V15
Connection method Direct connection
Installation method Flange installation
Excitation method Permanent magnet
Protection method Fully enclosed ,self-cooling IP65 (except shaft penetration)
Rotation method Counterclockwise rotation(CCW) as seen from the extension end of the motor shaft
7. Exterior Design
8. Servo Motor Wiring Definition
9. Company Profile
10. Development History
11. Motor Overview
12. Certificate and Patent Display
