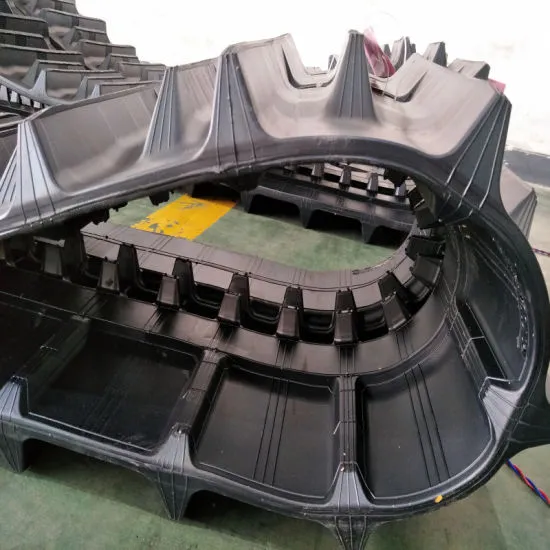

Yanmar Harvester Rubber Tracks Crawler 500*90aw*54

Yanmar Harvester Rubber Tracks Crawler 500*90aw*54

Negotiable 1 PCS (MOQ)

Basic Info.

Model NO.
500*90AW*54
Power Source
Tractor
Harvest method
Cutting
Drive Type
Gear Drive
Certification
ISO9001:2008
Color
Black
Condition
New
Application Field
Agriculture
Material
Rubber and Steel
Usage
Class Harvesters
Main Market
India
Tread Pattern
Mud and Snow Pattern
Width
500mm
Pitch Length
90mm
Links
54(Can Be Customized)
Weight
160kg/ PC
Warranty
Guarantee 12 Months Under Normal Use
Transport Package
Bare Packing or Wooden Pallet
Specification
500*90aw*54
Trademark
No Marks or As Buyer′s Requests
Origin
Shanghai China
HS Code
8431499900
Production Capacity
5000PCS/Month

Product Description

Yanmar Types Harvester Spare Parts Rubber Tracks 500/90AW/54

Applicable machines		 various kinds of Harvester
Material rubber and steel
Specification 500*90AW*54
Installation position Installed on the agricultural Harvester

Product Description:
Are you finding a good manufactuers or suppliers of rubber crawlers for harvester now? --We have advanced equipment, and our workers have experienced production skills ,also we have a strict control of each production line to ensure the quality.
Rubber Track for combine harvester:
Track Size Lug
Pattern
 Guide
Type
 I.G.B. O.G.B. Track Size Lug
Pattern
 Guide
Type
 I.G.B. O.G.B.
(width*pitch) (mm) (mm) (width*pitch) (mm) (mm)
150*72 EB A,B 24 62 350*52.5 BD C,D 38 90
180*60 EB/CF A,B 22 64 350*54.5 BE E1 40 92
180*72 EA A,B 22 68 350*56 BF C,D 38 90
180*72K AE E1 22 66 350*56KB(R) AG E1 38 88
B180*72 BM B 22 68 350*75.5Y BH F 38 100
200*72 EC A,B 23 64 350*90 HC B 26 78
200*72K AE E1 22 69 370*107Y CE E1 38 92
230*101 CC C 24 75 400*107Y CE E1 38 92
230*48 AB C 22 76 400*142K AD E1 30 94
230*48K AG E1 25 67 400*72.5KB(R) AA C,E1 50 106
230*72 DB A,B 23 76 400*72.5KM AF C,E1 38 93
230*72K BM E1 23 66 400*72.5N BA C,D 38 95
230*96 CD C 26 76 400*72.5W AA C,D 50 108
250*47 AG D,E1 24 70 400*72.5YM AG E1 32 90
250*48.5Y BH E2 24 66 400*75.5YM BH F 40 100
250*52.5 BC C,E 25 74 400*86 HA B 50 94
250*72 DA A,B 24 78 400*90 HC B 26 76
250*72V SV B 24 76 400*90KB HC B 38 84
260*109 CC C,D 30 86 400*90R KB B 36 86
260*55.5Y BH E2 30 82 420*100 CF A,B 50 98
260*96 CC C 24 76 450*163K AD E1 40 120
280*106Y CE E1 29 81 450*71 AC C,D 42 115
280*72 DC A,B 26 78 450*76 AD C,D 47 118
300*109K CE E 26 86 450*81N AD C,D 40 116
300*109N CB C,D 30 78 450*81W AD C,D 60 144
300*109W CE C,D 40 94 450*81.5 BN D 43 110
300*52.5K BC E1 30 88 450*83.5K AD C 42 114
300*52.5N BC C,D 31 82 450*83.5Y BK F 40 116
300*52.5W BB C,D 42 94 B450*84 HA B,E1 42 98
300*53 BG E1 32 88 B450*86C SC B 50 98
300*55 AA C,D 30 82 B450*86MB HA B 50 98
300*55.5Y BH E2 30 82 T450*100MB HA E1 45 104
300*72 DE B 25 78 T450*100C SC E1 45 104
320*100 CF A,B 32 83 T450*100SB SB E1 45 104
320*106Y CB E1 30 82 450*90 HB B 38 86
320*54 BF C,D 30 82 450*90 HB B 36 85
B320*84MB HA B 47 104 500*90 KB B 47 98
B320*86MB HA B 47 96 500*92 AD E1 48 126
B320*86C SC B 47 96 600*100 KB B 45 115
T320*86C SC B 36 85 700*100 KB B 44 118
T320*86MB HA E1 36 85 750*150 KB B 62 176
T320*86SB SB E1 36 85 800*150 KB B 58 148
320*90 HC B 36 90 381*101NMC * * * *
320*90H KA B 38 78 457*101NMC * * * *


The feature of rubber tracks:

(1). Less round damage
Rubber tracks cause less damage to roads than steel tracks, and less rutting of soft ground than either steel tracks of wheel products.
(2). Low noise
A benefit to equipment operating in congested areas, rubber track products less noise than steel tracks.
(3). High speed
Rubber track permit machines to travel at a higher speed than steel tracks.
(4). Less vibration
Rubber tracks insulate machine and operator from vibration, extending the machine's lifetime and lowering operate fatigue.
(5). Low ground pressure
The ground pressure of rubber tracks equipped machinery can be fairly low, about 0.14-2.30 kg/ cmm , a major reason for its use on the wet and soft terrain .
(6). Superior traction
The added traction of rubber, track vehicles permits them to pull twice the load of wheel vehicles of the sane weight.
