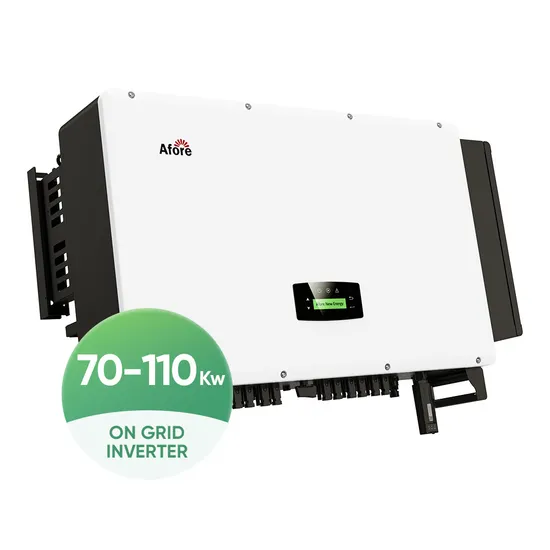

Afore On Grid Solar Inverter 80Kw 100Kw 110Kw 3 Phase Pure Sine Wave String Inverter
Basic Info.
Model NO.
AF 3 Phase 70-110KW-ON
Nature of Source Flow
Active Inverter
Phase
Three
Output Power
70-110KW
Certification
SAA, CE, ROHS, ISO9001, CCC
Brand
Afore
Type
DC/AC Inverters
Power Source
Solar Power
Circuit Topologies
Full-Bridge Type
Nature of Wave String
Sine Wave Inverter
Product name
Afore Solar Inverter
PV Input Power
105KW-165KW
MPPT Voltage Range
200 - 1000 v
No. of independent MPPT inputs
6 /12
Input Connector Type
MC4
Max Continuous Power
70-110 kW
Nominal Grid Voltage
260Vac-519Vac (according to local standard)
Nominal Grid Frequency
50/60Hz
Display & Communication Interfaces
LCD, LED, RS485, CAN, Wi-Fi, GPRS, 4G
Protection Degree
IP65
Transport Package
Carton with Pallets
Specification
979 x 610 x 310 mm
Trademark
Afore
Origin
China
HS Code
8504403090
Production Capacity
1000pieces/Week
Packaging & Delivery
Package Size
98.00cm * 61.00cm * 31.00cm
Package Gross Weight
18.000kg
Product Description
Product DescriptionTechnical Specifications
| Module | BNT070KTL | BNT075KTL | BNT080KTL | BNT090KTL | BNT100KTL | BNT110KTL |
| PV Input Data | ||||||
| Max. DC Power ( W ) | 105000 | 112500 | 120000 | 135000 | 150000 | 165000 |
| Max. DC Voltage ( V ) | 1100 | |||||
| MPPT Voltage Range ( V ) | 200 - 1000 | |||||
| MPPT Full Power Voltage Range ( V ) | 500 - 850 | |||||
| Rated Input Voltage ( V ) | 620 | |||||
| Start-up Voltage ( V ) | 200 | |||||
| Max. Input Current ( A ) | 38 x 6 | |||||
| Max. Short Current ( A ) | 48 x 6 | |||||
| No. of MPP Tracker / No. of PV String | 6 /12 | |||||
| Input Connector Type | MC4 | |||||
| AC Output Data | ||||||
| Max. Output Power ( VA ) | 77000 | 82500 | 88000 | 99000 | 110000 | 110000 |
| Nominal Output Power ( W ) | 70000 | 75000 | 80000 | 90000 | 100000 | 110000 |
| Max. Output Current ( A ) | 111 | 120 | 127 | 143 | 158 | 158 |
| Nominal Output Voltage ( V ) | 3P+N+PE /3P+PE 230/400 | |||||
| Grid Voltage Range | 260Vac-519Vac (according to local standard) | |||||
| Nominal Output Frequency ( Hz ) | 50/60 | |||||
| Grid Frequency Range | 45-55Hz/55-66Hz(according to local standard) | |||||
| Output Power Factor | 1 default (adjustable from 0.8 leading to 0.8 lagging) | |||||
| Output Current THD | <3% | |||||
| Efficiency | ||||||
| Max. Efficiency | 99.00% | |||||
| Euro Efficiency | 98.30% | 98.40% | ||||
| Protection | ||||||
| PV Reverse Polarity Protection | YES | |||||
| PV Insulation Resistance Detection | YES | |||||
| AC Short Circuit Protection | YES | |||||
| AC Over Current Protection | YES | |||||
| AC Over Voltage Protection | YES | |||||
| Anti-Islanding Protection | YES | |||||
| Residual Current Detection | YES | |||||
| Over Temperature Protection | YES | |||||
| Integrated DC switch | YES | |||||
| Surge Protection | Integrated (Type II) | |||||
| Smart IV Curve Scaning | YES | |||||
| Quick Arc Fault Circuit Interruption | Optional | |||||
| General Data | ||||||
| Dimensions (W x H x D, mm) | 979 x 610 x 310 | |||||
| Weight ( kg ) | 72 | 76 | ||||
| Protection Degree | IP65 | |||||
| Enclosure Material | Aluminum | |||||
| Ambient Temperature Range (°C ) | -25 to 60 | |||||
| Humidity Range | 0 -100% | |||||
| Topology | Transformerless | |||||
| Communication Interface | RS485 / WiFi / Wire Ethernet / GPRS (optional) | |||||
| Cooling Concept | Intelligent fan cooling | |||||
| Noise Emission ( db ) | <55 | <60 | ||||
| Night Power Consumption ( W ) | <1 | |||||
| Max. Operation Altitude ( m ) | ≤4000 | |||||
| Certifications and Standards | ||||||
| EMC Standard | EN/IEC 61000-6-2, EN/IEC 61000-6-3, EN61000-3-2, EN61000-3-3, EN61000-3-11, EN61000-3-12 | |||||
| Safety Standard | IEC 60068, UL1741, EN62109 | |||||
| Grid-connection | IEEE1547, CSA C22, EN50549, VDE4105, VDE0126, RD1699, ABNT NBR16149 & 16150, AS4777.2, NB/T32004, G98/G99, IEC61727 | |||||
