Light Steel Frame Machine for Multi Profile Floor Joist Sfs-Cu200-350

Product Description

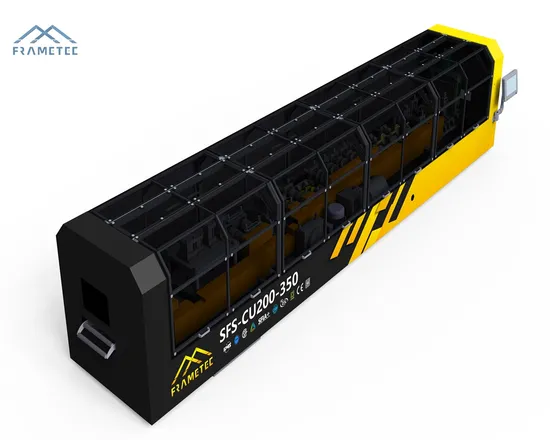

Light Steel Frame Machine For Multi Profile Floor Joist SFS-CU200-350
OVERVIEW SFS-CU200-350 is with a big service hole that dedicated for floor joist cassette manufacturing, which is an easy to install modular floor system used in timber, steel or concrete projects. It offers a strong and simplified floor solution, is part of the new wave of off-site manufacturing processes. You will also benefit from improved installation efficiency over SFS-CU200-350 floor joist machine.
Applications: floor joist for apartment, light commercial building, commercial building, etc.
MAIN FEATURES

Classical LGS machine models for 10+ years, very stable and with high speed production speed	Saves time and money on project costs
Services can pass through the pre-punched holes in the joist.	Lightweight & requires no propping.
High line speed results in the accelerated cold formed steel framing and truss manufacturing output	Smart internet connectivity provides cloud-based data reporting to enable real-time production management, and technical diagnostics to improve efficiency
The lightweight joists are able to be manually positioned requiring less cranage.	Self developing control system base on the market feedback that can meet your requirement well & with good after sales support

TECHNICAL PARAMETERS

1. Specifications

Profile Shape	C and U
Profile Size	200mm/250mm/300mm/350mm
Material Thickness	1.0-2.5 mm, G300-G450 Zinc-Alum Steel Coil
Operation System	21 inches Touchable Screen
Production Control System	Self-devoloped FrameTec LGR1 machine controlling Software
Design Software	Vertex BD/ Framebuilder MRD / Strucsoft & etc.
Comprehensive Machine Speed	Joists: 500 m/hr
Max. Machine Speed	2,150m/hr
Punching, Cutting Mould	Fixing tabs, Web hole, Service Hole, Dimple, Web Notch
Hole Punching Accuracy	± 0.5 mm

2. Working Flow
De-Coiler → Leveling Device→ Punching Device→ Roll Forming System→ Cutting Device → Out-Let Table
3. Profile Effect & Application
4. Design Software & Production System (International leading brand for LGS construction design)
4. Our Factory
Why Choose Frametec

FrameTec is a specialized manufacture focusing in high quality roll forming equiments for the construction of light steel frame structure & cold formed steel structures.
For many years, FrameTec insists on cooperating with customers as a partner and actively provides effective solutions to ensure reliable product performance, advanced technology and easy operation, and promote users to a higher position in the fierce market competition.
All our machines have a built in Windows based machine control which accepts a basic CSV file from a range of design software options that link to our machine. This gives freedom of choice to the customer.
FrameTec specializes in Designing and Manufacturing Steel Framing Machines for Panels, Trusses and Floor Joists in:
- Residential and Commercial buildings
- Steel framed systems for modular & prefabricated buildings
- Walls framed for low and high rise buildings
- Walling, floors, beams, roofing, kitchen & bathroom pods
- Storage, recreational, transportable dwellings
FrameTec, the intelligent manufacturing solution provider for multi-storey prefabricated buildings!
