Clr-3500 Big Capacity Rotary Desiccant Wheel Dehumidifier Industrial Air Dryer for Laboratory

Product Description

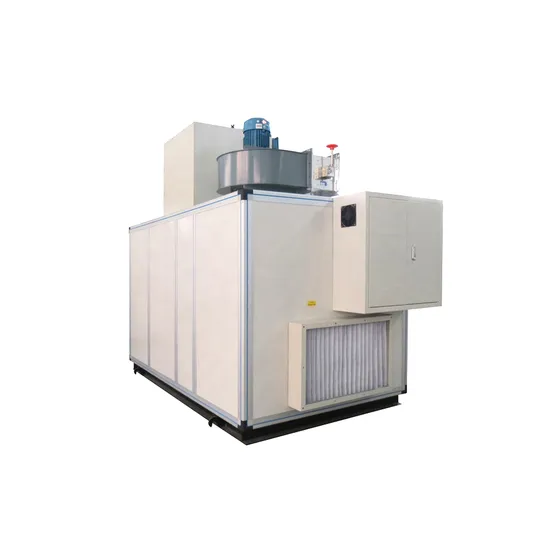

Conloon Desiccant Rotary Dehumidifier
CLR-3500
Character:
High moisture removal, suitable for low temperature and RH process.
Aluminum frame.
Inner insulation box, energy-saving. Rotary Desiccant Dehumidifier
Efficient centrifugal fans.
Thermal regeneration by electric heating pipe and stainless steel fins, thermal regeneration by vapor heating exchanger and copper tube aluminum fins.
Safe and convenient electric control.
Switch between manual and automatic control. Rotary Desiccant Dehumidifier

Small Desiccant Rotor Dehumidifiers
Main Parameters/Model		CLR-120	CLR-200	CLR-300	CLR-600	CLR-1000	CLR-1500	CLR-2000
Proecess Air	Rated Airflow (m³/h)	120	200	300	600	1000	1500	2000
	Process ESP(Pa)	/	/	/	/	200	200	200
Reactivation Air	Rated Airflow (m³/h)	40	67	100	200	333	500	667
	Process ESP(Pa)	/	/	/	/	200	200	200
Reactivation Model	Electric,Max Power(kw)	1.5	1.5	3	7.2	12	14.4	24
	Steam Pressure (Mpa)	/	/	/	/	0.35-0.45	0.35-0.45	0.35-0.45
	Steam Consumption (kg/h)	/	/	/	/	20	30	40
Dehumidifying Capacity (20ºC,70%RH)		0.6	1.5	1.6	4.5	7.2	11.4	14.5
Drive Motor	Motor Power(kw)	0.015	0.015	0.025	0.04	0.04	0.06	0.06
Installed Power(kw)	Electric Heating Model	1.685	1.5	3.325	7.2	12.96	16.31	25.51
	Steam Heating Model	/	/	/	/	0.96	1.91	1.51
Overall Dimensions (mm)	Length	530	450	530	550	600	710	1500
	Width	340	450	530	550	600	710	900
	Height	750	850	1280	1350	1380	1650	1660
Weight(kg)		35	50	80	95	200	300	350
Other Dates	Air Filter Level	/	/	/	/	G4	G4	G4
	Applied Temperature(ºC)	-30~+40

Note:
1. The desiccant dehumidifier will carry latent heat temperature rise to the dry room, please add the cooling capacity of the A/C to overcome the heat. Rotary Desiccant Dehumidifier
2. We provide the whole dehumidifier, users purchase and install the air pipe system themselves.
For your convenience
we will enclosed the Installation Guidance of Desiccant Dehumidifier
