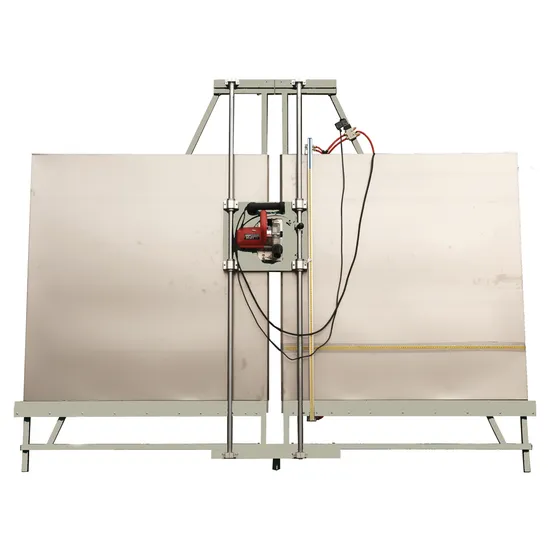

Woodworking Machinery Aluminum Solid Wood Plywood MDF PVC Melamine Board Horizontal Cutting Vertical Panel Saw

Woodworking Machinery Aluminum Solid Wood Plywood MDF PVC Melamine Board Horizontal Cutting Vertical Panel Saw

US$1,190.00
1-9 Pieces
US$500.00
10+ Pieces

Basic Info.

Model NO.
MJ6325
Power Type
Electric
Layout
Vertical
Controlling Mode
Artificial
Automatic Grade
Automatic
Precision
High Precision
Certification
CE, ISO
Customized
Customized
Condition
New
Color
Customized
After-sales Service
1 Year
Vertical Panel Saw Weight
60kg Vertical Panel Saw
Vertical Panel Saw Size
2400*1800*500mm Vertical Panel Saw
Vertical Panel Saw Max Height
1600mm Vertical Panel Saw
CE Certification
Yes
Transport Package
Plywood Case
Specification
2500*1800*500mm
Trademark
HOLZH
Origin
Qingdao
Production Capacity
20sets/Mouth

Product Description

Model MJ6325
Max cutting height 1300mm
Max cutting thickness 20mm
Power of main saw spindle 1.8kw
Rotary speed of main saw spindle 4400/5600r/min
Diameter of main saw 127mm
Diameter of main saw spindle 20mm
Tilting saw blade 90°
Voltage 220V
Dimension 2500*1800*500mm
Weight 200kg

1. Integrated design, the frame is welded by thickened square tubes, which is thick and firm.
2. Adopt high-quality linear bearings, thickened cylindrical guide rails, no bending or deformation, easy to move the panel saw, and convenient cutting.
3. The bottom is densely covered with roller guide rails, and the materials are placed on it, which can easily push the plates without effort and trouble.
4. With a scale, it is convenient to watch the size and ensure the cutting accuracy.
5. The panel is made of thick stainless steel plate, which is not deformed and not easy to rust.
6. Equipped with a pneumatic pressing device, start the electric cooker, the solenoid valve starts to work, and control the cylinder to press the plate, no need to hold the plate with hands, free your hands, convenient and practical.
7. Simple and convenient operation, high efficiency, one person can operate, safe and reliable.
With a rolling pulley, the board is easier to move and does not require much strength.
The saw head can be rotated horizontally, not only can be cut lengthwise, but also can be cut horizontally.
Connecting the expansion valve can tightly compress the plate to prevent it from moving, making it easier for us to operate.
Many support rods are used to make the panel very sturdy. Greatly increased stability.
Equipped with a graduated scale for precise cutting.
