Low Price Wood Gang Rip Saw Circular Multi Blade Cutting Machine

Product Description

Product Description

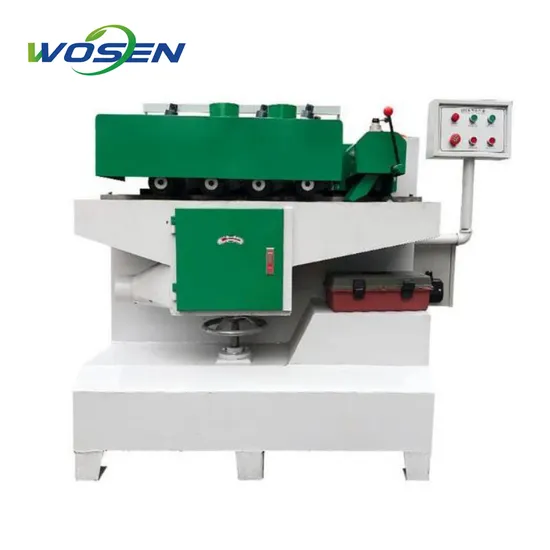

Multiple Blade Saw With Pneumatic Press Roller

Specification	MJ150	MJ200	MJ300
Max. Sawing Board Width	150mm	200mm	300mm
Sawing Board Thickness	2-65mm	2-65mm	2-65mm
Min Sawing Board Length	200mm	200mm	200mm
Saw Blade Diameter	250mm	250mm	250mm
Motor Power	11KW	15KW	18.5KW
Press Model	Pneumatic Press Roller

Light Type Multiple Blade Rip Saw

Technical Parameter	MBS380	MBS650
Sawing Board Width	20-380mm	20-650mm
Sawing Board Thickness	10-60mm	10-60mm
Min Sawing Board Length	450mm	450mm
Saw Diameter	230mm*50	230mm*60
Install Power	7.5KW	11KW
Saw Number	2-5 PCS	2-10 PCS
Spindle Speed	5800/min	5800/min
Weight	450KG	650KG

Related Machines
1.Square Timber Cutting Multiple Blade Rip Saw

Model	FM60	FM80	FM100	FM120	FM150	FM200	FM250	FM300
Process Height	0-60mm	30-80mm	40-100mm	50-120mm	60-150mm	90-200mm	110-250mm	150-290mm
Process Width	250/300/400mm
Blade Diameter	150mm	180mm	210mm	230mm	255mm	355mm	380mm	455mm
Main Motor	18.5KW*2	22KW*2	22KW*2	22/30KW	22/30KW	37KW*2	45KW*2	55KW*2
Weight	1190kg	1260kg	1420kg	1560kg	1620kg	2550kg	2580kg	2700kg

2.Log Cutting Multiple Blade Rip Saw

Model	YM150	YM200	YM240	YM285	YM340	YM400	YM430	YM480
Cutting Diameter	20-150mm	60-200mm	80-240mm	130-285mm	150-340mm	180-400mm	200-430mm	250-480mm
Blade Diameter	255mm	305mm	355mm	405mm	480mm	550mm	600mm	650mm
Main Moto	18.5KW*2	22KW*2	30KW*2	30/37KW	45KW*2	55KW*2	75KW*2	75KW*2
Weight	1570kg	1720kg	2200kg	2350kg	2650kg	3500kg	3880kg	4100kg

3.Slab Cutting Saw

Model	B200	B250	B300
Processing Wood Width	200mm	250mm	280mm
Saw Blade Diameter	305mm	355mm	405mm
Main Spindle Diameter	50mm	50mm	60mm
Spacer Outside Diameter	94mm	94mm	120mm
Electric Motor	7.5KW*2	7.5KW*2	11KW*2
Overall Size	1450*1150*1400mm	1450*1200*1400mm	1750*1250*1550mm
Weight	480kg	600kg	950kg

4.Multiple Blade Sawmill With Laser

Model	QB30-500	QB50-500	QB50-800	QB70-900
Max. Cutting Height	30mm	50mm	50mm	70mm
Max. Cutting Wood Width	500mm	500mm	800mm	900mm
Blade Diameter	160mm	210mm	210mm	255mm
Feeding Type	Belt	Belt	Belt	Press Roller
Main Motor	7.5KW	11KW	15KW	22KW
Overall Size	1320*850*1350	1350*850*1350	1350*950*1350	2200*1350*1600
Weight	400kg	510kg	730kg	1580kg

5.Small Wood Multiple Blade Sawmill

Specification	MJ200
Processing Wood Width	5-200mm
Processing Wood Thickness	5-60mm
Processing Wood Length	80-4000mm
Saw Axle Speed	3600 r/min
Blade Diameter	230mm
Total Power	12.84KW

Company Profile
Our company is China leading manufacturer of woodworking machinery,we are able to offer professional woodworking machinery to customers.
Our products are mainly included wood crusher,band saw, circular sawmill, wood pallet machine, wood pellet machine, wood planer, production line and so on. We have exported our machines to more than 70 countries and regions around the world, such as Southeast Asia, North America, South America, Africa, Europe, Middle East, Australia, Russia and so on.
In order to meet different requirements of customers, we have been constantly developing and improving product technology, quality and after-sale service. And we able to customize machine according to customer requirements, so it has won the favor of many customers.
If you are interested in our machine, please feel free to contact us.
FAQ
1.What is the machine delivery time ?Delivery time is 10-15 days.2.What is the payment term ?Payment term is 30% TT advance and balance before delivery machine.3.Could the machine customized according to client requirements ?Yes, can customize according to client requirements.4.What terms of trade can provide?We accept EXW, FOB, CIF, Express Delivery.5. What is your company business scope ?Our company main sell woodworking machine, including wood crusher, wood sawmill, wood pallet machine, wood pellet machine, drying kiln, wood planer and so on.
