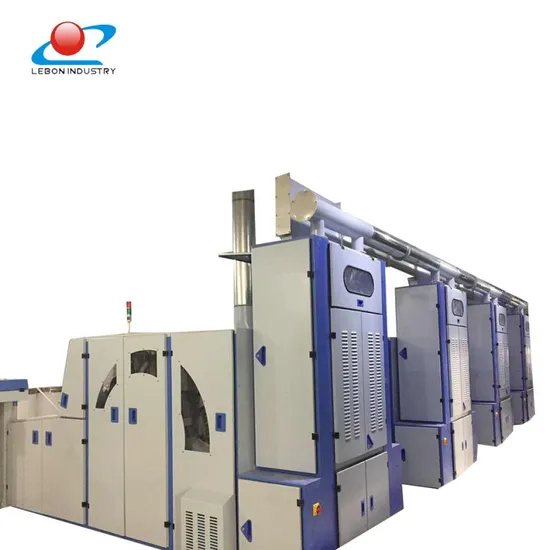

High Output Textile Spinning Line Cotton Blow Room-Carding Unit Machine
| US$16,500.00-17,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
LBSM-01
Spinning Method
Rotor Spinning
Processing Material
Cotton
Producing Process
Spinning Equipment
Certification
CE
Warranty
1year
Condition
New
After-sales Service
Installation and Training
Suitable
Cotton Sliver, Cotton Swab, Cotton Ball
Control
PLC Touch Screen or Button
Speed
High Speed, Middle Speed Customerized
Model
A186g, Fa203
Final Products
Cotton Buds, Cotton Ball, Zig Zag, Cotton Wool Rol
Raw Material
Bleached Cotton, Raw Cotton From Farmer
Capacity
35-200kgs/H
Final Product
OE Spinning Yarn, Ring Spinning Yarn
Suitalbe for
Medical Cotton Machine Line, Spinning Machine Line
Width
1m-2.5m
Delivery Time
1day
Guarantee
1year
Certificate
CE
Country
Turkey, Pakistan, Vietnam, India, etc
Transport Package
Export Standard
Specification
1.5-3meter customerized
Trademark
Lebon
Origin
China
HS Code
8445111300
Production Capacity
100-1000kg/H Customerized
Packaging & Delivery
Package Size
180.00cm * 150.00cm * 130.00cm
Package Gross Weight
200.000kg
Product Description
Textile Carding Machine for Spinning machineApplication:
Apply to the local cotton and chemical fiber spinning pure or blended with cotton roll feeding.
Technical Parameter:
| Scope of application | Apply to the local cotton and chemical fiber spinning pure or blended cotton roll feeding | |
| Quantitative production | 1.0 ~ 2.0 g / m | |
| Production | 20-30kg / h | |
| Working width | 1000 mm | |
| Additional pieces of comb | Roller carding a board | |
| Cover fixed after 2 | ||
| Cover fixed | ||
| Drawing a multiple of total | 67 ~ 120 | |
| Spurs roll diameter of the work | Φ250 mm | |
| Barbed roller speed of the work | Cotton | 1070 to / |
| Fiber | 980 / | |
| Work of the cylinder diameter | Φ1289 mm | |
| Cylinder speed of the work | Cotton | 360 / |
| Fiber | 330 / | |
| Work of Adolf diameter | Φ706 mm | |
| Speed of the work of Adolf | 21.3 ~ 38.2 to / | |
| Cover the number can (cover work / cover of the total) | 40/106 | |
| flat rate of | Cotton | 177 214 266 mm / sub |
| Fiber | 81 98 122 mm / sub | |
| Sliver application of the tube (diameter × height) | Φ600 × 900 mm φ600 × 1100 mm | |
| Dust | Cylinder triangle-Astoria, gill cover roller cover, curtain delivery vehicles belly 3 miscellaneous cleaning | |
| Suction air flow in a row | 1300 m 3 / h | |
| Wind | -500 ~ -600 Pa | |
| Total power installed capacity | 8.4 kW | |
| Adolf drive motor | 1.1 kW (frequency, a significant number of users may choose to use) | |
| Area (length × width) | 3809 × 2092 mm | |
| Weight of the whole machine | About 4500 kg | |
