Swing Beam Shear Cutting Machining CNC Milling Machine Manufacturer

Product Description

Efficient and easy to use double spindle CNC tool machine
Product Description
Suitable for:
This machine tool is most suitable for processing fields: aviation equipment, optical precision parts, auto parts, electronic connectors, advanced button accessories, small valves, watch parts, threaded joints, etc. Good processing for small parts, precision parts and non-ferrous metals. Hardware parts: steel parts, stainless steel parts, copper and aluminum parts, Disk parts: precision shaft pin, shaft sleeve, spindle, ring Precision thread: high-grade thread joint, slightly dense spindle lock cap, tooth compound
Feature
1. Fully enclosed double spindle docking machine.
2. The machine has two power heads, and the two power heads have docking function. It can realize the workpiece once clamping to complete all processing processes of the workpiece.
3. The machine adopts Kendi KND2000TTC numerical control system, the new generation 22-TB numerical control system, and other numerical control systems can also be installed according to user needs.
4. Maximum spindle speed: 3500rpm.
5. The external clamp of axis A adopts the back pull collet, and the elastic collet of axis B adopts the brand forward push collet, which is reliable and easy to replace.
6. X axis and Z axis adopt linear guide rail, smooth movement, light, low wear, good accuracy.
7. X axis and Z axis travel: 500mm/350mm.
8. X axis and Z axis feed maximum fast speed up to 20m/min.
Product Parameters

serial number	project	Technical parameter number
1	Spindle through hole diameter	φ52mm
2	spindle nose	A2-5
3	maximum rotating diameter	φ110mm
4	Single channel processing length	120mm
5	Maximum spindle speed	3500rpm
6	Maximum clamping diameter of the collet	Φ52mm
7	Tie rod connection thread	M42×1.5-7H
8	The maximum distance the X /Z axis moves	500mm/400mm
	(including movement distance during docking)
9	The maximum speed of the X and Z axes	20m/min , 15m/min
10	Qualitative accuracy of X-axis and Z-axis resetting	≤0.012mm (lead screw pre-drawing)
11	Left and right second test can be installed cutting tools	4-5 Knife loading unit

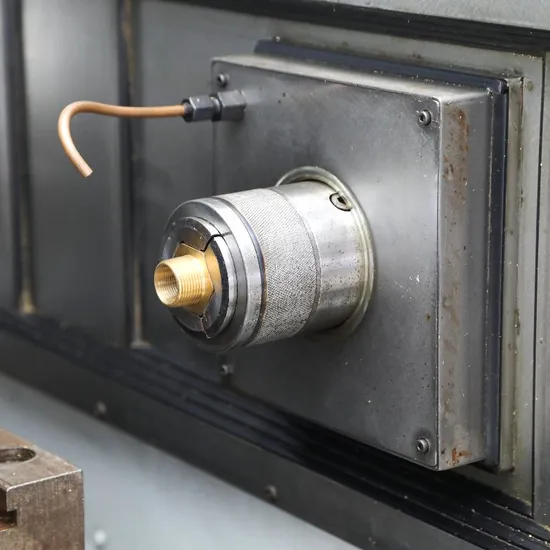

Detailed Photos
hot selling product
https://haochenmachine.en.made-in-china.com/product/MQdrcfjHXqYl/China-CNC-Machine-Efficient-and-Easy-to-Use-Double-Spindle-CNC-Machine-Tool.html?pv_id=1ievmtue4709&faw_id=1ievmtvdp273
Company Profile
Zhejiang Haochen CNC Equipment Co., Ltd. is located in Taizhou, Zhejiang, China. Our company specializes in the manufacturing of valve machines and aluminum product machines. Our main products include CNC Lathe Machines, CNC Transfer Machines, Automatic Forging Machines, CNC Machine Centers, Long Bar Feeder CNC Lathe Machines, Testing Machines, and more.
We have several engineers who are experts in structural design and possess strong product development capabilities. We provide design and manufacturing services for various types of machines and custom-structured machines for our clients.
Over the past 20 years, we have been supplying high-quality machines to many world-renowned brands in countries such as India, Bangladesh, Egypt, Turkey, Tunisia, Vietnam, Australia, the United States, and Ireland.
We look forward to establishing business relationships with everyone and hope to expand our business through joint efforts. We look forward to your inquiries.
FAQ
1. How can l choose the most suitable machines ?
A:Please tell me your specifications,we can choose the best model for you,or you can choose the exact model.You can also send us the products drawing,we will choose the most suitable machines for you.
2. Who are we?
A:We are based in Zhejiang, China, start from 2020,sell to Africa(30.00%),South Asia(20.00%),South America(10.00%). There are total about 11-50 people in our office.
3. How can we guarantee quality?
A: Always a pre-production sample before mass production;Always final inspection before shipment;
4. What can you buy from us?
A: CNC lathe machine, CNC transfer machine,CNC milling center, CNC turn-milling compound lathe,Punching machine ball machine, assembly machine and so on .
5. What's the MOQ?
A: 1 set.
