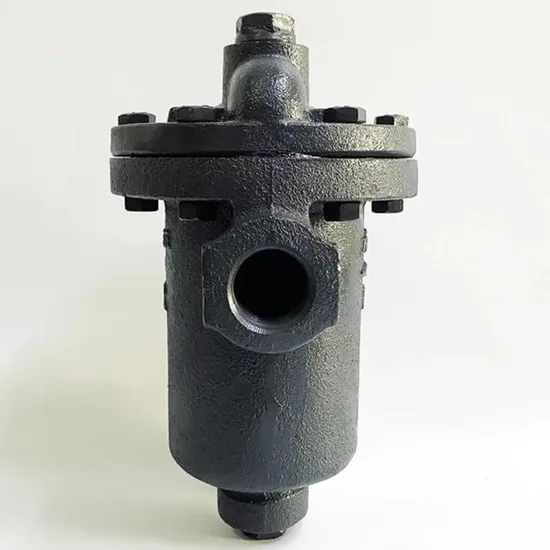

Inverted Bucket Steam Trap (STDXTH-882)
| Negotiable | 10 Sets (MOQ) |
Basic Info.
Model NO.
STDXTH-882
Material
Steel
Standard
En 558-1
Valve Plug
Alloy
Connection Form
Thread
Open Manner
Quick-Opening
Size
0.5
Usage
Sanitary Ware, Heating Pipeline
Situation
Industrial
Service Life
>3 Years
Transport Package
export packing
Specification
mfs
Trademark
ciphy
Origin
china
HS Code
84818011
Production Capacity
200pcs/mount
Product Description
CAST STEEL OR STAINLESS STEELSTEAM TRAP INVERTED BUCKET DESIGN
DESIGN DESCRIPTION: Design: Factory STD; Manufacture: Factory STD; Thread and Socket: ANSI B1.20.1,B16.11,BSPT,BSP,DIN2999; Integral Strainer; Free-floating Stainless Mechanism; Auto-Discharge Orifice At The Top Of Trap; With Continuous Air Venting At Steam Temperature; Continuing Or Interrupt Drain Characteristic; Fluid Application: Vapor, Condensation; Media Minimum Different Temperature: 25ºC(77°F) Working Pressure and Temperature.: PN16: 250ºC(480°F) Maximum PN25: 350ºC(660°F) Maximum
PARTS AND MATERIAL:
| PARTS NAME | MATERIALS |
| TOP NUT | CARBON STEEL |
| SEAT | STAINLESS STEEL |
| GASKET | GRAPHITE |
| LEVER | STAINLESS STEEL |
| DISC | STAINLESS STEEL |
| FLOAT BUCKET | STAINLESS STEEL |
| BOTTOM NUT | CARBON STEEL |
| SPRING RING | CARBON STEEL |
| BODY | CATBON STEEL |
| OTHER MATERIALS ARE AVAILABLE UPON REQUEST. | |
DIMENSIONS LIST(UNIT:MM):
| DN | NPS | L | H1 | H2 | W |
| 15 | 1/2" | 130 | 85 | 90 | 98 |
| 20 | 3/4" | 130 | 85 | 90 | 98 |
| 25 | 1" | 130 | 85 | 90 | 98 |
| Remark: Our design can be suitable for all standard (BS, DIN, ANSI, JIS standard etc.) | |||||
