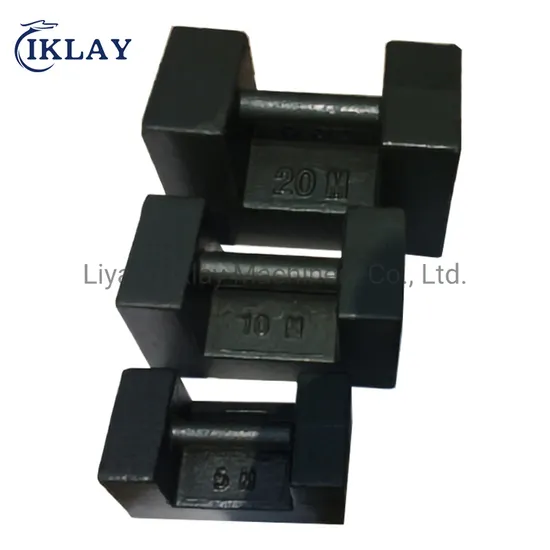

OIML Standard Cast Iron Test Weight 5kg 10kg 20kg Standard Weights Calibrated Weight

Product Description

Cast iron test/Commercial weights of class M Adjusting, testing and calibrating instrument for commercial scales, elevetor Adjustment, test and calibration instrument for coarse scales and for quality assurance for scales with a number of steps < 3.000. Weights for use in conjunction with:
Commercial scales and coarse scales. For scale learning and training. Load tests in elevator, crane and vehicle construction. All M classes depending on accuracy requirements as load authorities for tension, compression and torsion determinations.

Marking/Labelling according to OIML R111:2004 Weights from 1g to 500g are marked with their nominal value and the unit symbol "g" (e.g. "10 g").
Weights from 1kg and larger are marked with their nominal value and the unit symbol "kg" (e.g. "1 kg").
Additional marking of the class:
Class M1: "M" or "M1" Class M2: "M2" Customized Marking are applied to the upper side.

The manufacturer's mark may be applied to rectangular block weights of class M1 and to all weights of class M2 and M3.
To distinguish them, multiple weights of the same denomination in set compositions are marked by dots or stars.
In addition, a maximum of 5 user features (characters, letters and numbers) can be applied as a data matrix to clearly identify the weights as test or measuring equipment. These user features can be defined by the customer when ordering.
We produce and supply all kinds of weights as below. Besides, we also supply slotted weights, hook weights and customizes weights.

Class

Value

Milogram weight-standard test calibration weight

Gram weight-standard test calibration weight

Kilogram weight-standard test calibration weight

E1

1mg-20kg

1mg 2mg 2mg* 5mg 10mg 20mg 20mg* 50mg 100mg 200mg 200mg* 500mg

1g 2g 2g* 5g 10g 20g 20g* 50g 100g 200g 200g* 500g

1kg 2kg 2kg* 5kg 10kg 20kg

E2

1mg-50kg

1mg 2mg 2mg* 5mg 10mg 20mg 20mg* 50mg 100mg 200mg 200mg* 500mg

1g 2g 2g* 5g 10g 20g 20g* 50g 100g 200g 200g* 500g

1kg 2kg 2kg* 5kg 10kg 20kg

F1

1mg-1000kg

1mg 2mg 2mg* 5mg 10mg 20mg 20mg* 50mg 100mg 200mg 200mg* 500mg

1g 2g 2g* 5g 10g 20g 20g* 50g 100g 200g 200g* 500g

1kg 2kg 2kg* 5kg 10kg 20kg 25kg 50kg 100kg 200kg 500kg 1000kg

F2

1mg-1000kg

1mg 2mg 2mg* 5mg 10mg 20mg 20mg* 50mg 100mg 200mg 200mg* 500mg

1g 2g 2g* 5g 10g 20g 20g* 50g 100g 200g 200g* 500g

1kg 2kg 2kg* 5kg 10kg 20kg 25kg 50kg 100kg 200kg 500kg 1000kg

M1

1mg-1000kg

1mg 2mg 2mg* 5mg 10mg 20mg 20mg* 50mg 100mg 200mg 200mg* 500mg

1g 2g 2g* 5g 10g 20g 20g* 50g 100g 200g 200g* 500g

1kg 2kg 2kg* 5kg 10kg 20kg 25kg 50kg 100kg 200kg 500kg 1000kg

M2

0.5kg-10tons

500g 500g

1kg 2kg 2kg* 5kg 10kg 20kg 25kg 50kg 100kg 200kg 250kg 500kg 1000kg 2000kg 5000kg 10tons

IKLAY attaches great importance to trusting customer contact and personal support: We are quickly and easily accessible for our customers. On the phone, by e-mail or directly on site.
IKLAY responds to special customer requests with great flexibility. Even short-term deadlines can be reliably met thanks to well-stocked warehouses and committed employees.
Quality-According to the quality class (E, F or M), we only use high-quality materials. For the highest quality classes, only blanks are used that are made of the special stainless steel. This material convinces by an excellent density and homogeneity as well as by extremely low magnetic properties.
Quality inside and out: Iklay manufactures high-quality storage containers for the safe transport and long-term storage of weights.
We have 15 years experience in manufacturing test weights, and 10 years experience in exporting test weights, we exported test weights to Germany, UK, America, Canada, Australia, New Zealand, Peru, Chile, Vietnam, Thailand, Indonisia, Maylaysia...
To learn more, please send email to me, believe we will not let you down.
