Qizhi Easy Operate Internal Installed Pneumatic Flange End Facing Machines
| US$3,000.00-15,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
QZ860MM
Type
Vertical Lathe
Processing Accessory
Flange
Tool Holder
Single
Power Source
Pneumatic
Controlling Mode
Pneumatic
Automatic Grade
Manual
Setting Mode
Portable
Precision
High Precision
Certification
ISO 9001
Condition
New
Max. Processing Dia.
865mm
Min. Clamping Dia.
145mm
Max. Clamping Dia.
813mm
Tool Stroke
102mm
Rotating Speed
0-33rpm
Air Flow
1.8m3/Min
Suitable for
Flange Facing Machine
Transport Package
Woodencase
Trademark
QIZHI
Origin
China
HS Code
9031809090
Production Capacity
200sets Per Year
Product Description

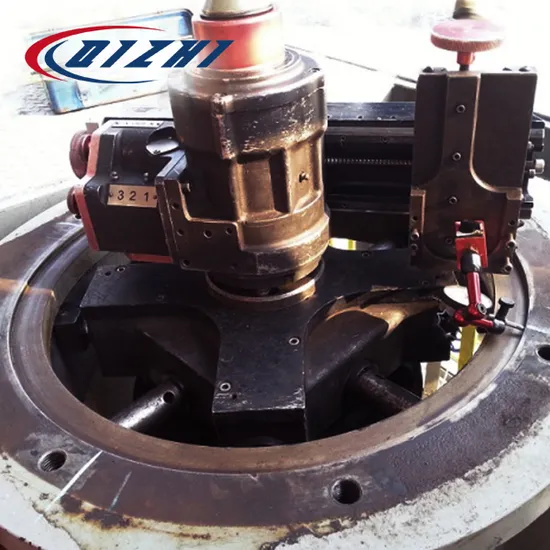

QIZHI Internal installed Pneumatic Flange Facing MachineThe internal and external installed flange end facing machines adopt innovative design, adopting new linear ball screw technology and power feed tool holders. It has below features: Easy to assemble Independent locking base After product delivery, it can be immediately used for standard flanges and sealing grooves processing. Specifications
| Model | Facing Range | Installation Mode | Drive Mode | ||
| Pneumatic | hydraulic | ||||
| QZ180MME | 0-7" | 0-185mm | External installed | * | |
| QZ300MME | 0-12" | 0-305mm | * | ||
| QZ600MME | 0-24" | 0-610mm | * | ||
| QZ355MM | 2-14" | 50-355mm | Internal installed | * | |
| QZ610MM* | 2-24" | 50-610mm | * | ||
| QZ860MM | 6-34" | 152-865mm | * | ||
| QZ1000MM | 6-40" | 152-1016mm | * | ||
| QZ1500MM | 12-60" | 305-1500mm | * | ||
| QZ2000MM | 24-80" | 610-2032mm | * | * | |
| QZ3000MM | 42-120" | 1067-3050mm | * | * | |
| QZ3500MM | 55-140" | 1270-3556mm | * | * | |
| QZ4000MM | 60-160" | 1524-4064mm | * | * | |
High torque and low noise transmission Both axial and radial automatic tool feeding Power type rotatable tool holder Quick assembly adjustable base clamp
