Plastic Recycling Plant Waste PP PE Film and Bags Hot Washing Machine

Product Description

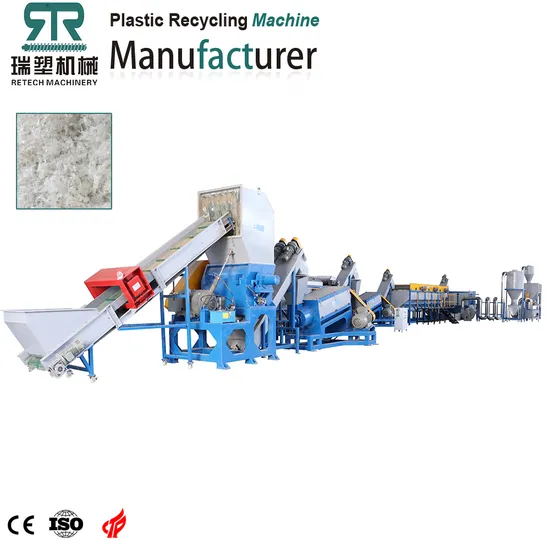

Plastic Recycling Plant Waste PP PE Film And Bags Hot Washing Machine
Retech is a globally active machinery corporation, specialized in developing plastics recycling machines and system components.We proud that provided our plastic recycling system solution to over 150customers in 35coutries over the world, such as Canada, American,Germany, Russia, Australia, Mexico, Chile, Brazil, Japan, Vietnam, Malaysia, Saudi Arabia, Egypt,Namibia, and so on.All of them are quite satisfied our quality and after service.
Product Overview
This Waste PP PE LDPE LLDPE film plastic washing recycling machine is designed and manufactured by RETECH, which is widely used for waste plastic PE/LDPE/LLDPE film, PP woven bag, PP Jumbo bag, etc.
The waste dirty material go through crushing, friction washing, cold washing, dewatering, hot air drying process will turn to be clean pieces for pelletizing.
The line can be displayed "L" or "U" shape according to clients' workshop.
We can also customize the washing line components according to client's material and product requirement.
Description:
PP PE plastic washing recycling machine is widely used to washing recycling the used PP/PE plastic soft plastic. Such like shopping bags, packing films, garbage bags, woven bags, non-woven bags and films. This recycling machine can crushing washing and drying the dirty soft plastic into clean film flakes.
After plastic film/bag flakes cleaned, you can make them into pellets/granules with next process, which called plastic pelletizing machine.
This production line is high automatic operating and low consumption, can save labor, save power and save water, easy to maintenance.
With advanced design, concepts and technologies to suit different status of waste plastic bags/films. This PP PE plastic recycling machine could layout as "L", "S" or "U" shape according different workshop.
Detail Description:
Plastic Film Washing line is designed for process and wash waste plastic thin film with contaminations.
New grinder rotor shape to crush film in higher capacity.
Film squeezer machine for ensure get a lower mosture.
Final film humidity in 3%-5%.
Easy operation with low consumption.
Quality Assurance:
Final film moisture between 3%-5%. Dry and clean.
Adopt world famous brand parts like Siemens motor Fuji Inverter, Famous Brand bearing ,SUS304 stainless steel, SKD-11 blades etc.
Product flowchart
The LDPE PP PE HDPE Film Washing Recycling Machine Processing:
1.Belt Conveyor 2.Wet Crusher 3.Screw Conveyor 4.Floating Washing Tank 5.Screw Conveyor 6.High Speed Friction Washer 7.Screw Conveyor 8.Dewatering Machine 9. 1st Drying System 10.Transition Silo 11. 2nd Drying System 12.Storager Silo 13.Electric Cabinet Product Specification

Type		RT300	RT500	RT1000
Capacity(kg/h)		300	500	1000
Energy consumption(KWH)		95	156	229
Installation power(KWH)		146	241	352
Dimension: L*W*H(m)		Depends on factory layout	Depends on factory layout	Depends on factory layout
Belt conveyor	Belt width(mm)	600	800	1200
	Motor power(KW)	1.5	2.2	3
Metal detector-Optional	Pass width(mm)	800	1000	1200
	Pass height(mm)	400	400	400
Crusher	Grind chamber(mm)	500*700	700*1000	/
	Motor power(KW)	55	75	/
Shredder	Grind chamber(mm)	/	/	/
	Motor power(KW)	/	/	75
Screw conveyor	Screw diameter(mm)	300	400	500
	Motor power(KW)	3	4	5.5
Washing tank	Dimension of tank(mm)	4000×1400	5000×1600	7000×1800
	No. of thumb-wheel(pcs)	4	6	7
	Discharge plate valve(pcs)	2ports*2=4	3ports*2=6	4ports*2=8
Friction washer	Screw diameter(mm)	300	400	500
	Motor power(KW)	11	18.5	30
Squeezing dryer	Screw diameter(mm)	/	320	410
	Motor power(KW)	/	55	75
Storage buffer	Storage capacity(CBM)	3	4	6
	Motor power(KW)	2.2	3	4
Waste water filtration device-Optional	Vibration screen size	800	1000	1200
	Screen mesh	40	40	40
Electrical cabinet	PLC controller	/	/	/
	Button type	/	/	/
Man power(person/shift)		3	3-4	3-4
Delivery time(day)		60-90	60-90	60-90
Warranty(month)		12months	12months	12months
Technical assistance		Egnineer available to service machinery overseas	gnineer available to service machinery overseas	gnineer available to service machinery overseas

Detailed Photos
1.Crusher
(1)Optimally designed blades are sharp and powerful;
(2)Enclosed cutting chamber to prevent materials flying out;
(3)Knives are externally adjustable;

2.Floating Washing Tank
(1)Unique reverse discharge method and scientific wheel combination, uniform discharge, no blocking.
(2)Flat-type wheel blade design, plus efficient crushing of crusher,no long material is generated, no material entanglement.
(3)Bottom screw drainage design makes daily maintenance more convenient.
(4)The transmission device is externally equipped with a protective cover. The level of the tank body is raised, no water & material splashes, keep the factory clean.
(5)Can design floating washer for sinking & floating materials co-use to meet customer's multi-purpose needs and save investment.
3.High speed friction washer
(1)Special blade arrangement, uniform dicharge, sufficient friction cleaning,high water utilization rate, effective removal of paper labels, and other impurities.
(2)Frame structure body, smaller vibration.
(3)Adopt high-speed heavy-duty bearings,stainless steel spindles,and blades,dynamically balanced.

4.De-watering Machine
(1)The integrated design of the dewatering machine and the fan, no need for a separate fan, which saves energy and enables smooth feeding and discahrging, no blocking.
(2)Adopt high-speed heavy-duty bearing, stainless steel spindles, and blades, dynamically balanced.
(3)Automatic screen cleaning device which is driven by air pressure, labor-saving.
(4)Adopt a container for collecting waster water &residue at the bottom.

5.Silo
(1) Easy to collect the final output material, can be customized to your use requirements, with hooks to hang the jumbo bag or other collection containers.
(2)Hydraulic cylinder design make full use of jumbo bag loading space.
(3)Each hook can bearing 500kg.
(4)Stainless steel inner to protect the final products quality.

6.Electrical Cabinet
(1)International brand Low voltage components
(2)Double circuit safety relay
(3)Intelligent and modular PLC controlling system

Our Machine:
Company Profile

Related products
Loading container

Sales Service
Installation / Debug / Training 1.We will arrange seasoned technician for equipment installation, debug and test production.
2.Our company offers technology training to the customer in his factory.
3.We promise that our goods are all new and not used.
After-sales Service 1.After checking, we offer 12 months as a quality guarantee, free offer wearing parts and offer other parts at the lowest price.
2.If you could not solve the problems, we will arrange a technician to your factory solving the problems.
3.After quality guarantee, we offer technical support and after-sales service.
