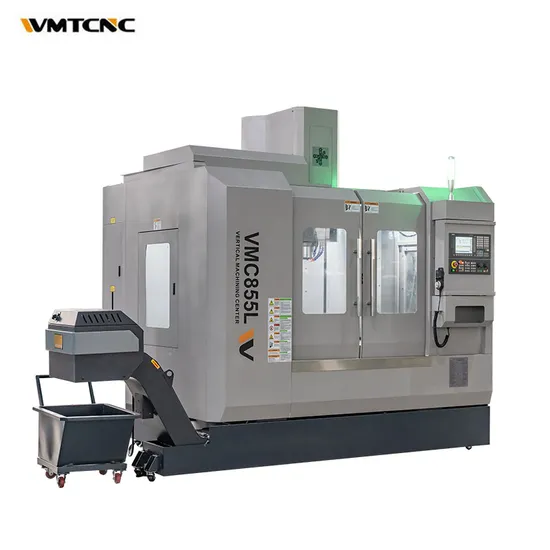

WMTCNC vertical machining center VMC855L cnc machine centers

WMTCNC vertical machining center VMC855L cnc machine centers

US$22,500.00 1 Piece (MOQ)

Basic Info.

Model NO.
VMC855L
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools, Metal-Forming CNC Machine Tools
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
High-End CNC Machine Tools
Certification
GS, CE, ISO 9001
Condition
New
CNC or Not
CNC
Name
cnc vertical machining center trade
Worktable Size
1000*550mm
X/Y/Z Axis Travel
800/550/500mm
Max. spindle speed
8000rpm
Spindle taper
BT40
After-sales Service Provided
Video Technical Support
Function
vertical milling machine
Transport Package
Exporting Case
Specification
5500kg
Trademark
WMTCNC
Origin
Anhui, China
Production Capacity
100 Sets/ Month

Product Description

Product Description
WMTCNC vertical machining center VMC855L cnc machining centers main features: 1. Robust construction for efficient machining.
2. Integrated coolant system.
3. Chip conveyor and purge system foroptimum chip removal.
4. Easy accessibility of work table for easy setup and tooling.
5. Enclosed work space ensures safe and contamination-free work.
Specification VMC855L
Worktable
Worktable size (L×W) 1000×550mm
T-slots size (N×W×D) 5-18x90mm
Travel
X/Y/Z axis travel 800/550/500mm
Machining range
Distance from spindle center to column 595mm
Distance from spindle nose to worktable surface 120-670mm
Spindle
Spindle taper BT40
Spindle power 7.5kw
Max. spindle speed 8000rpm
Feed
Max. feed speed 10m/min
Rapid feed speed (X/Y/Z) 24/24/20m/min
Ball screw (diameter+lead)
X/Y/Z axis ball screw 4016
Tool magazine
Tool magazine capacity 24T
Max. length of tool 300mm
Tool change time 1.5s
Positioning accuracy (National standard)
Positioning accuracy (X/Y/Z) ±0.005mm
Re-positioning accuracy(X/Y/Z) ±0.003mm
Machine dimension
L×W×H 2800×2300×2300mm
Machine weight
Max. loading of worktable 600kg
Machine weight 5500kg

Detailed Images
Company Profile
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: Sorry, most of our machines don't have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4: What's the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.
