Durable and Rust-Resistant Argon Gas Storage Cylinders for Welding and Industrial Purposes

Product Description

Product Description ISO 150bar 200bar TPED 2L/5L/8L/10L/15L/20L/40L/47L/50L/60L/67L /68L/80L Medical and Industrial Steel Seamless Hydrogen/Carbon Dioxide/Argon/Oxygen Mixed Gas,etc Cylinder.
Product Description

Company	Guida	Outside diameter	89-314mm
Water capacity	0.8-80L	Height	197-1705mm
Working pressure	150-300Bar	Weight	1.6-80kg
Test pressure	250-450Bar	Place of Origin	Shandong,China
Design wall thickness	1.9-6.0mm	Material	37Mn/34CrMo4
Storage gas	1-15m³	Cap/Head Protection	Tulip Cap, Common Cap, Semi-circle cap
Manufacture Executive Standards	ISO9809-1(TPED),UN ISO9809-1,GB/T5099.1,ISO9809-3
Cylinder Color	Green, Black, White, Blue, Yellow, Grey,Red,Customize as demand
Filling medium	Air,Oxygen Gas,Hydrogen Gas,Carbon Dioxide Gas, Argon Gas, Nitrogen Gas, Helium Gas, Carbon Monoxide Gas, SF6 Gas, N2O gas, Air, Specialty Gas,Mix Gas etc..
Packing	1.Bulk loading; 2.Plastic woven net; 3.Wooden pallets; 4.Carton; 5.As required.

Product Parameters

Cylinder Model	Diameter (mm)	Volume (L)	Height (mm)	Weight (kg)	Working pressure (MPa)	Wall thickness (mm)	Cylinder material
2L steel cylinder	140	2.5	300	5.5	15	3.6	37Mn
3L steel cylinder	140	3	345	6.1	15	3.6	37Mn
4L steel cylinder	140	4	395	7.1	15	3.6	37Mn
8L steel cylinder	140	8	680	11.5	15	3.6	37Mn
10L steel cylinder	152	10	710	13.5	15	4	37Mn
15L steel cylinder	152	15	1020	18.5	15	4	37Mn
20L steel cylinder	219	20	715	28	15	5.7	37Mn
25L steel cylinder	219	25	865	33	15	5.7	37Mn
30L steel cylinder	219	30	1015	38	15	5.7	37Mn
35L steel cylinder	219	35	1165	43	15	5.7	37Mn
40L steel cylinder	219	40	1315	48	15	5.7	37Mn
50L steel cylinder	219	50	1615	58	15	5.7	37Mn

Detailed Photos

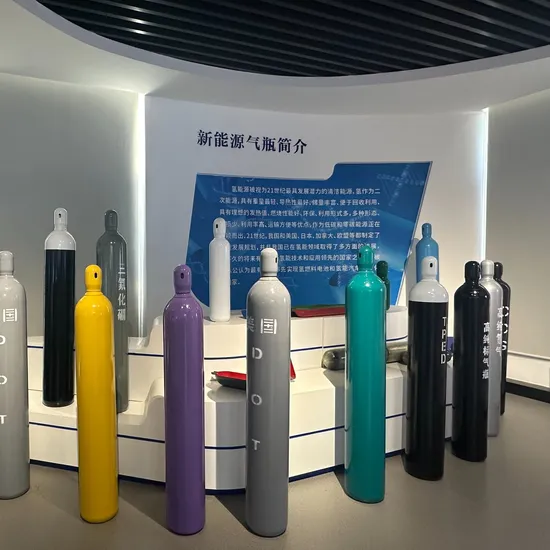

Different colors of gas cylinders(Can be customized as required)
Factory warehouse real shot pictures
Some valves,caps,neck collars,trolley for your reference.
Cylinder Manufacture Process
1,Overall punching method:
Billet sawing and cutting - induction heating - reverse extrusion punching - drawing - edge trimming - closing - heat treatment - external sandblasting - mouth thread processing - internal sandblasting (or phosphating) - water pressure test - valve installation - air tightness test - plastic spraying - drying - inspection - storage
2,Steel pipe spinning method:
Steel pipe sawing and cutting - induction heating - spinning bottom sealing - milling inner bottom - induction heating - spinning end closing - heat treatment - sandblasting - mouth thread processing - internal sandblasting (or phosphating) treatment - water pressure test - valve installation - airtightness test - plastic spraying - drying - inspection - storage
Packaging & Shipping
Company Profile
Qingdao Guida Special Gas Co., Ltd. is a technology-oriented enterprise that integrates the production of high-purity gases, mixed gases, standard gases, and special gases. Since its establishment, the company has always adhered to "preparedness, humanity, and technology" as its core competitiveness. The company has technical strength, production equipment, and perfect preparation technology and modern detection methods, and has a strong and well-trained technical production team. And in practice, it constantly summarizes production technology experience, thus continuously developing new products and technologies.
The company's precise measurement equipment and large-scale analysis instruments are used for the configuration of various standard gases and mixed gases. They have the characteristics of high precision and small errors. The company strictly follows the national safety specifications and technical standards to organize production, and its products are sold all over the country, providing high-purity ammonia, high-purity nitrogen, high-purity hydrogen, high-purity argon, high-purity krypton, high-purity xenon and other pure gases, as well as twenty-plus series and thousands of standard mixed gases, which have won the unanimous praise of users.
The company will rely on its excellent technology, satisfactory service and quality products to ensure a sufficient, timely, stable and reliable supply of gases.
The company will provide sincere service of "meeting the needs of users, answering the doubts of users, and solving the difficulties of users" to meet the needs of customers.
Main products: standard gases, mixed gases, high-purity gases, agency for various types of gas cylinders, gas pressure reducers, liquid nitrogen, liquid argon tanks, laboratory equipment, etc., and undertakes the design and installation of laboratory gas pipelines.
Certifications
Our Advantages

High Quality with Reasonable Competitive Price

We manufacture with strict and complete quality control system, and all products are strictly inspected before shipment. Besides, we use advanced technique to reduce any possible cost without lowing quality standard to provide our customers competitive price.

Fast Delivery Time

Annual Output of 800,000 pcs and near Qingdao seaport which is one of the biggest seaport of China.

Excellent Professional Service(24 hours Service Support)

We are always good at providing solutions and services to be your trustworthy partner.

OEM/ODM ACCEPTED

Color, Valve, Cap,Handle, Marks etc.

FAQ
Q1: What is the capacity of this gas cylinder?
A1: We can supply capacity from 0.8L to 80L.
Q2: What is the delivery time of this gas cylinder?
A2: The delivery time of 40L gas cylinder is 15 days after the deposit received.
Other specifications need to be negotiated,usually about 20-30 days.according to the production plan.
Q3: Payment method accepted?
A3: TT,L/C,West Union,Paypal or any other ways.
Q4: What kind of certification do you provide?
A4: We can provide clients TPED, CE and TUV certification.
