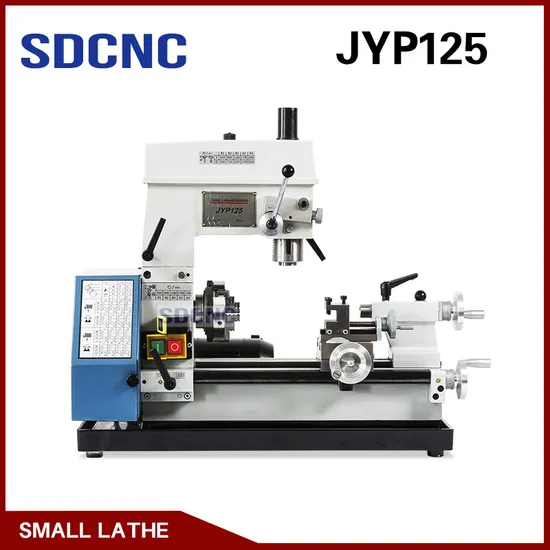

Jyp125 Manual Combo Mini Mill/Drill Combo Lathe Machine Multipurpose Drilling Lathe
| US$600.00-800.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
JYP125
Type
Horizontal Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Manual
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Floor-type
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Product Name
Heavy Duty Lathe Machine
CNC or Not
Nomal
Core Components
Bearing, Gear, Motor
Name
Small Lathe
Transport Package
Wood Packing
Specification
57*35*57
Trademark
SDCNC
Origin
Shandong China
Packaging & Delivery
Package Size
57.00cm * 35.00cm * 48.00cm
Package Gross Weight
35.000kg
Product Description
Product Application This machine can turning ,drilling round bar work piece,process out circle ,inner bore ,cutting ,threading , drill hole ,reaming ,popular with small Workshop ,development,DIY hobby ,school for training .
Main Features
1) most economic ,widely useful household machine.
2) V-way bed is precision ground,bed surface super hardened.
3) Spindle is supported by precision tapered bearing.
4) Lathe headstock is constantly oiled during operating.
5) Longitudinal axis power feed for threading .
1.most economic ,widely useful combination machine .
2.V-way bed is precision ground
3.Spindle is supported by precision tapered bearing
4.Lathe head stock is constantly oiled during operating
5.Belt drive mill head get quiet operation
6.Mill head can be titled +-90 degree
7.Power longitudinal feed follow threading
8.Adjustable gibs for slide ways
9.Equipped with lead screw cover and work table
10.Change gear has large feed and threading function
11.Tail stocks can be off set for turning tapers
Product Parameters
| Turning function | Maximum workpiece rotation diameter on the bed | 125mm |
| Maximum workpiece length | 180mm | |
| Maximum workpiece rotation diameter on the tool holder | 60mm | |
| Spindle through hole diameter | 9mm | |
| Spindle taper hole | MT.1 | |
| Number of metric threads processed | 8 | |
| Machining metric thread pitch range | 0.4-1.5mm | |
| Number of inch threads processed | 8 | |
| Processing inch thread pitch range | 0.0028-0.005 1/n'' | |
| Longitudinal feed level | 2 | |
| Longitudinal feed amount of tool holder per spindle revolution | 0.07-0.14mm | |
| Tailstock sleeve travel | 18mm | |
| Tailstock sleeve tapered hole | MT.1 | |
| Spindle speed range and series | 560-2500 r/min 5steps | |
| Motor Power | 120W | |
| Drilling and milling funtion | Maximum drilling diameter | 6mm |
| Distance from spindle end face to worktable | 180mm | |
| Distance from spindle centerline to column surface | 125mm | |
| Rotation angle of the main drilling and milling head box around the column | 360° | |
| Spindle speed range and series | 500-2500 r/min 10steps | |
| Drilling and milling head box vertical lifting stroke | 60mm | |
| Working surface length and width | 85*60mm | |
| Workbench T-slot width | 8mm | |
| Spindle sleeve movement amount | 40mm | |
| OTHER | Weight | 22/25kg |
| Machine size | 52*30*41cm | |
| Packing size | 57*35*48cm |
