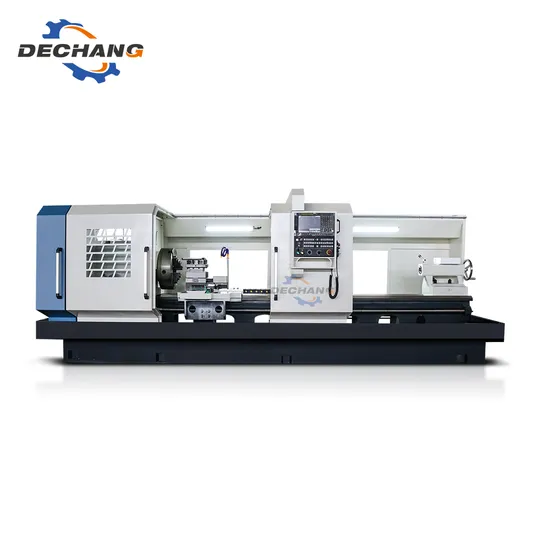

Qk1325 China CNC Big Hole Flat Bed Pipe Threading Oil Country Lathe Machine

Product Description

Qk1325 China CNC Big Hole Flat Bed Pipe Threading Oil Country Lathe Machine
Product Description
CNC PIPE THREADING LATHE INTRODUCTION
This series CNC pipe threading lathe is mainly designed for processing internal and external pipe threads including metric, inch, module DP and taper threads, as well as having all the common functions of normal CNC lathe such as processing the inner bore and end face of shafts and disks. This series lathe machine is widely used in industries including petroleum exploiting, minerals mining, chemical piping and geological prospecting, it is high-efficiency equipment in processing and repairing drilling pipe, drilling rod, thread coupling and so on.
FEATURES
Big spindle bore and double chuck to ensure process big diameter pipe
One-piece bed adopts high strength iron to ensure rigidity and precision
Ultrasonic frequency quenched guide-ways ensure good wear-resistance
Carriage and guide way contact surface use Turcite B to maintain accuracy
Specifications:

SPECIFICATIONS	Units	QK1325
Swing over bed	mm	800
Swing over cross slide	mm	480
Distance between centers	mm	1000/1500/3000
Bed width	mm	600/650
Max.load capacity	T	4
Spindle bore	mm	255
Pipe threading range	mm	70-250
Spindle speed steps	-	2 steps VF
Spindle speed range	rpm	15-100, 100-350
Chuck		φ630 4 jaw manual
Tool post	-	Electric 4 position
Tool shank size	mm	32*32
X axis travel	mm	420
Z axis travel	mm	750/1250/2750
X axis rapid traverse	m/min	4
Z axis rapid traverse	m/min	6
Tailstock quill diameter	mm	φ120
Tailstock quill taper	-	MT6
Tailstock quill travel	mm	290
Main motor power	kw	15
Coolant motor power	kw	0.125
Machine weight(1500mm)	T	7/8
Overall dimension (L*W*H)(1500mm)	m	4200*2100*1900
