Portable Handheld Laser Engraver for Big Metal Parts Moving Hand Marking Painting Engraving Automobile Parts Bearing

Product Description

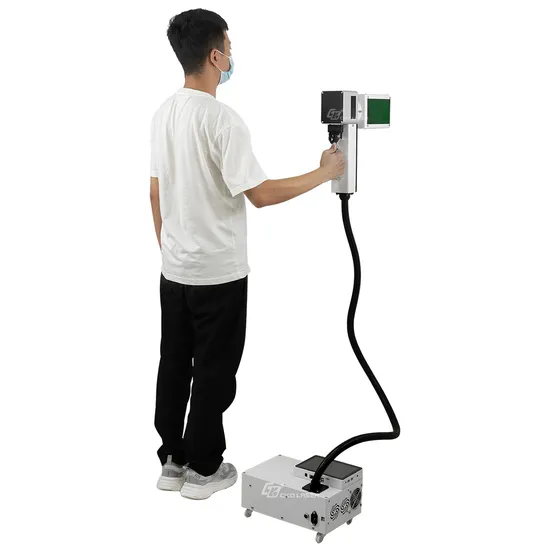

CKD-PLMD-20, V22.05 is a portable moving fiber laser marking machine. Put the focus holder of marking head on material, press the button on the handle of the marking head, the laser will mark set content on the surface of the material quickly.
V22.05 version is much smaller and lighter weight, the moving the whole machine is only 13Kg, and the cabinet is with wheels to easy moving.
The touch controller is installed on the cabinet of the machine, much easily operation for moving marking work.
APLICATION:
CKD-PLMD-20, V22.05 solve the problem of heavy or huge material logo marking, the material doesn't have to move to put under the marking head, manually put the marking head on the material flexibly.
EASY OPERATION: Set parameter by the touch controller on the surface the cabinet of the machine. Put the focus holder on the material. Press the button on the handle to mark. The whole process does not need focus adjustment, the user does not need to walk away to set parameter on a separated touch controller, never worry about the signal transmission problem from touch controller to machine.
On the holder, the user can choose acrylic if they have laser protect goggles, or choose laser protect glass, which is professional OD4+, protective wavelength 200-450 & 800-2000nm.
After moving the focus holder, CKD-PLMD-20, V22.05 becomes a simple laser cleaning machine, it can clean the oil contamination, rust, coating, smudging and so on.
Touch controller built-in the machine.
Three ways to control, optional: Windows touch computer Professional touch controller for laser Mobile phone
Easily edit by phone, support marking of vector, text and photo.
Start these functions after adding a Z-axis column to get a static laser marking machine.
Whole machine is only 13Kg.
CONFIGURATION

Type	Unit	Data
Laser power	W	20
Focus way		Focus holder
Total power (maximum)	W	300
Net weight	Kg	13
Optional	Controller	Optional	Software	Remark
		Without	EzCad2	Use your own computer
		Touch computer	EzCad2	Built-in
		Touch computer	Simple Marking	* Built-in. * Support phone control
	Marking scope	Unit	Scope	Remark
		mm	70*70	The smaller the bigger energy
			100*100
	Laser source	Optional	Pulse width	Remark
		Q-switched	Fixtied
		MOPA	Adjustable	Support color marking, process more kind of materials
