Pop Boba/Milk Tea Crystal Ball /Bubble Milk Tea/Milk Tea Batching /Boba Milk Tea Machine/Pearl Milk Tea Batching Machine Milk Tea Pearl Making Machine

Product Description

Product Description
Milk tea drink crystal ball, also known as Crispy Bobo, originated from Taiwan, China. It is a transparent dessert made of natural hydrocolloid and natural dietary fiber as the main raw materials. It can be directly added to milk tea, coffee, juice, smoothies and other beverages. Medium, chewy, tough and crispy in taste, it has become a popular ingredient in new tea drinks.
The milk tea beverage crystal ball production line includes gel and sugar water preparation equipment, crystal ball molding equipment, filling and filling equipment, pasteurization and cooling equipment, labeling and boxing equipment, etc. Our company can customize and design a complete solution according to customer requirements --- Including process confirmation, equipment layout, installation and commissioning, as well as product formula and raw material supply, we provide a package of turnkey projects. The 1 ton/hour crystal ball project is guaranteed to be completed within 100 days from project establishment to production, eliminating the communication and coordination of multi-party equipment supply and the trial and error costs caused by process formula testing, greatly shortening the product launch cycle, and is especially suitable for crystal balls, a manufacturer of milk tea beverage raw materials. The project reached production quickly.

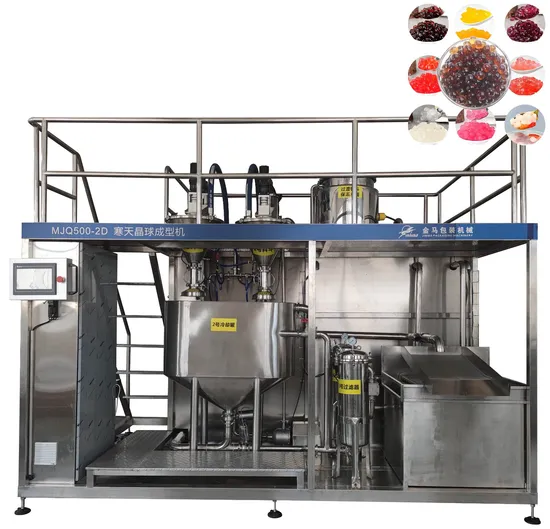

MJQ500-2X series crystal ball forming machine is a patented product developed with great concentration by Jinma Company. It is an exclusive high-efficiency crystal ball production equipment on the market. It has large output (1 ton/hour single machine), small area (10 square meters), five With the characteristics of quick change of specifications in minutes, easy operation and cleaning, the product was fully recognized by the market as soon as it was launched. After years of optimization and iteration, JinMa's latest crystal ball forming machine has become the industry's first choice.
The picture below shows the position of the milk tea crystal ball forming machine in the production line. When purchasing separately, you need to consider the equipment and supporting auxiliary equipment required in the front-end process and back-end work.
Equipment composition:
A. Insulation tank: It is heated by a thermocouple and circulates water to the insulation hopper. It is equipped with a temperature sensor.
B. Insulation hopper: a conical hopper that stores materials and provides insulation function.
C. Forming small conical bucket: a conical bucket that connects the screw sleeve and the forming head, and insulates the materials in the process.
D. Touch screen: The operation of the entire machine is controlled by PLC and can be operated manually.
E. Forming head: the final forming device of the crystal ball.
F. Transition tank: a tank where the formed crystal balls are stored and cooled.
G. Cooling coil: The crystal ball passes through the coil, and the length of the coil and the cooling circulating water inside are used to cool the crystal ball.
H. Forming head lifting device: During the cleaning and installation process of the forming head, the lifting device can be raised, which facilitates the installation of the forming head.
I. Chiller: Provides cold water circulation for the entire machine and maintains the water temperature of the entire machine.
J. Solid-liquid separation frame: After the crystal balls pass through the coil, the solid-liquid separation frame sends the crystal balls out of the machine, and the mixed cooling water is recycled and reused.
K. Water tank (temporary storage tank): The water circulation collection point of the whole machine.
Features:
1. It integrates a sandwich insulation hopper, crystal ball extrusion and shearing, molding calcified water filtration and cooling cycle, solid-liquid separation, and an insulated hot water tank. The continuous flow of glue will continuously output the crystal balls.
2. Two sets of molding and one set of calcification and cooling systems. The crystal ball extrusion speed and shearing time can be set separately to correspond to the production of products of different specifications.
3. The jacketed insulated hopper, screw pump (servo + reducer drive), quick-fit molding head, and cylinder shearing mechanism constitute the core components of the crystal ball forming machine. They are made of materials that meet food hygiene requirements and are heat-resistant, wear-resistant, and stable. Good sex. The modular molding head and quick-installation fixed structure can achieve quick cleaning; changing different molding molds can be used for the production of crystal balls of different specifications.
4. Water tank (with solid-liquid separation screen), stainless steel centrifugal pump, double filter (80 mesh bag), calcification tank, coil pipe, valve and pipeline form a calcification liquid circulation system, from colloid shearing to crystal ball outflow, The calcification cooling time can be adjusted from 1 to 3 minutes corresponding to different liquid level differences. The concentration of calcification solution continues to decrease with continuous production, and it needs to be added manually at regular intervals.
5. Comes with hopper jacket insulation water tank and circulation pump, generally controlled at 70°C.
6. Touch screen operation interface, PLC control, automatic cooling and insulation water temperature detection and control, automatic detection and alarm for water tank shortage and filter clogging.
7. Use jacketed coil cooling, equipped with a chilled water circulation pump, circulation flow: 20-25m3/h, chilled water temperature: 7-12°C. (Note: Chilled water is provided by the customer)
Aplication:
Milk tea drinks crystal ball

Detailed Photos

Product Parameters

Overall dimensions	3550*2300*2700mm
Weight	1550 kg
Power supply	hree-phase 380V, 50Hz, 25KW
Yield	1 ton/hour

Company Profile
ChangeZhou Jinma is an equipment manufacturer: focusing on the development and sales of automated production and packaging equipment for innovative ingredients (Hantian crystal balls, sandwich popping beads, etc.) in the beverage industry.
Jinma provides overall solutions: providing customers with customized overall solutions including workshop layout design, formula, process, equipment installation and commissioning and training.
Jinma is a high-tech enterprise: established in 2014, and was rated as a high-tech enterprise in 2019 and 2022.
Patented Technology Certificate

After Sales Service
Technical Support
1. Customised machine;
2.Customized layout drawings;
3.Commissioning and installation before delivery;
4.Overseas engineers to install and debug ,Training ;
5.Formula debugging;
6.Upgrading and transformation, make your equipment back to a better state and solve the problem of insufficient output;
7.24-hour online technical support and service.

FAQ
Q:Are you a factory or trading company ?
A:We are a factory specializing in manufacturing, R&D, and have our own foreign trade rights and production equipment.
Q:Could you please send me your best price?
A:Yes, we cherish every cooperative customer and work hard to facilitate transactions.
And before quoting,please kindly consult us and provide:
Your expected capacity for machine.So that we can recommend the most corresponding machine.
Q:When is your delivery time ?
A:Single machine:30-45 working days.Production line:60-75 working days after 30%-50% deposit received.
Q:When is your payment term ?
A:Payment shall be 30%-50% deposit by T/T,balance 50%-70% paid by T/T,D/P after inspection but before shipment.
Q:Can you make machines based on customer's design ?
A:Yes,we can customized. According to your special request,we can design solution and provide service scheme.
Q:How to handle the installation and test for machine?
A:Our engineers are available to service overseas to install and train local staff.Specific arrangements will be explained clearly in each quotation.
Packaging and shipping:
Wooden box---solid wood or multi-layer wood,What materials to use are determined based on the actual situation.
