Brc Wire Mesh Welding Machine/Mechanical Type

Product Description

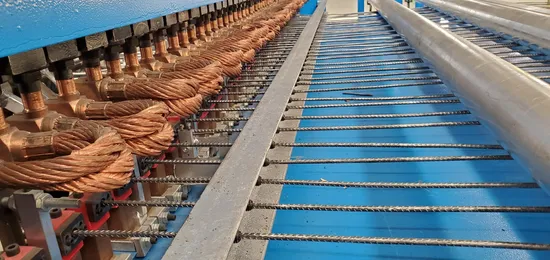

BRC Wire Mesh Welding Machine/Mechanical Type

This machine is composed of Round wire racks, welding mechanism, longitudinal bar feeding mechanism horizontal bar feeding mechanism, servo pulling net mechanism, Coil machine, pneumatic system, electrical control system, cooling system and other components.

1.Control system: brand name PLC program+ touch screen.
2.Wire feeding system: longitude wire from wire coils; cross wire-hopper device with step motor.
3.Cooling system: casting water-cooling transformers.
4.Mesh pulling system: Panasonic (Japan) servo motor for pulling mesh.

(1) Raw Materials
(3) Main Componrnts:
Main Parameter:

Welding wire diameter	Φ3.0-6.0mm or customized
Maximum width	2500mm or customized
Wire of longitude wire wire	48 pcs or customized
Transformer	150KVA×6pcs or customized
Welding mesh	50*50-300*300mm
Machine size	5.7X3.2X1.7m
Machine weight	6.0T
Welding speed	0-70 times / min (related to wire mesh)
Net drawing mode	mechanical net drawing
Power supply	3 phase 380V±10% 50HZ/machine has transformer to change 415v to 380v
Transmission power	4KW (electromagnetic brake motor)
Welding power source	50 Hz / 380 V (distribution transformer capacity ≥ 125 kVA)
Factory transformer	not less than 100KVA
welding wire	3 pieces of 180mm2 aluminum wires (the distance between the equipment and the power transformer is less than 100m)
Welding method	SCR synchronous control resistance welding
Longitude feeding mode	coil feeding equipped with straightening device
Welding time	10ms~100ms
Pressurization mode	Change the length of the tension bar of the pressure beam and the compression of the upper electrode spring
Latitude wire feeding mode	pre straightening and automatic feeding from hopper by cutting horizontal line
Raw material	galvanized / black wire, low carbon steel wire

Spare Parts :
Packing and Shipping
After Sale Services
1.We are always providing cutomers with not only the excellent solutions of steel wire prodction line, best related equipment, also free technical services on the steel wire production line.
2.If you have any questions in the process of producing steel wire , or about steel wire production line, please feel free to contact us any time. our solutions and quotations will be sent out to you soon to meet your special requirments.
3.Welcome to visit our factory and wire drawing production line.
4.Engineers available to service machinery overseas. free training to how to install the machine, how to use the machine, online support.
5.Low charge for continue maintenance when the warranty is expired.
