CNC Drilling and Boring Machine for Deep Hole Cylinder

Product Description

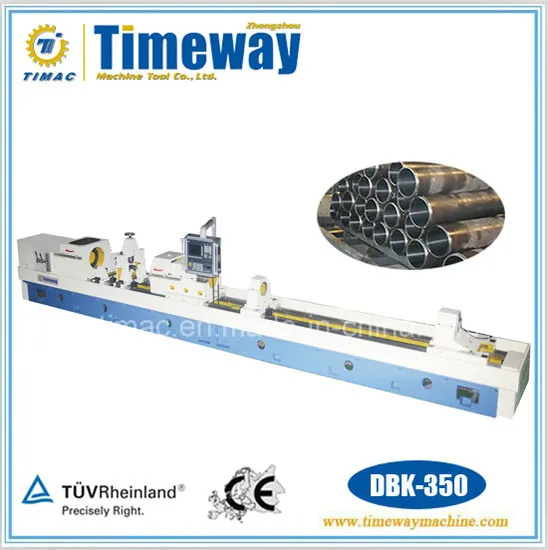

Large CNC Horizontal Cylinder Deep Hole Drilling and Boring Machine
DBK-350 DBK-350A

Machine Summary:
*CNC deep hole drilling and boring machine is mainly for the processing of cylindrical workpiece. This machine can perform the process of drilling, boring ,expanding and roller burnishing, etc.
*The machine is equipped with CNC system. Besides machining through-hole, it can also process step hole and blind hole, etc.
*This machine is widely used in production of special cylinder, cool cylinder, hydraulic machinery, high pressure boiler tube, petro, military, electrics and airspace industries.
Performance and Features:
*THe deep hole drilling and boring machine is specially designed for the processing of cylindrical workpiece. The headstock drives the workingpiece rotating and the tool keeps feeding.
*It can perform the process of boring, expanding and roller burbishing, etc. The machine is assemnled with PLC control system. Besides machining through-hole, it can also process step hole and blind hole.
*When boring, the coolant is supplied by the oil feeder or through the end of boring bar, the chip is pushed forward out of headstock end.
*The main compents and parts of the machine are made of high strength cast iron including bed body, feed carriage, box, oil feeder body and support body, etc, which ensure the machine with enough rigidity, high strength and precision retaining ability.
*The guide track is treated by hardening technology and has the excellent wear-resistance and high accuracy. The feeding of the tools adopts AC servo motor to realize stepless speed regulation. The headstock spindle uses multi-gear to change the speed in a wide range.
*The oil feeder can be moved and positioned along the bed body, and maintain the constant clamping force to the workpiece. The moving and clamping of oil feeder is achieved by AC servo motor driving the screw transmission system. The hydraulic system has a good control when clamping and fixing the workpiece, which makes the operation is very safe, rapid and stable.
*DBK-350 is equipped with workhead box, but isn't equipped with boring box or drilling box; DBK- 350A add to boring box or drilling box on the basis of the DBK-350, so higher efficiency machining deep hole for cylindrical workpieces.
Technical Parameters

Specifications	Units	DBK-350	DBK-350A
Drilling diameter range	mm	/	Φ30-Φ100
Boring diameter range	mm	Φ60-Φ350	Φ60-Φ350
Boring depth range	m	1000-15000	1000-15000
Workpiece clamping dia. range	mm	120-450	120-450
Spindle center height	mm	450	450
Headstock spindle hole dia.	mm	Φ75	Φ75
Spindle front taper hole dia.	mm	Φ85, 1:20	Φ85, 1:20
Spindle speed range	r/min	60-1000(12 steps)	60-1000(12 steps)
Drill box motor power	kw	/	22
Drill box spindle hole	mm	/	Φ75
Drill box front taper hole	mm	/	Φ85, 1:20
Drill box speed range	r/min	/	40-670(12 steps)
Feed speed range (stepless)	mm/min	5-3200(stepless )	5-3200(stepless )
Feed carriage fast moving speed	m/min	3.2	3.2
Main motor power	kw	30	30
Hydraulic pump motor power	kw	1.5	1.5
Carriage rapid motor power	kw	3	3
Feed motor power	Nm	36	36
Cooling pump motor power	kw	5.5 (4 groups)	5.5 (4 groups)
Cooling system rated pressure	MPa	2.5	2.5
Cooling system flow	L/min	100, 200, 300, 400	100, 200, 300, 400
Hydraulic system rated pressure	Mpa	6.3	6.3
Max. axial force of oil feeder	KN	6.3	6.3
Max. clamping force of oil feeder	KN	20	20
CNC system		Siemens 808 or KND

Headstock
It can Choose 12 Steps speed changing or speed variable stepless. The CNC system is equipped with GSK or SIEMENS or FANUC or other CNC system.
