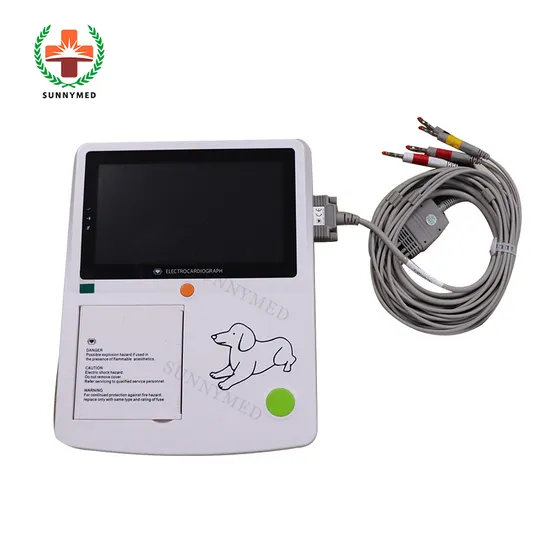

Sy-W002 High-Efficiency Three-Channel Electrocardiogram Portable Veterinary ECG Machine

Product Description

SY-W002 High-Efficiency Three-Channel Electrocardiogram Portable Veterinary ECG Machine Product Description Features of 3 Channel Veterinary ECG Machine: 12 lead ECG synchronous sampling system. Thermal printer with 80mm print paper, synchronization print. 7" color touch-screen, both push-button and touch operation. Automatic measurement, calculation, analysis, waveform freezing. Support USB flash disk & SD memory. Data transmitting to PC via RS232/USB. Patient's information can be input. Historical data can be reviewed and printed. Built-in rechargeable li-ion battery,AC/DC power conversion. Sleep mode to save energy and extend TFT screen life. Portable design with hidden handle, convenient to carry. Lead off & lack off paper detection function. 7 level printing thick can be chosen.

Items	specification
Features	7 "display touch screen Support Ecg analysis capabilities
Lead	standard 12 leads
lead acquisition	synchronously 12 leads
Filter	AC, ECG filter
Sensitivity	5 mm/mV, 10 mm/mV, 20 mm/mV
Paper speed	12.5 mm/s, 25 mm/s, 50 mm/s
Recording paper	Thermal recording paper
LCD display	7" color touch screen
Recorder	High resolution thermal printer
Battery	200mAh Li-ion battery
Power supply	AC: 100~240V, 50/60Hz, 30VA~100VA
Fuse	AC220V±10% 2*Φ5×20mm,T2A/250V AC time lag

Detailed Photos
Our Advantages
FAQ Q: How to purchase your products ?
A: You can contact with us and purchase from our company directly. Normal procedure is: offer, sign contract, payment and shipment.

Q: What's the warranty for the products ?
A: The free warranty is one year from the date of commissioning qualified. However, we will still provide good after-sales service after warranty period.

Q: Can we visit your factory ?
A: Of course, welcome to visit our factory if you come to China.

Q: How long is the validity of quotation ?
A: Generally, our price is valid within one month from the date of quotation. The
price will be adjusted appropriately as the price fluctuation of raw material in
the market.

Q: What's the production date after we confirm the order ?
A: This depends on the quantity. Normally, for the mass production, we need about
7-10 days to finish the production.
