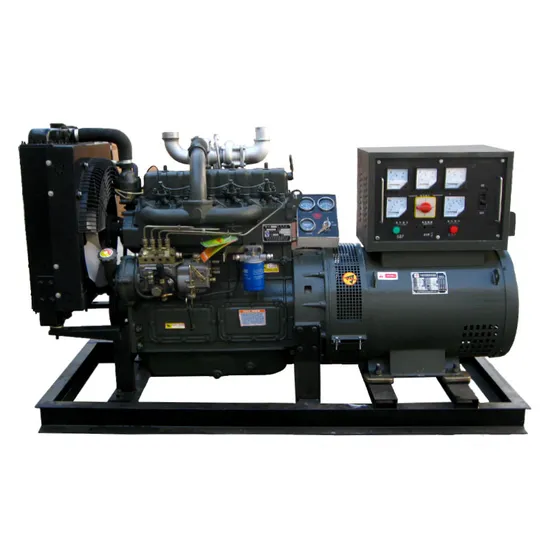

Electricity generation 40KW Power Generator Set for Industrial Use

Product Description

Product Description

Technical specification parameters of 40KW series diesel generator set
Unit model	YAG-40GF	Rated power	40KW
Rated output voltage	110-480V	Rated power factor	0.8
Rated current	72A	Insulation grade	H
Rated speed	1500/1800rpm	Protection grade	IP22
Rated frequency	50/60HZ	Overall dimension	1800*700*1200 mm
Voltage Control Methods	AVR	Overall weight	550KG
Technical specification parameters of diesel engine
Brand	YAG	Model	K4100ZD
Cylinders	4	Speed	1500/1800rpm
Bore * stroke	100*115 mm	Power	41KW
Displacement	3.6L	Fuel consumption rate	209g/kwh
Type	Straight line, four stroke	Lubrication mode	Pressure and splash type
Intake mode	Turbo charged	Start-up mode	12V DC electric start
speed regulation	Mechanical speed regulation	Cooling mode	Closed water cooling
Technical specification parameters of alternator
Rated power	40KW	Type	Brushless
Insulation grade	H	Protection grade	IP22/23
Phase	3-Phase,4-wire	Voltage Control Methods	AVR

Detailed Photos
Quality & Testing
1. All the raw materials/parts by IQC (Incoming Quality Control) before launch into process.
2. Each generator/part under control of IPQC (Input Process Quality Control).
3. Each generator/part must be pass 100% inspection between process.
4. All-sided ex-factory testing in various condition (Outgoing Quality Control).
Advantages
1. Ten years dedicated in diesel generator with rich experience.
2. 7-15 days quick delivery, annual output 50,000 sets.
3. Competitive price, huge material/parts sourcing, large scale production.
4. Lower noise 70-73 db at 7 m, super silent as 60-65 db at 7 m.
5. Spare parts and consumable service available.
6. Customized & OEM available.
7. One stop and 7x24 service.
8. Excellent technical support and service.
Company Profile
Weifang YAG Power Technology Co., Ltd. is a professional manufacturer of diesel engine, generator set and alternator which is integrated research and development, production, sales and service.
The company covers an area of 50000 square meters, the workshop 30000 square meters, owns 5 diesel engine production lines, 3 generator set production lines, 2 alternator production lines, and 2 spare parts production lines. The annual production capacity of the company is 15000 diesel engines, 12000 motors and 10000 diesel generating sets.
The company mainly produces Ricardo series diesel engines, which can be widely used in generator sets, construction machinery and other fields.
The generator set ensures the reliable quality of the generator set through the careful assembly and strict inspection. The generator set can also be assembled with engines and alternators of well-known brands.
The company's products before delivery, through strict testing, to ensure that each product quality qualified.
Through unremitting technical innovation, the company has also achieved fruitful results in many fields such as product noise reduction, energy saving, environmental protection and durability etc., and has been in a leading position among domestic generator set manufacturers in the same industry.
The company takes the customer satisfaction as the purpose, unceasingly improves the product performance, always adheres to the quality first, the good faith as this management policy, has won the general customers' trust and the widespread praise.
The company will continue to provide customers with more cooperation and services.
FAQ Q1: Are you a manufacture factory or trade company?
A1: We are the manufacturer factory specialized in diesel generator set industry for many years already. Annual output 20,000sets, products/service reach 40 countries and regions.
Q2: How to control quality?
A2: 1) All the raw materials/parts by IQC (Incoming Quality Control) before launch into the process. 2) Each process under control of IPQC (Input Process Quality Control). 3) Each generator set/part must be pass 100% inspection between process. 4) All-sided ex-factory testing in various condition (Outgoing Quality Control).
Q3. How about your price level?
A3: Our price is reasonable which is based on quality and cost. And it's negotiable which based on quality or exact demands. It'll be much helpful if more details could be provided when you make an inquiry.
Q4: Delivery time?
A4: 7-15 days after deposit received. Most of the diesel generator sets/parts with stock, we can make delivery immediately or make out in short time.
Q5. How about MOQ?
A5: MOQ is 1 set.
Q6. OEM/Customized available?
A6: Welcome, generator set could be customized made according to client demands. Own design/LOGO on generator set available as well.
Q7. Payment term?
A7: 30% T/T as deposit, balance should be release 10 days before shipment. Or 100% L/C at sight. Packaging & Shipping

1. Rapid delivery.
Our company has 3 production lines for diesel generator sets, 6 production lines for diesel engines, more than 200 testing equipment and mechanical processing equipment, and an annual production capacity of 15,000 diesel generator sets.
2. Scale production, specialized production. The diesel generator shop and the diesel engine shop are stocked with large quantities of stock so that the products can be delivered to the customer as soon as possible after the order is placed. To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
