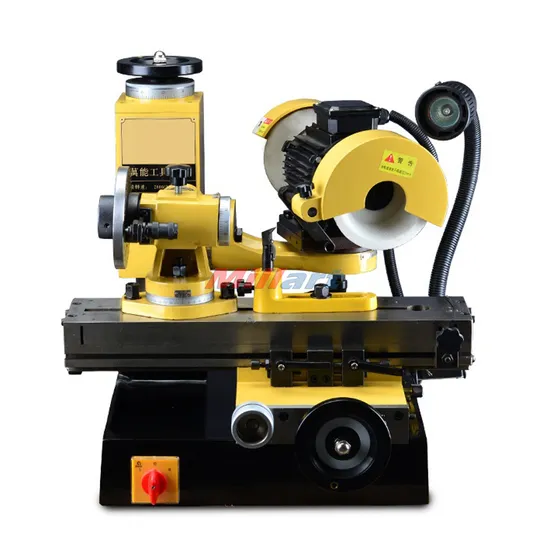

Cutting Tool Grinder Machine Mr-600f Universal Cutter Sharpener
| US$1,000.00-1,200.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
MR-600F
Processing Object
Curve
Abrasives
Grinding Wheel
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Precision
High Precision
Certification
CE, RoHS, ISO 9001
Condition
New
Worktable Diameter
300mm
Worktable Longitudinal Travel
300mm
Center Height
125mm
Transport Package
Wood Case
Specification
CE SGS ISO9001 ROHS
Trademark
L&T
Origin
Tengzhou China
HS Code
84596190
Production Capacity
500 PCS/Month
Product Description
Cutting Tool Grinder Machine MR-600F Universal Cutter SharpenerFeature:
The working table uses high precision straight line roiling guide rails,good back and forth movement, high stability, steady bed platform, dexterous operation.
Motor can rotate 360° in the horizontal plane, the grinding wheel can be clockwise and anticlockwise rapidly. When grind different kinds of material's cutter, you can turn the grinding wheel, which can add the safety and reduce the time of replacing and dressing the grinding wheel, adding controllability of cutter grinding.
Standard accessory can grind lathe tool, end milling cutter, face and side cutters, hobbing cutters, circular paper cutters,etc.
Technical parameter:
| Model | MR-600F |
| About worktable Diameter | 300mm |
| About worktable longitudinal travel | 300mm |
| About worktable cross travel | 150mm |
| Worktable area | 130×550mm |
| Center height | 125mm |
| Rotating Angle of Wheel head | 360° |
| Grinding wheel size | 125×50×32mm |
| Power/Speed | 2800 RPM |
| Motor | 3/4HP 220V/380V |
| Dimension | 700×630×630mm |
| Weight | 175kg/165kg |
| Standard Equipment | 50C,50H can grind slot miller,face and side cutter,lathe tool ,hobbing cutter,reamer bit etc. |
| Option Equipment | ★50E grind spiral milling cutter ball end mill,R type lathe tool,graver and other taper milling cutter. ★50K can grind drill bit ,screw tap,side mill,round bar and so on. ★50D can grind end mill ,side mill and so on. ★50B stand base ★50J thimble |
