CE Approved Hot Sale 3 Points Linkage Tractor Propelled Double Adjustment Stainless Steel Hopper Salt Spreader

Product Description

Products Description

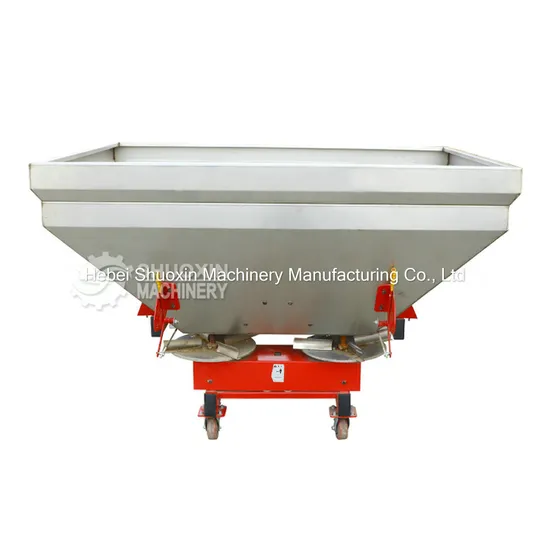

SHUOXIN FLS Fertilizer Spreaders
SHUOXIN FLS model Fertilizer Spreaders are produced with double discs, 1200 and 1500 Kgs capacities and 15-18, 15-20 meters working width(Single discs can load 600 and 800 kgs and the working width reach 8-12 meters).
These mounted type fertilizer spreaders are mounted to tractor's universal three point linkage system and hydraulic top link. Spreading discs made from stainless steel material. Horizontal mixer provides falling of fertilizer onto spreading discs easily. Fertilizer spreading degree can be easily adjusted by means of hydraulic lift.

When fertilizing the agricultural fields surrounding, the limiter mounted on the machine enables the prevention of fertilizing out of the field. The limiter prevents the mineral fertilizer to harm the environment and enables the most efficient use of the fertilizer. The limiter can be mounted on the right of left side of the machine. It would be sufficient to use the limiter on just one side.
Benefits and features Shuoxin FLS Fertilizer Spreaders are made with the highest quality of materials.
They undergo an intense painting process which includes being degrease, then painted with anti-rust, coated with anti-corrosive paint and finally dried at 120 degrees Celsius.

This provides the Shuoxin FLS Fertilizer Spreaders with improved durability and a longer life.
Single Disc Fertilizer Spreaders

Double Discs Fertilizer Spreaders

Stainless Steel Hopper

Polyethylene Hopper

Details Images
Why choose SHUOXIN FLS Fertilizer Spreaders? As one of the industry-leading Fertilizer Spreader manufacturers, suppliers and exporters in China, Shuoxin deals in rich array of Fertilizer Spreaders. They are widely used in the farming industry to spread Fertilizer as well as salt and seeds. We have a dedicated team of highly experienced and skilled Fertilizer Spreader manufacturers who use state-of-the-art technology and tools along with high-grade material to deliver you best quality of Fertilizer Spreaders. They are designed to connect with PTO shaft and mount on tractors.
Each Fertilizer Spreader undergoes stringent quality checks at regular intervals to make sure that the product is strong. We are known worldwide for delivering Fertilizer Spreaders within quick turnaround time and at industry-best prices.
Three Point Hitch
Three point linkage tractor suspension
PTO shaft
PTO shaft as power support
201 Stainless Steel Hopper with treated with rust inhibitor

Horizontal mixer to help the falling of fertilizer

Stainless Steel Spreading Disc

Adjustable Stainless Steel Fins

Shielded front plate
to prevent spreading of material in front of spreader
Adjustable positions
to obtain maximum spreading precision.
Product Paramenters

Model	FLS-1500	FLS-1200	FLS-800	FLS-600	TF-600
Volume(Kg)	1500	1200	800	600	600
Discs	2	2	1	1	1
Hopper Material	Stainless Steel	Stainless Steel	Stainless Steel	Stainless Steel	Polyethylene
Working Width (m)	15-20	15-18	8-12	8-12	8-12
Dimension(mm)	2060*1370*1300	1920*1360*1280	1580*930*1450	1440*920*1030	1240*1240*1140
Weight(kg)	298.5	284.5	115	85	75
Matched Power (HP)	90-140	80-120	30-100	30-80	30-80
Matched Rate (ha/H)	5	4.3	2.3	2	2
PTO Speed	540	540	540	540	540
Mixing System	Horizontal	Horizontal	Horizontal	Horizontal	Horizontal

Our Advantages
Advantages of SHUOXIN FLS Fertilizer Spreaders

4 adjustable spinner fins

Spreaders are treated with rust inhibitor

Attachment available for spreading dry salt and sand.

Suitable for compact and small horsepower tractors

Intense painting process which allows for a longer period of life and durability

Can be used for spreading rice, wheat, cereals, dry salt and sand

Expanding width depending on the product, from 8 to 20 m.

Double and single discs available.

Robust tubular chassis.

Polyethylene Hopper model

Metal hopper model available

Adjustable projection blades, for even and precise spreading.

Optional Agitator.

4 adjustable spinner fins

Spreaders are treated with rust inhibitor

Attachment available for spreading dry salt and sand.

Suitable for compact and small horsepower tractors

Intense painting process which allows for a longer period of life and durability

Can be used for spreading rice, wheat, cereals, dry salt and sand

Expanding width depending on the product, from 8 to 20 m.

Double and single discs available.

Robust tubular chassis.

Polyethylene Hopper model

Metal hopper model available

Adjustable projection blades, for even and precise spreading.

Optional Agitator.

How to properly set up a fertiliser spreader?

Spring fertiliser applications are crucial to getting crop growth off to the best start possible, and making sure your spreading equipment is up to the job is the most important aspect of this. An incorrectly calibrated spreader, along with poor quality fertiliser, can lead to some areas of a field being under-fertilised and other areas overdosed, ultimately meaning the full benefits of any nutrients applied are not delivered to the crop.

Assess the product

There are four factors that will affect the way that any fertiliser product will spread - the shape, size, strength and weight of the material. This is important because granules need to be able to withstand the force of the spreader vane hitting them so that they can be propelled to a decent distance without breaking. Sometimes if a fertiliser bag has been open for a while the product will soften and will be more likely to smash when the spreader vane hits them, meaning the granules will not spread as far.

Give your machine the once over

Make sure your spreader is in good working order. Start by assessing the disc and vane of the spreader, check that everything is clean, not pitted, warped or damaged. Checking spreader discs and vanes check the driveline to make sure there is no play in it and there isn't any play in the individual disc bearings either. Checking spreader headline mechanism for damage Check that the drop on guides are intact and check by eye that the discs are level on the machine. Also ensure the headland mechanism is working correctly and isn't damaged. Spreader drop on guides, Lower the machine and inspect inside to check on the condition of the agitators in the bottom. Use a measuring tape to check the spreading height of the machine per the manufacturer's guidelines. All spreaders have different spreading heights and will need to be measured from different points so make sure you know where this is on your own machine first.

Power input

The pto speed of the tractor running the spreader needs to be double checked to ensure the shaft speed is the same as the read out on the dashboard. Use a tachometer to take a speed reading.

Spread pattern tray test

For a 24m spreader, put down a pellet tray for each metre of the spread either side of the machine, placing two trays together at the halfway point (12m). Close up of catch tray with fertiliser in it. Make one pass through the middle of the catch trays with the spreader running, then assess the spread pattern using a set of measuring tubes.

Assess the spread pattern

Having collected the material into the tubes, there should be a roughly even number of granules in each. Avoid having too much material directly behind the spreader and not enough at the edges for example.

Company Profile






Shuoxin, Sure thing.
Hebei Shuoxin Machinery Manufacturing Co., Ltd has been in the agricultural machinery industry for more than 30 years, the product range covering spraying machines, fertilizer spreaders, manure spreaders, mowers, rakes, land levellers and so on. In the 30 years' service for agriculture field, Shuoxin has grown into an enterprise that integrates multiple business modules such as Design, Manufacture, Service and Information Survey. Shuoxin agricultural machinery have done a important work to nutrition supply and plant diseases & insect pests control for crops such as wheat, cotton, corn, rice, orchards and vegetables. With the ISO System certificates and CE production certificates, Cooperating with Shuixin can guarantee the partners with advanced machine products, reduced labor cost, improved work efficiency and promoted product revenue.
Certifications
Product packaging
Iron Farme Packing
All the machines are fixed in the Iron Frame by steel wire, the Frame use the steel which is thicker than 3mm. Strong enough to carry and protect the machine.
Black plastic film will also protect the machine from rain and sun shine.

All the frames is welded according to the machine size, to make sure the minimum size and weight.
