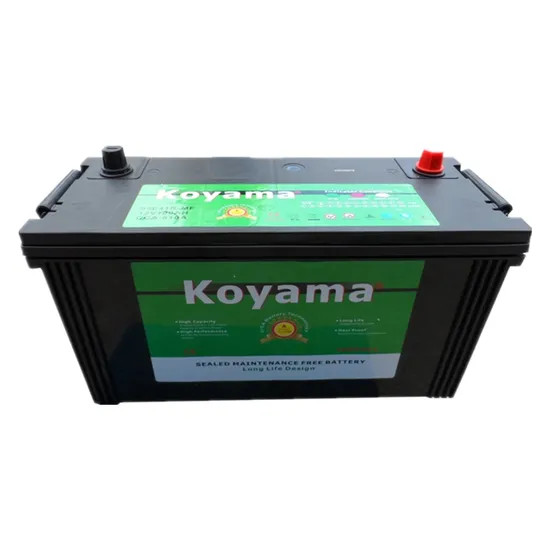

JIS Standard Rechargeable Car Vehicle Battery SMF Auto Battery100ah 12V N100

Product Description

Product Description
KOYAMA® Automotive batteries are filled and heat sealed at the factory so that you simple install this KOYAMA has been manufactured and distributing boat, truck and car batteries since 2012.All of our products are made using market-leading Expanded Grid(EXG) technology, which helps KOYAMA one of the leading supplier of maintenance-free car batteries throughout the globe. KOYAMA Produce range is the most long-lasting and durable on the market. Whether you are looking for a standard auto battery or a specialized deep cycle battery, you can't go wrong with our warranty-backed products. Thanks to EXG technology , our truck and car batteries can withstand the harshest work, weather and road conditions. Units are availalbe to fi any model, so you are sure to find the most performance-enhancing solution for your vehicles.
Product Parameters
MFN100/95E41R
Standard: IEC. DIN Japan's JIS & Asia standard
Sort: Maintenance Free Car Battery
Quality: Gold Quality
Voltage ( V ): 12
Size ( mm ): 404*172*200*225mm ( L*W*H*TH)
Rated Capacity ( 20HR, AH ): 100
CCA & Cranking Amps ( -18º C, A ): 750
Approx Wt. ( Kgs ): 25.5
Layout: 1/0
Terminal Type: A ( Standard Terminal )
Quality warranty: 13 months or 24 months
OEM: OK
Certification:
ISO9001, ISO14001, CE, UL, etc
Payment term: 30% T/T upon oder confirmation, 70% T/T before shipment
Delivery time: 20-30 days after oder confirmation

Standard	JIS Standard
Sort	Maintenance free automotive batteries
Model	95E41R-N100-MF
Voltage	12V
Rated Capacity ( 20HR )	100ah
Dimension(mm)	404*172*200*225
CCA( -18º C,)	750
Approx Wt. ( Kgs )	25.5
Terminal type	A
Layout	1
OEM service	OK

MAIN FEATURES
• High Capacity.• Long life.• High CCA and good starting performance.• Good charging acceptance and vibration resistant performance.• Application of advanced PE type separator.• Application of TTP technology.• Advanced sulfate-resistant technology.• Advanced calcium lead alloy technology, maintenance-free design.• Reliable labyrinth-like seal design.• Lead alloy terminal apply heavy load.• Full ranges models, good appearance and high standard design.• Long - lasting Service Life • Reliable Starting Power• Excellent Electrical Performance • Unique Design for Safety
APPLICATIONS•Starting, light and ignition for car, Tractor, Mine vehicle and Mobile machinery shop.
•Starting and ignition for the diesel motor or gasoline motor•It can be used as power for car, Tractor, Mine vehicle and Mobile machinery shop.Other JIS standard Model No. List

SMF CAR BATTERY FOR JAPANESE VEHICLES
Type No	Old Model	Capacity	CCA	Dimension (mm				Layout	Terminal	Hold-Down	Weight
		(20HR)		L	W	H	TH
MF36B20L	NS40L	32	330	196	128	200	220	0	B	B0	9.40
MF36B20R	NS40	32	330	196	128	200	220	1	B	B0	9.40
MF38B20L	NS40ZL	35	350	196	128	200	220	0	B	B0	9.80
MF38B20R	NS40Z	35	350	196	128	200	220	1	B	B0	9.80
MF40B20L	NS40ZL	38	390	196	135	200	220	0	B	B4	10.20
MF40B20R	NS40Z	38	390	196	135	200	220	1	B(A)	B4	10.20
MF32B24L(S)	N40L(S)	40	370	234	127	200	220	0	B(A)	B0	11.00
MF32B24R(S)	N40(S)	40	370	234	127	200	220	1	B(A)	B0	11.00
MF46B24L(S)	NS60L(S)	45	400	234	127	200	220	0	B(A)	B0	11.60
MF46B24R(S)	NS60(S)	45	400	234	127	200	220	1	B(A)	B0	11.60
MF55B24LS	NX100-6LS	48	430	234	127	200	220	0	A	B0	12.00
MF55B24RS	NX100-6S	48	430	234	127	200	220	1	A	B0	12.00
MF60B24L	/	50	460	234	127	200	220	0	A	B0	12.50
MF60B24R	/	50	460	234	127	200	220	1	A	B0	12.50
MF55D23L		60	550	230	172	200	220	0	A	B0	14.50
MF55D23R		60	550	230	172	200	220	1	A	B0	14.50
MF75D23L		65	580	230	172	200	220	0	A	B0	15.00
MF75D23R		65	580	230	172	200	220	1	A	B0	15.00
MF85D23L		70	600	230	172	200	220	0	A	B0	16.00
MF85D23R		70	600	230	172	200	220	1	A	B0	16.00
MF48D26L	N50L	50	450	257	172	200	220	0	A	B0	15.40
MF48D26R	N50	50	450	257	172	200	220	1	A	B0	15.40
MF55D26L	N50ZL	60	500	257	172	200	220	0	A	B0	16.00
MF55D26R	N50Z	60	500	257	172	200	220	1	A	B0	16.00
MF65D26L	NS70L	65	550	257	172	200	220	0	A	B0	16.50
MF65D26R	NS70	65	550	257	172	200	220	1	A	B0	16.50
MF75D26L	NS70L	70	580	257	172	200	220	0	A	B0	17.00
MF75D26R	NS70	70	580	257	172	200	220	1	A	B0	17.00
MF80D26L	NX110-5L	75	600	257	172	200	220	0	A	B0	17.50
MF80D26R	NX110-5	75	600	257	172	200	220	1	A	B0	17.50
MF90D26L		80	630	257	172	200	220	0	A	B0	18.30
MF90D26R		80	630	257	172	200	220	1	A	B0	18.30
MF65D31L	N70L	70	600	302	172	200	220	0	A	B1	18.50
MF65D31R	N70L	70	600	302	172	200	220	1	A	B1	18.50
MF75D31L	N70ZL	75	660	302	172	200	220	0	A	B1	19.00
MF75D31R	N70Z	75	660	302	172	200	220	1	A	B1	19.00
MF95D31L	NX120-7L	80	680	302	172	200	220	0	A	B1	19.50
MF95D31R	NX120-7	80	680	302	172	200	220	1	A	B1	19.50
MF105D31L		90	750	302	172	200	220	0	A	B1	20.00
MF105D31R		90	750	302	172	200	220	1	A	B1	20.00
MF115D31L		95	780	302	172	200	220	0	A	B1	21.50
MF115D31R		95	780	302	172	200	220	1	A	B1	21.50
MF115D33L		95	780	325	172	200	220	0	A	B0	22.50
MF115D33R		95	780	325	172	200	220	1	A	B0	22.50
MF95E41L	N100L	100	830	402	171	205	226	0	A	B0	25.00
MF95E41R	N100	100	830	402	171	205	226	1	A	B0	25.00
MF115E41L	N100ZL	110	850	402	171	205	226	0	A	B0	25.50
MF115E41L	N100Z	110	850	402	171	205	226	0	A	B0	25.50
MF135E41L	NX200-10L	120	890	402	171	205	226	0	A	B0	27.00
MF135E41L	NX200-10	120	890	402	171	205	226	0	A	B0	27.00

HEAVY DUTY TRUCK BATTERY FOR COMMERCIAL VEHICLES
Gr.No		Type No.	ETN NO.	Capacity	CCA	Dimension (mm)				Layout	Terminal	Weight	MOQ (PCS)
			Old JIS NO.	(AH-20Hr)	(EN/SAE)	L	W	H	TH			KG	PCS
12-VOLT HEAVY DUTY SEALED COMMERCIAL BATTERIES
EN	EN	SMF61017	610 017 060	110	600	507	186	203	224	3	A	29.5	100
		SMF62034	620 034 068	120	680	507	186	203	224	3	A	30.5	100
		SMF63530	635 030 068	135	680	507	186	203	224	3	A	31.5	100
		SMF63531	635 031 068	135	680	507	186	203	224	4	A	31.5	100
		SMF64020	640 020 068	140	680	507	186	203	224	3	A	33	100
	B	SMF64317	643 017 085	143	850	508	216	201	224	3	A	34..5	100
		SMF65017	650 017 085	150	850	508	216	201	224	3	A	35.8	100
		SMF66514	665 014 095	165	950	508	216	201	224	3	A	36.5	100
		SMF67043	670 043 100	170	1000	508	216	201	224	3	A	38.5	100
		SMF68032	680 032 100	180	1000	508	216	201	224	3	A	40	100
	C	SMF70027	700 027 105	200	1050	509	264	217	237	3	A	45.5	100
		SMF70029	700 029 105	200	1050	509	264	217	237	4	A	45.5	100
		SMF71014	710 014 115	210	1150	509	264	217	237	3	A	46.4	100
		SMF73011	730 011 120	230	1200	509	264	217	237	3	A	48.1	100
JIS	F51	SMF115F51	N120	120	640	504	180	211	232	4	A	30.6	100
		SMF150F51	N135	135	720	504	180	211	232	4	A	31.5	100
		SMF155F51	N140	140	780	504	180	211	232	4	A	33	100
	G51	SMF145G51	N150	150	950	507	220	213	234	4	A	35.6	100
		SMF165G51	N160	160	950	507	220	213	234	4	A	36.5	100
		SMF180G51	N170	170	950	507	220	213	234	4	A	38.5	100
		SMF195G51	N180	180	1000	507	220	213	234	4	A	40	100
	H52	SMF210H52	N200	200	1200	512	265	216	240	4	A	45.5	100
		SMF245H52	N220	220	1300	512	265	216	240	4	A	48.1	100
BCI	4D	SMF4D-950		150	950	507	220	213	234	4	A	35.6	100
	8D	SMF8D-1300		200	1300	509	264	217	237	4	A	48.1	100

Packaging & Shipping
RECOMMENDED PRODUCTS
DIN & BCI STANDARD AUTO CAR Battery-Click Picture to know more
DRY CHARGED Battery-Click Picture to know moreCBB KOYAMA® Dry Charge Auto Battery is designed to offer incredible cranking power, capacity and vibration resistance. It has advantages of longer life to hot or cold climate and lower discharge .Koyama Standard line fits most of Japanese,European and American Vehicles on the road in the world today. it includes passenger car and commercial batteries ,and heay duty truck batteries.
AGM Auto Starting Battery-Click Picture to know moreCBB KOYAMA®AGM/EFB series, the primary choice of car makers, is specially designed to meet and even go beyond all requirements of advanced vehicles heavily equipped devices and start-stop vehicles.Lithium Type Auto Starting Battery & Motorcycle Battery-Click Picture to know more
MOTORCYCLE Battery(Sealed MF/Dry MF with ACID PACK/ Dry CHARGED )-Click Picture to know moreCBB® KOYAMA®
MF Factory Activated and factory sealed motorcycle battery 12V-Maintenance Free-Absorbed Glass Mat-VRLA(Valve Regulated Lead Acid )
DRY Maintenance Free VRLA Motorcycle Battery ( user activated) -VRLA (Valve Regulated Lead Acid)
High Performance Motorcycle Battery -These batteries are the first to be produced with lead-calcium technology, thanks to which performance has been improved and maintenance reduced. But most important is that life span is longer than the conventional batteries.
VRLA Type MOTIVE POWER DC series Battery -Click Picture to know moreKOYAMA® DC SERIES Deep-Cycle AGM batteries are ideal for applications that require sealed batteries with heavy-duty cycling capabilities or for backup power. Deep-cycle batteries typically feature thick plates with a high-density active material. The thick battery Plates allow for reserve energy to be stored deep within the battery plate and released during slow discharge such as trolling or electronic instrument use. The high-density active material remains Within the batteries 'plate/grid structure longer, resisting the normal degradation found in cycling Conditions. They are typically used where the battery is discharged to great extent and then recharged.

Model No	BCI Industry No	Rated Voltage(V)	Rated Capacity (Ah)	Dimension				Weight	Terminal Type
				Length	Width	Height	Total Height	kg
				mm	mm	mm	mm
DC75-12M8	24	12	75/20HR	260	169	211	215	25	T3-M8
DC75-12DT	24	12	75/20HR	260	169	211	231	25.1	DT-M8
DC85-12	24	12	85/20HR	260	169	211	215	26.1	T3-M6
DC85-12M8	24	12	85/20HR	260	169	211	215	26.1	T3-M8
DC85-12DT	24	12	85/20HR	260	169	211	231	26.2	DT-M8
DC90-12	27	12	90/20HR	307	169	211	216	28.2	T3-M6
DC90-12DT	27	12	90/20HR	307	169	211	231	28.3	DT-M8
DC100-12	27	12	100/20HR	307	169	211	216	29.6	T4-M8/M6
DC100-12	27	12	100/20HR	307	169	211	230	30.2	AP
DC100-12DT	27	12	100/20HR	307	169	211	231	30.3	DT-M8
DC110-12	31	12	110/20HR	331	174	214	219	32.8	T4-M8
DC110-12AP	31	12	110/20HR	331	174	214	231	32.8	AP
DC110-12B	31	12	110/20HR	328	172	215	222	32.5	T4-M8
DC110-12BAP	31	12	110/20HR	328	172	210	238	32.5	AP
DC110-12BAP	31	12	110/20HR	328	172	210	235	32.7	DT-M8
DC110-12DT	N/A	12	120/20HR	407	173	208	233	39.2	T5-M8
DC135-12	G12/J150	12	135/20HR	341	173	283	287	40.8	T5-M8/M6
DC135-12AP	G12/J150	12	135/20HR	341	173	283	302	40.8	AP
DC135-12B	DIN-5SHP	12	135/20HR	341	173	281	281	40.8	T4-M8/M6
DC135-12BAP	DIN-5SHP	12	135/20HR	341	173	281	284	40.8	AP
DC150-12	N/A	12	150/20HR	484	171	241	241	45.5	T4-M8
DC150-12B	T1275	12	150/20HR	328	182	264	271	43.7	T5-M8
DC180-12	4D	12	180/20HR	532	206	215	219	56	T4-M8
DC200-12	4D	12	200/20HR	532	206	216	222	58.4	T5-M8
DC215-12DT	921	12	215/20HR	381	179	350	370	61.5	DT-M8
DC215-12BDT	921	12	215/20HR	381	179	350	370	61.5	DT-M8
DC220-12	8D	12	220/20HR	522	240	219	223	65	T5-M8
DC240-12	8D	12	240/20HR	520	269	203	207	71.0	T5-M8
DC260-12	8D	12	260/20HR	520	268	220	224	77	T5-M8

ELECTRIC VEHICLES BATTERIES RELATED SERIES-Click Picture to know more
CBB® KOYAMA® DZM Series Battery is specially designed for motive power applications, i.e. electric bikes/scooters, electric tricycles, electric motorcycles and other device require DC power source. The DZM Series adopts international leading technologies to ensure the batteries with features of long cycle life, large current discharge capability, high reliability and safety, and environmental-friendly.

12V E-bike/Scooter Battery
Item no	Model NO	Voltage(V)	Capacity(AH)	L(MM)	W(MM)	H(MM)	TH(MM)	Weight (KGS)
1	6-DZM-12/14	12	12	151	99	98	101	4.1
2	6-DZM-20	12	22.3	181	77	170	171	6.4
3	6-DZM-20	12	23.2	181	77	170	171	6.7
4	6-DZM-20	12	24	181	77	170	171	7
5	6-DZM-32	12	32	265	75	169	169	9.6
6	6-DZM-32	12	32	220	92	175	175	9.6
7	6-DZM-45/48	12	45	222	120	178	178	12.8
8	6-DZM-52	12	52	222	130	177	177	14.3
9	6-DZM-55	12	55	222	155	175	175	15.7

CBB® KOYAMA® EV series Battery is a high performance Deep Cycle Gel battery similar to the DZM but designed for of various types of Electric Vehicles requiring larger capacity batteries than the Koyama DZM series. The EV series consists of 6/12 Volt batteries ranging from 70 Ah up to 285 Ah. The EV series used in recreational vehicles, Golf Carts, Sightseeing vehicles, Cable vehicles, Electric tractors and various other larger Electric powered industrial vehicles

Model No	Rated Voltage(V)	Rated Capacity (Ah)	Dimension				Weight	Terminal
			Length	Width	Height	Total Height	kg
			mm	mm	mm	mm
12V EVF ELECTRIC VEHICLE BATTERY
3-EVF-200	6	200/3HR	260	180	265	272	35	T5
4-EVF-150	8	150/3HR	260	180	280	285	36.5	T5
6-EVF-40	12	40/3HR	198	166	174	174	14.5	T3
6-EVF-70	12	70/3HR	260	168	213	218	24.5	T3
6-EVF-75	12	75/3HR	260	168	213	218	25.5	T3
6-EVF-80	12	80/3HR	260	168	213	218	26.5	T3
6-EVF-100	12	100/3HR	327	172	216	221	34.5	T5
6-EVF-100A	12	100/3HR	327	172	216	221	34.5	T5
6-EVF-100B	12	100/3HR	327	172	216	221	31.5	T5
6-EVF-120	12	120/3HR	406	173	212	217	42	T5
6-EVF-135	12	135/3HR	340	173	280	285	46	T5
6-EVF-150	12	150/3HR	484	171	241	241	51	T5
6-EVF-200	12	200/3HR	521	238	217	222	64	T5

Deep Cycle flooded Model No. List--Click Picture to know moreCBB® KOYAMA® Golf, Utility Vehicle And NEV Flooded TUBULAR Deep-Cycle BatteryWith more than 20 years of research and development in lead acid batteries, we canfinally provide you for such deep cycle tubular batteries. Our deep cycle batteries cadeliver more performance and value than ordinary batteries with its super heavyduty tubular plate.
The deep cycle battery is flooded and then it needs watering after used to ensure enough water to cover the plates of each battery. The deep cycle battery is mainlyused in golf carts,Scrubber/Sweeper/floor Machine,Richshaw,Tricycle, and otherelectric vehicles.

6/8V VOLT DEEP-CYCLE FLOODED BATTERIES
Model No	BCI Size	Capacity Minutes		Capacity Amp-hour(AH)			Voltage	Terminal	Dimensions			Weight
		@25Amps	@75Amps						inches(mm)			Kgs
				5 Hr	10Hr	20Hr	Volt	Type	L	W	H	DRY
T-605	GC2	383	105	175	193	210	6	1,2,3,4	10.30 (262)	7.13 (181)	11.15 (283)	17.5
T-105	GC2	447	115	185	207	225	6	5	10.30 (262)	7.13 (181)	11.15 (283)	19.5
T-125	GC2	488	132	195	221	240	6	1,2,3,4	10.30 (262)	7.13 (181)	11.15 (283)	21.0
T-145	GC2H	530	145	215	239	260	6	2,4	10.30 (262)	7.11 (181)	11.90 (302)	24.0
T-875	GC8	295	117	145	155	170	8	1,2,3	10.21 (259)	7.10 (180)	11.14 (283)	21.0
T-890	GC8H	340	132	155	175	190	8	1, 2	10.21 (259)	7.10 (180)	11.14 (283)	23.0
T-1275	GC12	280	70	120	134	150	12	1	12.96 (329)	7.10 (180)	11.81 (300)	32.0

CBB® KOYAMA® Tricycle Battery are Tubular deep cycle battery specially designed for for electric tricycles .It outranks the ordianary battery with great power and reliability. we offer you both dry charged type and wet charged type both .

12 Tubular Deep Cycle Tricycle Battery
MODEL	Rated Voltage	Rated Capacity(AH)		Dimension (mm)				Without acid(kg)	With acid(kg)
	(V)	5HR	20HR	Length	Width	Height	Total Height
6-DG-140	12	70	98	365	175	255	275	20	30
6-DG-150	12	80	112	365	175	255	275	21	31
6-DG-160	12	90	126	365	175	255	275	23	33
6-DG-170	12	100	140	365	175	255	275	25	35
6-DG-180	12	105	147	365	175	275	285	26	36
6-DG-190	12	110	154	365	175	275	285	27	37.5
6-DG-200	12	120	168	365	175	275	285	29	38
Tubular Deep Cycle Battery for heavy Duty Equipments
EBN280-12	12	167	280	520	283	207	230	48	67
EBN260-12	12	175	260	520	283	207	230	46.5	65.5
EBN240-12	12	190	240	520	283	207	230	44	63

Welcome to contact and inquiry about lead acid battery & lithium battery (lifepo4 battery) and any auto parts! APPLICATIONS
-Golf/NEV/Utility Vehicles
-Aerial Work Platforms/Access
-Floor Machine
-Material Handing
-Marine/Recreational Vehicle
-Transportation
-Renewable Energy
-Car Starting
-Motorcycle Starting
-Forklift
-Solar/Wind power
-Electric Boat
Clik Below application picture to know related Battery Details!

FAQ
Q1. What is your terms of packing?
1. Standard export carton ,then onto pallets, or neutral package
2. If any special requirements on package , it is negotiable
3. All batteries are inspected carefully by QC before shipment.
Q2. What is your terms of payment? 1. By T/T , 30% T/T in advance,70% before shipment
2. By L/C at sight
3. Western Union, Money gram or cash We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your trade terms?
EXW, FOB, CFR, CIF.
Q4. How about your delivery time?
1. our lead time is 15-30days on the basis of order quantity after getting 30% deposit
2. if you need samples or small quantity , we can ship battery within 3-7days if we have stock after test is finished.
Q5. How to reach to us?
A: Please contact Ms. Jancy by We Chat / Whats-App:as above detail, or send me Made in China inquiry .
WX:2621326552
Q6. What is your sample policy?
A: We can supply the sample if we have in stock, but the customers have to pay the sample cost and the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit.
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.Company Profile
Company history & Product range
CBB Battery Technology Co Ltd is a large modern comprehensive power enterprise, specializing in production, R&D and sales of the full line of lead acid battery; with a factory area of 65mu and production area more than 30000m2.Our production capacity has reached more than 3 million KVAH per year.We mainly produce VRLA battery, automotive battery, Motorcycle battery, Motive power battery, Tricycle battery, Electric vehicle battery and various plates thereof. All batteries are widely used in UPS, Power station, solar power system, telecommunication, vehicles, boats, motorcycle and other applications. All battery can meet a variety of standby, storage, deep cycle, starting, sports, new energy system and other power requirements.
Certifications
