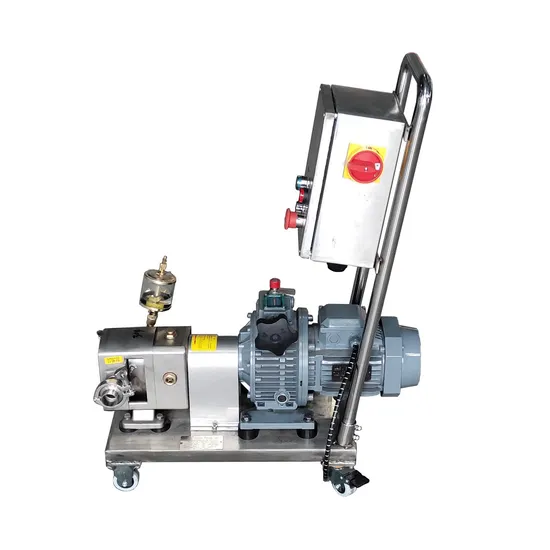

Sanitary Stainless Steel CE Certificated Lobe Pump
| US$1,500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
BLS
Oil or Not
Gear Oil
Structure
Positive Displacement
Exhauster Method
Positive Displacement Pump
Vacuum Degree
Low Vacuum
Work Function
Pre-Suction Pump
Working Conditions
Wet
Name
Lobe Pump
Material
SS304 or SS316
Power
0.55-22kw
Capacity
300-80000L/H
Weight
45-336kg
Model
Bls
Transport Package
Wood Case
Specification
0.3T-50T
Trademark
BLS
Origin
Zhejiang, China
HS Code
8438600000
Production Capacity
300 Sets/Month
Product Description
Product Description Butterfly lobe pump, Sanitary rotor pumpOperation Principle
Rotor pump is also named colloid pump, three-lobe pump, sole pump, etc. When the 2
simultaneous reverse rotating rotors (with 2-4 gears) revolve, it produces suction force
at the inlet (vacuum), which intakes the material delivered. The 2 rotors divide the rotor
housing into many smaller parts and revolve in the sequence of a-b-c-d. When it revolves
to position a, only housing | is filled with medium, when it revolves to position b, housing B
encloses medium, and finally it goes to position d, then housing A, B and || are interlinked
and the medium is transported to the outlet. As this process is repeated, medium (material)
is transported continuously.
We are specialized in producing different kinds of valves, pipe fitting, tubes, manhole covers,
pumps, etc for many years. We can design the products according to your special request.
OEM is welcome too.
| Model | (L)Capacity / per centum Rotate | (RPA) Speed | (L/H) Flow | (KW) Power |
| BLS-3 | 3L | 200-500 | 300-800 | 0.55 |
| BLS-6 | 6L | 200-500 | 650-1600 | 0.75 |
| BLS-8 | 8L | 200-500 | 850-2160 | 1.5 |
| BLS-12 | 12L | 200-500 | 1300-3200 | 2.2 |
| BLS-20 | 20L | 200-500 | 2100-5400 | 3 |
| BLS-30 | 30L | 200-400 | 3200-6400 | 4 |
| BLS-36 | 36L | 200-400 | 3800-7600 | 4 |
| BLS-52 | 52L | 200-400 | 5600-11000 | 5.5 |
| BLS-66 | 66L | 200-400 | 7100-14000 | 7.5 |
| BLS-78 | 78L | 200-400 | 9000-18000 | 7.5 |
| BLS-100 | 100L | 200-400 | 11000-22000 | 11 |
| BLS-135 | 135L | 200-400 | 15000-30000 | 15 |
| BLS-160 | 160L | 200-400 | 17000-34000 | 18.5 |
| BLS-200 | 200L | 200-400 | 21600-43000 | 22 |
