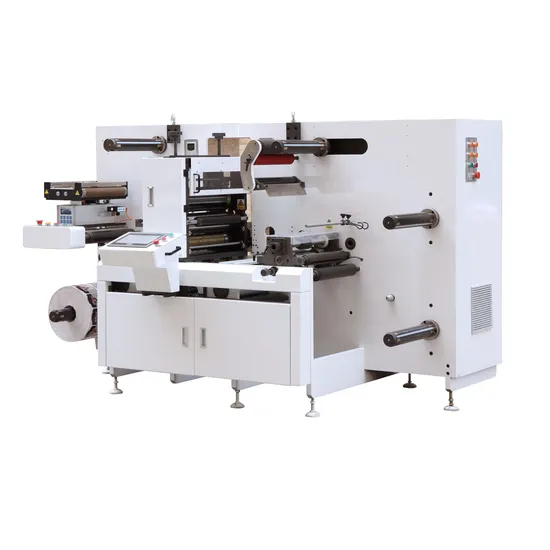

Self Adhesive Labels Full Rotary/Intermittent Die Cutting Machine for Iml

Product Description

Feature:
This equipment is the latest research and development product, equipped with Full rotary die-cutting, intermittent die-cutting and slitting units, it adopt advanced servo control system, user-friendly operation panel, greatly improve product quality and production efficiency; with the latest full-rotary and intermittent interchangeable technology; suitable for digital printing label small and medium quantity order after die-cutting.
Product Made from Machine:
Teachnical Specifications:

Model	370
Max. speed	Rotary 120m/min Intermittent 300times/min
width	370mm
Repeat	50-444.5mm
Precision	±0.15mm
Max. unwind dia.	800mm
Max.up rewind dia.	450mm
Max.down rewind dia.	800mm
Rewind inner core size	1-6 inch(standard in 3 inch )
Thickness of material	20-300um
Air source	0.8Mpa

Detail Configuration: Electrical parts:
-Servo motor: Innovance, China, 3 sets
-Control unit: Innovance emotion controller, China
-HMI: Paneimaster Taiwan brand, 10" for main machine
-Inverter: China 2 pcs, waste rewind, final roll rewind
-Inverter motor: China 2 pcs, for waste rewind, final roll rewind
-Servo motor reducer: Shimpo Japan, 3 sets
-Magnetic powder: China, 2 pcs of 5kg
-Web guide: Eurdow, China
-Track sensor: Leuze Germany, 1 pcs
-Bearing: NSK or NTN Japan
-Pneumatic parts: China
-Timing belt: China
-Low voltage: Schneider France
Machine Detailed Pic for Reference:
