Window and Door Making End Milling Machine CNC Milling Drilling Machine

Product Description

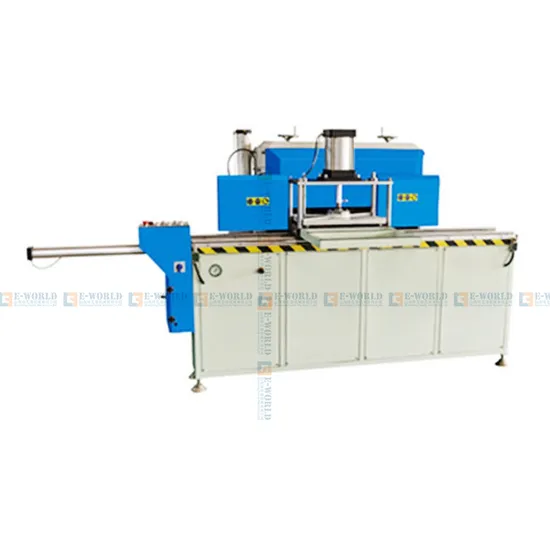

LXD-250 Auto End-milling Machine

1.Product Description
1).It can be used for end milling of profiles for aluminum doors and windows.
2).With a large-sized work bench and long cutting feed travel, it can mill 6--10 profiles in one operation with adjustable multiple cutting tools.
3).It is unnecessary to replace the cutting tools in case of product change so as to save the production setup period and cost of cutting tools.
2.Technical parameters

Model number	LXD-250
Working air pressure	0.5~0.8 Mpa
Air consumption	30L/min
Power supply	380V 50Hz
Input power	6.6 kw
Main shaft diameter	Ø32mm
Milling cutter diameter	Ø250mm
Max. processing hole size	40mm
Contour dimension(L×W×H)	2400×970×1640mm
weight(about)	450 kg

3.Packaging & Delivery.

Packaging Details:	staninternational dard PLYwood packing
Delivery Detail:	7-10 days after get payment

4.Details

1.Condition: New 2.Place of Origin: Shandong, China (Mainland) 3.Model Number: LXD-250 4.Type: Universal 5.CNC or Not: Normal 6.Voltage: 380V 50Hz 7.Power(W): 6.6KW 8.Dimension(L*W*H): 2400X970X1640mm 9.Weight: 450kg 10.Certification: CE&ISO 11.Warranty: one year

12.After-sales Service Provided: Engineers available to service machinery overseas 13.application: aluminum doors & windows 14.machine type: window milling machine 15.certificate: CE&ISO 16.Machine colour: any colour or as your required 17.Main shaft diameter: 32mm 18.Milling cutter diameter: 250mm 19.Max. processing hole size: 40mm

5.Features
1).Multiple sets of cutting tools can work simultaneously or separately based on different profiles,
2).With bigger diameter of cutting tools, the quality of machining surface is better, the hydraulic damping cylinder is used to push the feed of cutting tools to enable more stable operations.
3).The thickened clamping plate can prevent the profiles from deforming.
4).Before you buy the machine, please make sure then tell me your local power supply,then we can make the right according to your true voltage.

FAQ
1.Question:Are you manufacture?
Answer: Yes,we are professional manufacture which have more than 5 workshops.
2.Question: How about the service?
Answer:
1.Reply it within 12 hours if it from Ali-trademanager or email .
2.Deliver max within 15 days. 3.24 hours for after -sale service.
4.More than 12 years experience in this kind machine field.
5.Fluent English ,communication barrier free.
3.Question:What's the guarantee?
Answer:
1.Our guarantee is 18 months.
2.24 hour's technical support by email or calling.
3.English manual and video tutorial.
4.2 years quality guaranty for the machine (excluding the consumables).
5.We will provide the consumable parts at an agency price.
6.24 hours on line service each day, free technical support.
4. Q: Do you provide equipment operation training?
Answer: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training.
All of our engineers have passport.
5.Question:if our price is higher than another company or factories?
Answer: Please check the different of the machine parts ,service and guarantee,especially the machine inner electric parts, sometimes, if machines have breakdown, the most reason is the machine inner electric parts problem, but we use the famous and reliable parts for the machines inside.
6.Question:How long is the delivery time?
Answer: For standard machines, it would be 3-15 days; For non-standard machines and customized machines according to clients specific requirements, it would be 15 to 30 days.
7.Question: What is the payment?
Answer: Any payment method you want,such as L/C,T/T,D/P,West-union and so on.
