Exclusive First Class Core Configuration with 5960mm Length and 1960mm Width

Product Description

Product Description

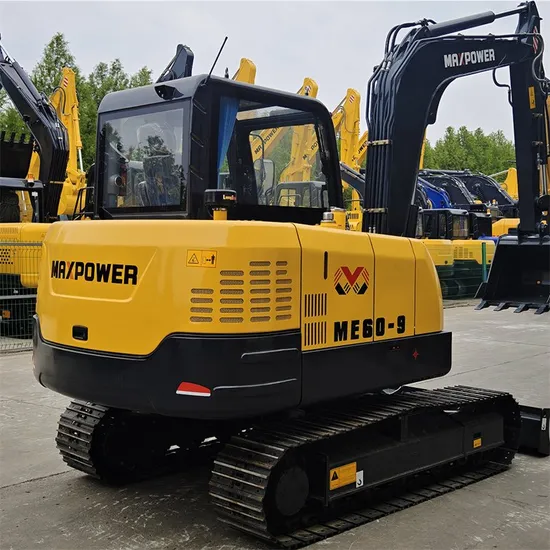

Discover the ME 60.9 Excavator, known for its compact structure, rapid action speed, and unparalleled comfort in operation. Powered by the original Japanese Yanmar engine, this machine boasts an automatic idle function, ensuring low energy consumption for your needs. Featuring a load-sensing hydraulic system, it offers precision control over various executive elements, ensuring excellent controllability and high work efficiency, setting a new benchmark in its class.
Product parameters

ME60.9
Weight (T)	5.85
Bucket capacity (m3)	0.22
engine model	YANMAR 4TNV94L
Power (kw/r/min)	36.2/2100
Fuel tank volume (L)	100
Walking speed (km/h)	4.2/2.2
Rotation speed (r/min)	9.5
Gradeability(%)	70
Bucket Digging Force (KN) ISO	39
Ground specific pressure (KPa)	33.5
Hydraulic pump model	HP5V76
Maximum flow (L/min)	160
Working pressure (MPa)	28
Hydraulic tank volume (L)	80
A-total length (mm)	5960
B-total width (mm)	1960
C-Total height (top of boom) (mm)	1995
D-total height (driving roof) (mm)	2690
E-Counterweight Ground Clearance (mm)	700
F-minimum ground clearance (mm)	360
G-tail turning radius (mm)	1700
H-track grounding length (mm)	2000
J-track length (mm)	2560
K-gauge (mm)	1560
L-track width (mm)	1960
M-track shoe width (mm)	400
N-turntable width (mm)	1906
O-Maximum excavation height (mm)	5750
P-Maximum unloading height (mm)	3980
Q-Maximum excavation depth (mm)	3860
R-Maximum vertical wall excavation depth (mm)	3040
S-Maximum excavation depth when excavating 2.5m horizontal plane (mm)	3440
T-Maximum excavation distance	6170
U-Maximum excavation distance at ground level (mm)	6045
V-minimum turning radius (mm)	2380
W-Maximum height at minimum turning radius (mm)	4395
X-distance from the center of rotation to the rear end (mm)	1700
Z-weight height (mm)	1685(Hood)
A1-ground length (when transported) (mm)	3370
Stick length (mm)	1630
Boom length (mm)	3000

Detailed Photos
Packaging & Shipping
For our complete machine shipment, a small cabinet can accommodate one unit, with disassembly of the forearm and bucket required. Meanwhile, a super high cabinet can hold as many as four units, necessitating the disassembly of the working device. Additionally, install up to 2 complete machines in a 40-foot ultra-high cabinet for seamless transit.
Company Profile
Jining Maxpower Machinery Co., Ltd With over 30 years of expertise in designing, manufacturing, and sales of construction machinery, the founder and team of Maxpower have been pivotal since the 1990s, collaborating with globally renowned construction machinery firms in China. Since 2004, they have pioneered a diverse product range, from mini to large mining excavators. By 2015, Jining Maxpower Construction Machinery Company was established, expanding to include rotary drilling rigs, piledrivers, and material handling machinery. As a professional entity, Maxpower offers wheel loaders, bulldozers, and wheel excavators, supporting customers globally. Over the years, Maxpower has successfully exported its innovations to more than 30 countries worldwide.
Nestled in the domestic construction machinery hub, the Jining High-tech Zone, our location is renowned for its outstanding manufacturing capacity, exceptional support resources, and rich human capital.
Our commitment to refined management of the production process and a stringent quality control system guarantees the reliability and cost-effectiveness of our products. Striving for efficiency and energy conservation, we aim for a high starting point and positioning, aligned with global technological advances. We consistently enhance our technical collaborations with esteemed international partners.
After Sales Service
The Maxpower brand, synonymous with high-quality products and exemplary services, enjoys widespread acclaim across the nation and is proudly exported to 50 diverse countries and regions, including Oceania, the Middle East, Africa, Eastern Europe, Southeast Asia, and South America.
FAQ
Q: How long is the machine warranty time?
A: One year.
Q: Are you original manufacturer?
A: Yes. We are manufacturer of construction machines.
Q: What is the terms of payment?
A: :Normally, we accept 30% advance, 70% should be paid after finished the machine, L/C at sight.
Q: What is the delivery time ?
A: Generally we need 3-5 days to produce the machine after prepayment ,if you are urgent , 2 days will be ok ,then send to port.
Q: How should we do if the machine broken ?
A: You can take a video to us and our technicians will analyze the cause of the problem based on the video.
Q: How should we do if parts are broken ?
A: We advise customers to purchase some conventional accessories based on their country and environment. If other parts broke ,we will send to you by sea or by air.
Q: Can the machine use the trademark of our own company?
A: Yes ,of course.
