Factory Price Mini Passive Optical Splitter Steel Tube 0.9mm Sc/APC 1X8 Fiber Optic PLC Splitter
| US$1.323-3.897 | 1 Piece (MOQ) |
Basic Info.
Model NO.
Mini 1X8 PLC Splitter
Certification
CE, ISO
Condition
New
Model Numbe
Mini 1X8 PLC Splitter
Wavelength(Nm)
1260~1650
Operation Temperature
-40~+85
Connector Type
Sc/APC or Sc/Upc
Return Loss(dB)
50
Directivity(dB)
55
Transport Package
Plastic Box/Suitable Quantity in One Carton
Specification
CE, Rohs
Trademark
DAYTAI
Origin
Zhejiang, China (Mainland)
Production Capacity
100000 Piece/Pieces Per Month
Product Description

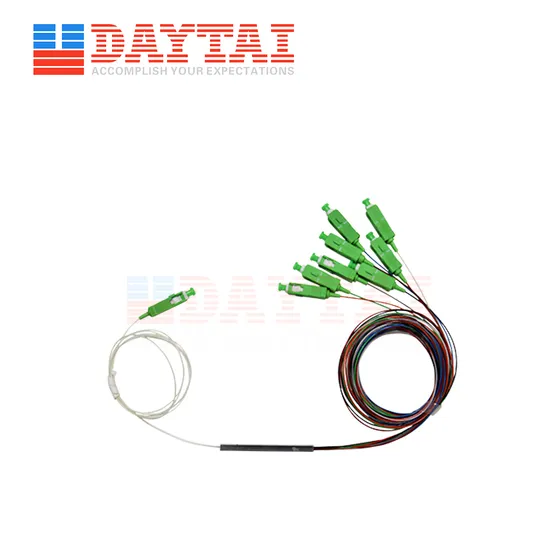

★Description★SC/APC 1x8 Fiber Optic Splitter
1x8 PLC Splitter Mini type,12 Standard Color,SM fiber,fiber optic cable OD:0.9mm pigtail,1m length, with SC/APC connector.
★Features
⊙FTTH
⊙Reliable
⊙Monitoring
⊙Smaller size
⊙CATV System
⊙Good Uniformity
⊙Network Protection
⊙Low Polarization loss
⊙Access/PON Distribution
⊙Not Sensitive to wavelengths
★Product Specification
| Category | Specification | Remarks | |
| Fiber Type | G657A or G652 | ||
| The 0.9mm Tube | Outer Diameter | 900um | |
| Material | Hytrel | ||
| Colour | Translucentc | Multicolor | |
| Length | L1±50mm | L≥0.3M | |
| Connector type | SC,FC,LC | ||
| Number tube NO: | IN/Input No./Output | ||
| Category | Specification | Remarks | ||
| Working Wavelength | NM | 1260~1650 | ||
| Test Wavelength | nm | 1310&1490&1550 | ||
| Insertion Loss | exclude connector | dB | ≤10.5 | |
| With connector | dB | ≤11.0 | ||
| Channel Uniformity | dB | ≤0.8 | ||
| Polarization Dependent Loss-PDL | dB | ≤0.2 | ||
| Directivity | dB | UPC≥50;APC≥55 | With connector | |
| Return Loss | dB | UPC≥50;APC≥55 | With connector | |
| Operating Temperature | ºC | -40~+85 | ||
