China High Precision Hmc500 Automatic CNC Horizontal Machining Center

Product Description

Product Description

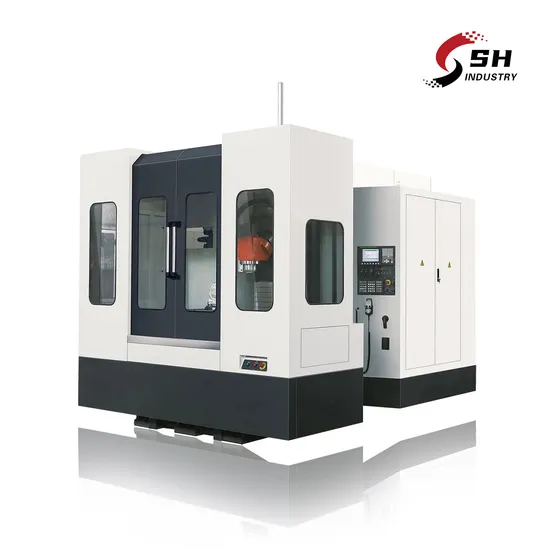

China High Precision Hmc500 Automatic CNC Horizontal Machining Center
Product Parameters
Standard configuration:
The CNC system: FANUC 0i MD
The knife: 24 the mechanical hand knife
The spindle :High rigidity and precision spindle unit
Select the configuration:
M70B/M70A Mitsubishi OR SIEMENS 828D
Automatic chip system
CNC continuous indexing table (not suitable for heavy cutting)
The knife: Chain knife library
The main performance characteristics :
1 Fixed column structure
2 Numerical control sub table, minimum 10, hydraulic clamping, suitable for heavy cutting.
3 Gas liquid conversion lift balance device
4 Z axia to the four rectangular hard rail ;X axia to overload roller type linear guide rail; Y axia to rectangular hard rail
Application :
Horizontal machining center spindle speed is high, the rigidity is strong, the torque is big. The main shaft is equipped with cooling system, the automatic rotation of the double working table, reducing the auxiliary time, improve efficiency. This series of machine tool performance is perfect, the precision is stable, it is suitable for processing various types of box parts and two dimensional, three-dimensional surface, it is mechanical, automobile, communication, textile machinery, printing machinery, agricultural machinery and other industries processing box type parts of key equipment.

Main technical specifications	Travel
	X axis	800mm
	Y axis(Headstock travel up/down)	650mm
	Z axis(column travel left/right))	800mm
	distance from table center to spindle nose	150-950mm
	distance from spindle axis to table surface	100-750mm
	Feed
	X axis rapid speed	24m/min
	Y axis rapid speed	18m/min
	Z axis rapid speed	18m/min
	Cutting Feed	1-10m/min
	3 axis servo motor torque	15/28/28 N.m
	rotary table servo motor torque	15N.m
	Table
	Worktable size	500×500mm
	Max.load	600Kg
	Table indexing	1°x360°
	T slot	5×18×100mm
	Spindle
	Connect	Belt
	speed	8000 rpm
	Spindle taper	BT40
	Main motor power	11KW
	Accuracy
	Positioning accuracy	±0.005/300mm
	repeat positioning accuracy	±0.003mm
	Other
	weight	9000Kg
	Machine size	3340×4480×2700mm

Main parts List	NO.	Configuration	specifications	manufacturer
	1	Special bearing for three-axis screw rod	XY:3062 Z:4072	CSPG/NSK
	2	Three axis ball screw	40/40/50	SHAC
	3	Three axis linear guide rail	Roller type 45	HIWIN
	4	Belt type spindle	BT40-150-8000rpm	Volis
	5	Knife punching cylinder	4.5T	Volis
	6	Three axis telescopic cover	n/a	LIUDING
	7	Positive displacement automatic lubrication system	n/a	HERG
	8	Three axis locking nut	XY:M30*1.5P Z:M40*1.5P
	9	Three axis coupling	n/a	GE
	10	Anchor bolt seat+anchor bolt+nut	n/a	n/a
	The above is the optical and mechanical configuration, and the following is the overall configuration
	1	operating system	22MA	SYNTEC
	2	Outer cover sheet metal	Fully enclosed (two screw and one chain chip conveyor)	Taihai
	3	Pneumatic system	n/a
				AirTAC
	4	Cooling pump	480W	DL
	5	heat exchanger	5AF	Winhee
	6	Main electrical components	n/a	Delixi/Schneide
	7	Work lights	M9-600/16W	Onnled
	8	Warning light	I2/foldable/buzzing/DC24V	Onnled
	9	Tool magazine	BT40-24T Arm type(special for horizontal machining center)	OKADA
	10	technical file package	Mechanical/Electrical/System Instructions, Accuracy Inspection Form	n/a
