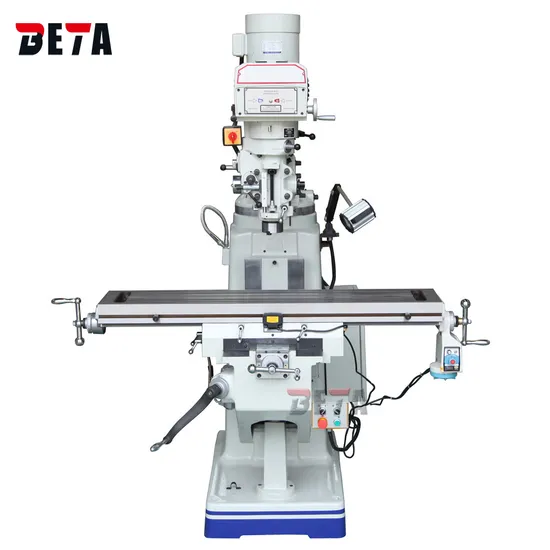

China Factory Cheap Price Turret Milling Machine X6325 for Metal
Basic Info.
Model NO.
X6325
Type
Tool Milling Machine
Object
Hardware
Structure
Ram
Milling Cutter Type
Customized
Milling Cutter Structure
Customized
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Name
China Factory Cheap Price Turret Milling Machine
Model
X6325
Table Size
254*1270mm
Spindle Taper
R8, Nt30
Spindle Speed
65-4500rpm
Spindle Motor Power
2.2kw 3HP
Delivery Time
2 Months
Warranty Time
12 Months
Voltage
380V
RAM Travel
470mm
Color
Blue and White
Key Word 1
Milling Machine for Metal
Key Word 2
Turret Milling Machine
Key Word 3
China Milling Machine
Spindle Travel
127mm
Transport Package
Wooden Pallet
Trademark
BETA
Origin
Shandong, China
Production Capacity
100 Sets Per Month
Packaging & Delivery
Package Size
100.00cm * 150.00cm * 200.00cm
Package Gross Weight
1500.000kg
Product Description
3HP China Factory Cheap Price Turret Milling Machine X6325 For Metal| Model | Unit | X6325 |
| Table size | mm | 254×1270 |
| Longitudinal travel | mm | 820 |
| Cross travel | mm | 410 |
| Vertical travel | mm | 400 |
| T-slot No.and size | mm | 3×16 |
| Ram travel | mm | 470 |
| Distance from spindle nose to table surface | mm | 0-400 |
| Spindle hole taper | R8 | |
| Spindle travel | mm | 127 |
| Spindle speed | rmp | 65-4500 60HZ:80-544 |
| Auto.quill feed | mm/rev | (three steps):0.04/0.08/0.15 |
| Spindle motor | kw | 2.2KW/3HP |
| Head swivel | ° | 90° |
| Head tilting | ° | 45° |
| Dimension of package | mm | Two sets / pallet 1650*1790*2170 |
| G.W/set | kg | 1320 |
Features:
1. High rigidity and quality casting iron, and saddle guide-way is coated by TF-material.
2. 16 steps speed milling head made in Taiwan, variable speed milling head and inverter milling head can be equipped as optional accessories.
3. X/Y/Z-axis screw are made in Taiwan with good smooth and reliable features.
4.Table surface is treated specially to harden HRC45-55.
5. X/Y/Z-axis guide way surface are treated specially to harden HRC45-55.
Standard accessories:
R8 spindle taper, 2.2kw / 3HP Taiwan milling head,
16 steps spindle speed (50HZ): 65-4500rpm , (60HZ): 80-5440rpm
Hardened worktable and guide, Lead screw from Taiwan, Finely ground central T-slot,
guide way with Turcite B cover, spindle bearing with P4 class ,Hand oil pump,
Work light, Draw bar,Electric cabinet, Tool and tool box,
