Manufacture European Standard Transport Passenger/Worker and Material Builder Hoist
| Negotiable | 1 Piece (MOQ) |
Basic Info.
Model NO.
SC200GD
Application
Construction Elevator
Lift Mechanism
Rack&Pinion
Carrying Capacity
Weight Level
Moves
Stationary
Driven Type
Rack&Pinion
Running Mode
Stationary
Certification
CE, ISO 9001
Motors
3X11kw, 2X16kw, 3X18.5kw
Drive
Mod, VFD
Mast Section
650 X 65 0X 1508 M
Wall Tie
Type I - Type VI
Certificate
CE
Brand
Anka Hoist
Max Height
450m
Transport Package
Container Sea Freight Packing
Specification
SC200/200GD, SC200/200GZ
Trademark
ANKA
Origin
China
HS Code
84289090
Production Capacity
300 Unit/Year
Product Description
CE Approval Construction lift for lifting builder lift in construction siteDescription:
ANKA provides a whole serial construction lift in both single and twin cage to the customers, the capacity of cage ranges from 1000kg, 1200kg, 1500kg, 2000kg, 2700kg, to 3200kg, and with direct motor driven and frequency conversion driven to reach the speed of 36 m/min, 40 m/m, 63m/min and 96m/min, the maximum working height is up to 450 meters. And ANKA also provides the customized size of cage to satisfy the special demand from customers.
The electric components and the frequency converter for our PM hoist are from international famous brand, Terminators from Phoenix. ANKA also provide the Germany Nord / SEW motor and gearbox for our customer's specific requirement.

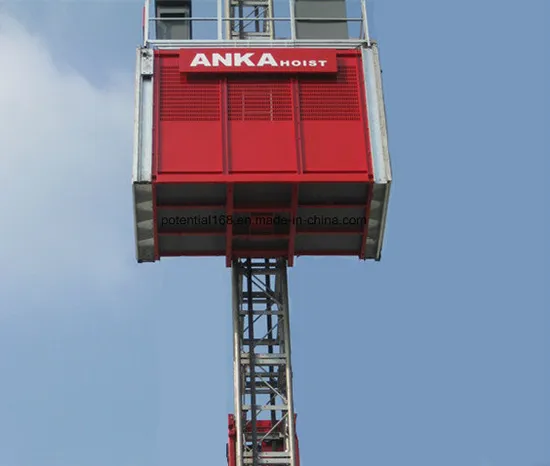

ANKA construction lift
SC200GZ Single car lift
CAP. 2000KG
GALVANIZED MAST SECTION
SPEED: 60M/MIN,
CABIN DIMENSION: 3.2*1.5*2.5/2.2M (L*W*H)
CUSTOMIZED DESIGN IS AVAILABLE.
| Model | Capacity (kg) | Lifting speed (m/min) | Motor power (kw) | Inverter power (kw) |
| SC200TD | 2000 | 36 | 3 x 11 | N |
| SC200GD | 2000 | 0-40 | 3 X 11 | 37 |
| SC200GZ | 2000 | 0-63 | 3x18.5 | 55 |
| SC270GZ | 2700 | 0-63 | 3x18.5 | 75 |
| SC200G | 2000 | 0-96 | 3x22 | 90 |
| SC270GS | 2700 | 0-96 | 3x30 | 110 |
| SC120/120GZ | 2x1200 | 0-63 | 2x3x15 | 2x45 |
| SC200/200GZ | 2x2000 | 0-63 | 2x3x18.5 | 2x55 |
| SC270/270GZ | 2x2700 | 0-63 | 2x3x18.5 | 2x75 |
| SC200/200G | 2x2000 | 0-96 | 2x3x22 | 2x90 |
| SC270/270GS | 2x2700 | 0-96 | 2x3x30 | 2x110 |
| SCD270/270G | 2x2700 | 0-96 | 2x3x18.5 | 2x55 |
| SCD320/320G | 2x3200 | 0-96 | 2x3x22 | 2x75 |
