Wood Pallet Machine Lumber Cutting Stacking Production Line

Product Description

SF8002 Automatic trimming stacking line
Product Description
Full automatic line, high speed 50-60 boards /min
Can connect with other machine to feed the wood automatically into this line.
Advantages:Easy to operate, high efficiency, safty for worker

Model	SF8002
Working length	800-1500/2000mm
Double end trim off length	Max. 50mm
Working width	85-140mm
Working thickness	15-38mm
Efficiency	50-60 boards/min
Labor	1-2 persons
Air pressure	0.6-0.8Mpa
Finished stack width	800-1200mm
Finished stack height	Max. 1100mm
3 ton hydraulic lifting table	2.2kw
Wood arrange table	1.5kw
Sorting table	2.9kw
Double end saw	10.5kw
Waste conveyor	0.75kw
Stacker	8.5kw
Total power	26kw
Voltage	380v 50hz 3phase
Dust collection port	100mm*4pcs
Space	17500*6452mm

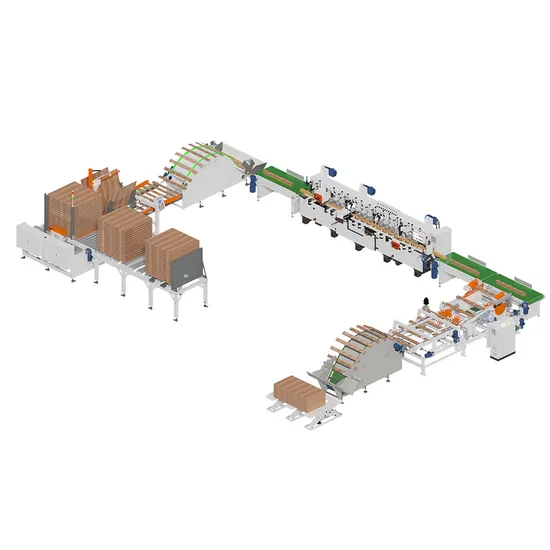

Full line consist with below machines:
3 ton hydraulic lifting table Lifting table Arrange table Double end trim saw Waste conveyor Stacker Detailed Photos
(1)3 ton hydraulic lifting table
Manual feed the wood into this line.
Can replace with other customized automatic conveyors, like chain conveyor or belt conveyor, can connect with other machines to feed wood automatically into this line.
(2)Lifting table
With hopper can transfer pack of wood, then one by one lift to ahead, the lifting table with hook can ensure the wood will be lift one by one.Also can put the wood into this hopper manually.
(3)Arrange table
Here can have inspector to takeaway the bad wood, with a turning device used as a buffer for excessively high speed coming wood, to transfer the wood to sawing area.
(4)Double end trim saw
Left and right side each with 450mm saw blade, both sides sawing heads is 50mm moveable, main used for wood end trimming.
Each side with 4kw powerful motors, ensure high speed feeding and cutting.
With 4pcs 100mm dust collection ports, recommend use 4kw bag dust collector
(5)Vertical waste conveyor
Transfer the wood waste to 1600mm height, then can fall to dustbin.
(6)Stacker
SF8010 stacker, stacks up to 8-12 layers per minute, one layer width 1.2m, height 1.1m, length is 1.5m or 2m. Mechanical stacker, loading weight about 1000kg.
With Drop Type Spacer Feeder 3pcs, can pre-set the spacer quantity and wood layer quantity easily.
(7)Main parts brand
Electrical parts Schneider, Screen PLC Siemens, Inverter Delta, Motor Chinese local brand
Proximity switch: Pepperl+Fuchs, Magnetic switch: AirTac, Diffuse reflection: Banner
