Waterproof PS/2 or USB 101 Keys Membrane Keyboard with Magnetic Reader (HCC-KB101R)

Product Description

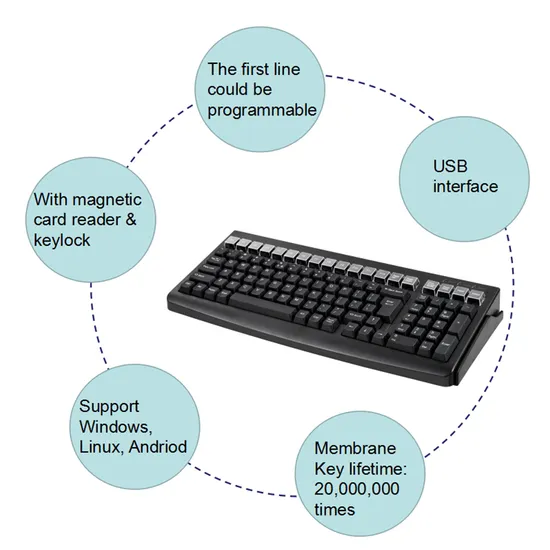

101 Keys Membrane Keyboard HCC-KB101R
The KB101 is a membrane keyboard with 101 keys and standard keyboard code. It is dustproof and waterproof. The KB101R is capable of magnetic reader. Only the first row of the keys could be programmed if it is desired.
Detailed Photos

Product Parameters Based Features
Operating system: Windows, Android, Linux Interface: PS/2 or USB Bi-direction swipe Single track, dual track or three track No battery and don't install any drivers when the interface is USB Durable and good handle The PS/2 can be developed to be connected with other device like standard keyboard, bar code scanner Programmable Features 100 years data retention without additional battery The key is multilevel: a key can be programmed with different character strings Only the key in first line can be programmed, but a key have to less than 255 characters, and the keyboard can't be programmed Normal operation by itself or connected with other keyboard Any key can be defined including Num/Cap/ Scroll/ Lock, Ctrl, Alt, Shift, F1 ect, Multi-country codes Magnetic Features Accord with ISO, DIN, ASNT The power supply: DC+3.3V Card Swipe Speed: 10-140cm/s Life circle of Head: ≥500000 Coercive Force: 300-4000 Oe The header, tailed, separator, prefix code, suffix code and track sequence can be programmed through MSR setting The Density of Magnetic Stripe: Track 1--210BPI with max 75 characters Track 2--210BPI with max 75 characters or 75BPI with 37 characters; Track 3--210BPI with max 75 characters Specification

Keyboard
Key lifetime	>15 million times
Key pressure	55±15g
Key combination	Electro-Static discharge,The EMC Radiation Test is B(according to the standard like GB 4943,GB/T 17626)
Lettering keycap	leaser engraving, which is clear and wear-resisting
Mechanical
Subject material	ABS (or HIPS)
Color	black or gray
Size	(L×W×H)395x170x40mm
Net Weight	950g
Cable Length	0.8m
Environment
Working Temperature	0±40°C
Working Humidity	10%-- 90%
Working Voltage	DC+5V ±10%
Working Current	≤100mA
Storage Temperature	-20 ±55°C
Stroke	4.0--0.5mm
Package
Size	(L×W×H)545x420x210mm
The size of inner box	(L×W×H)412x186x51mm
The weight of inner box	100g (including the electronic cable)
The weight of outer container	14kg

Company Profile FAQ 1.Would you provide SDK for me?
Yes, we offer free SDK if you order sample. All the contents in a CD ROM with sample together.
2. What is the minimum order?
We accept one piece for standard products. If require OEM, will see detailed requirements and confirm MOQ to you from our sales department.
3. What's the delivery time?
Generally, sample can be shipped in 2-3 working days after payment. For quantity, theleading time will be 1-4 weeks depend on exact quantity.
4. Can we get the free sample?
Sorry, generally we would not provide the free sample. If the customer confirm the specification and price, they can order the sample firstly for the testing and evaluation. When they place the mass order, we can return the sample cost to the customers.
5. Do you accept Paypal?
Yes, we accept paypal. Besides, we accept Western Union, T/T, L/C Secure payment and so on.
6.Which way to deliver the goods?
By Express: DHL UPS TNT FEDEX or ARAMEX EMS E-packing.
By Sea: Inform us the Sea Port to check which ship line.
By Air: Inform us the Airport to check which flight.
Or pick up by the customers.
7. Are you manufacturer?
Yes, we are manufacturers. We have been in PC/POS/Mobile Payment product & Solution for 9 years. We can provide OEM / ODM customized service according to our customers' various application and demands.
8. What warranty for the products?
According to our warranty policy, we will provide 12 months warranty time from the shipment date for our all products (Excluded the consumable parts). As for the mass order, we will provide certain proportion spare parts or RMA machine for local service.
9. What the after sale service?
a. Our all products will provide 12 months warranty;
b. Enough stock spare parts for guarantee;
c. Professional engineers provide 7*24 online service; If required, our engineers can provide local service in field;
