Good Quality Cast Iron Ingot Mold for Electrode

Product Description

Good Quality cast iron ingot mold for electrode
Supplier name:SHANDONG USEEN CASTING CO.,LTD
Product : Steel Ingot Mold,ALLOY Ingot Mold,Electrode Mold
At present, the steel ingot molds produced by Useen are mainly made of vermiculate iron, gray iron and ductile iron. The composition can be formulated according to the steel type properties, pouring temperature, and usage conditions of customers. In terms of steel ingot mold structure, there are round ingot molds, plum blossom molds, square and flat ingot molds, etc.,
Product Parameters
1.1 Weight range Steel ingot mold:1-70ton
Alloy ingot mold:1-20ton
Electrode ingot mold:1-25ton
1.2 Material
Steel ingot mold:gray cast iron,vermicular cast iron,ductile cost iron
Alloy ingot mold:gray cast iron
Electrode ingot mold:gray cast iron,vermicular cast iron,ductile cast iron

Graphite type	Flake graphite type A,partical of type E
Graphite length (mm)	<25	Grade 4
Pearlite content	≥90%	Grade 1
Cementite content	<2%	Cementite 1
Tensile strength (MPa)	100 - 300

1.3 Maximum size Steel ingot mold:3297*2762*3175mm
Alloy ingot mold:gray cast iron
Electrode ingot mold:Height≤5500mm Diameter≤3000mm
2. ADVANTAGE
2.1 Stragegy technology support by Nippon Chuzo K.K(JFE Corporation)
2.2 Equipped with our own 2 blast furnaces,high purity molten iron provides high thermal conductivity.
2.3 Neat appearance,high dimensional accuracy ensures long shelf life.
2.4 High cost-effective can save cost for customers.

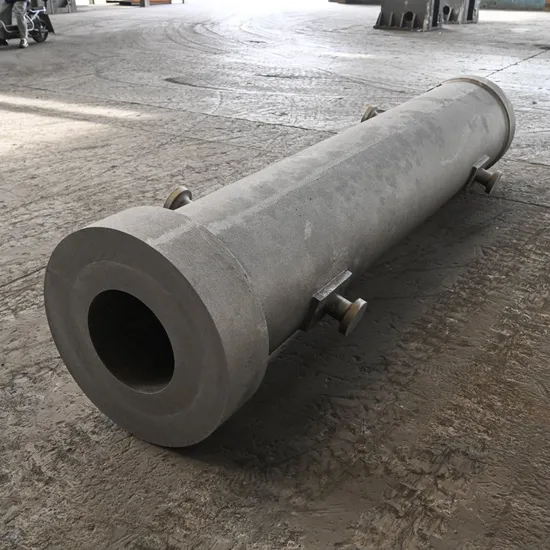

Detailed Photos
Packaging & Shipping

Package customized(meeting with sea shipping requirment),supporting wooden ,pallet,etc
