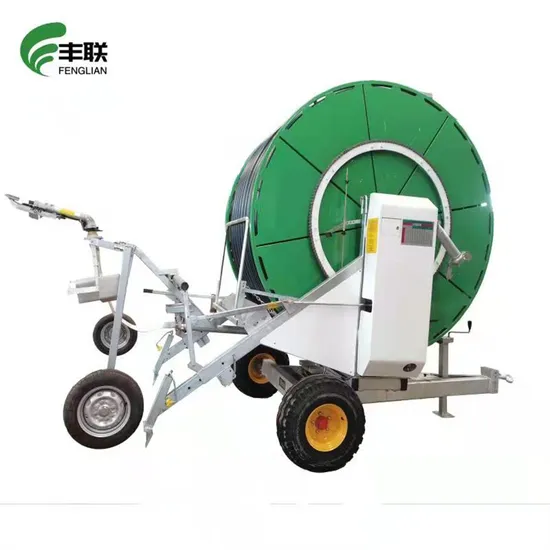

Agricultural Machinery Farm Irrigation Systems Center Pivot Watering Equipment

Product Description

https://fenglianmachinery.en.made-in-china.com/product-list-1.html
The sprinkler size, trajectory, and nozzle options fromfenglian provide a customizable solution for your hose reel traveler. The most popular Big Gun Sprinklers for hose reel traveler irrigation are the 100 Series and 150 Series. These water cannons pair to the most common hose reel machines for application rate, flow, and operating pressure. For smaller machines, the 75 Series may be better suited. The 200 Series Big Gun is best suited for the largest hose reel traveler machines and its high volume and long radius of throw are as impressive as they are effective.

The Big Gun's efficient taper ring nozzles provide an excellent balance between stream diffusion and throw distance. They are interchangeable to simplify the customization of the sprinkler flow rate to the crop needs. The new 100 and 150 Series plastic nozzles are an economical alternative to aluminum and are made from the same field-proven material as Nelson pivot sprinkler nozzles.
Product Description

Irrigation System Project Parameters	unit	Series Model
		JP75 JP90/D	JP90 JP90/D	JP110 JP110/Y	JP125/Y
Interlayer velocity difference	%	<20d>	<20d>	<20y>	<15n>
precipitation	mm	8-50	8-50	7.3-92	10-100
nozzle type	/	PYC50	PYC50	PYC75	PYC75
nozzle height	mm	1300-2800	1300-2800	2000-3000	2000-3000
nozzle car track	mm	1300	1300	1300-1500	1300-1500
car climbing	%	20	20	20	20
traction height	mm	300-500	300-500	300-500	300-500
ground clearance	mm	300	300	300	300
chassis	/	185R 14C	10.0/80-12	10.0/75-15.3	10.0/75-15.3
wheel tire rim maximum width	mm	2000	2310	2400	2510

Detailed Photos

water turbin
The water turbine adopts high speed: 1050 R / s and ordinary water turbine 800 R / S; The gear box adopts gear grinding gear box; The spray gun adopts a high-quality large spray gun that can be replaced within two years.Water turbine it is the power-drive system of machine, also can regulate water flow,ensure PE tube recovery speed uniform. It composes elbow, vortex shell, turbine and other parts. Water flow can reach 13-68m3/h, rotating speed can reach 200-800r/min. With automatic speed adjustment function, to ensure the sprinkler car walking speed deviation less than 20%.
https://fenglianmachinery.en.made-in-china.com/contact-info.html
All products adopt integral laser cutting technology to ensure the universality, standardization and interchangeability of spare parts.All reels adopt pickling, phosphating, electrophoresis and paint baking technology to ensure high color fastness of reel painting and no corrosion as a whole.Frame and winchThe frame and winch is made by low carbon alloy steel stamping welded together. The frame and winch is connected byturn plate, which rotates flexible and portable. It can rotate 360°, make the sprinkler car to work on different orientationfield, reduce the machine movement frequency, and increase the reclamation index.

Packaging & Shipping

hose reel irrigation machine used with nude packing ,All machines are fixed with cables to ensure that the machine will not be damaged during long-term transportation. At the same time, all accessories and tools are also placed in the toolbox for our customers to use. Therefore, in short, our packaging and transportation is very complete to ensure that the goods received by customers are intact. At the same time, we also support the packaging requirements according to customers' requirements, Customer satisfaction.

Company Profile

All products, from material selection to production and processing, are so amazing. Our materials are about half thicker than our peers on average. Laser blanking has high accuracy.
Our paint spraying adopts paint baking technology, shot blasting and rust removal, assembly line operation. Our products are tested before leaving the site, and all processes are standardized enterprise processes.
Not only that, The process flow is leading in the industry.
We can see from the picture that our adopts the driving mode of water turbine. This structure can avoid the restriction of farmland power consumption, and has low failure rate and durability. As a mechanical technology company, Fenglian also ensures its vitality

related products

A complete set of tray nozzle system includes reel sprinkler, machine, pump truck, truss and sprinkler. The sprinkler is divided into spray gun and truss. These two devices can be replaced and adjusted appropriately according to your planting crops
hose reel irrigation system we provide you from jp50-jp110 series ,colour can be choosed
for truss boom, there are 26m, 30m , 35m, three model for your choice
rain gun ,FSN40 and some big rain gun can help you
diesel pump .we choose the best engine in china ,so that make your using satisfied
In a word, we should match the products according to your actual requirements and give you a complete irrigation scheme. Many customers, as direct users, don't quite understand what equipment and scheme they use the most economically. We all have professional engineers to design according to your actual use requirements

Certifications

As a professional manufacturer of reel sprinkler irrigation machines, Fenglian has been following the production specifications since the first day of its establishment, producing in compliance with the regulations and leading the industry. This is our concept.
In order to make our products benefit more farmers and more agencies
our products have successively obtained ISO quality management certification and are provided according to customer requirements, GS certification and CE certification

with perfect certification system, make customers satisfied and moved.

Exhibition Show

Since 2000, the company has actively participated in various exhibitions at home and abroad
from Guangzhou and Shanghai to Dubai, Sydney and Munich. Fenglian people have traveled all over the world to communicate with peers, shoulder to shoulder with the top of the industry, listen to customer needs and walk into local farmland in person.
Through the exhibition, we have made more and more friends at home and abroad, which is of great help to our own improvement and the promotion of enterprises.
In the future, after the epidemic is over, we will continue to promote the exhibition, so that our high-quality products can benefit more people.

Our team
People are the core competitiveness of the enterprise.
We actively promote the amateur cultural activities of employees, enhance the understanding between employees through activities, enhance the cohesion of employees
improve the competitiveness of the enterprise. Enrich employees' life, make employees work better and work happily



FAQ
Q1: Can you provide OEM or ODM service?A1: Yes, we have strong developing team to support OEM and ODM service. The products can be made according to your request.Q2: What is the sample lead time & production lead time?A3: T 15~25 days after received your depositQ4: What's your payment terms?A4: TT or LC at sight.Q5: What is your terms of delivery?A5: FOB/CIF/By air as you like.
