Durable Cladding Panel System for High-Quality Wall Decoration

Product Description

Product Description

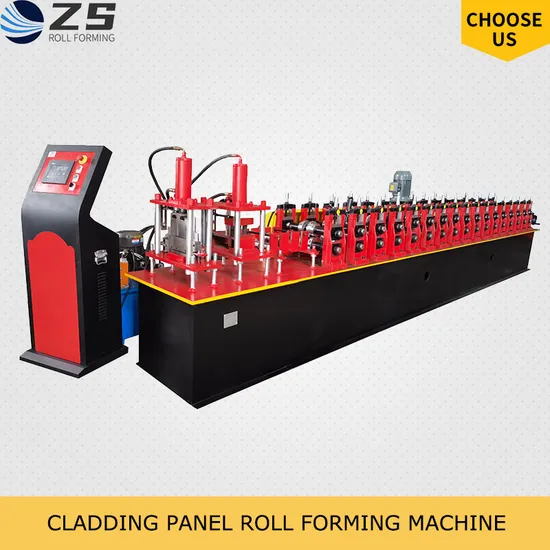

Exterior Wall Decoration Cladding Panel Selflock Making Roll Forming MachineIntroducing our versatile and advanced roll forming machine, engineered to surpass all your manufacturing needs! Capable of rolling holes on surfaces and precisely punching side holes, this machine allows you to produce two different sizes seamlessly. Simply adjust the space and cutting blade without the hassle of additional modifications.

Profiles:
We offer complete customization of the machine according to your design and specific requirements:
Roll Forming Machine Components:

No.	Name	Qty
1	De-coiler	1 Set
2	Forming Machine	1 Set
3	Hydraulic Cutting Device	1 Set
4	PLC Control Box	1 Set
5	Hydraulic Pump Station	1 Set
6	Production Support Table	1 Set

Working Flow:
Uncoiler ----- Feeder ----- Rolling Holes ----- Roll Forming ----- Punching Holes ----- Automatic Control System----- Automatic Cutting System ----- Products Receiving Tables
Detailed Photos
Feeder System:
Our feeder system features the latest innovative design, ensuring optimal performance and reliability.Experience stable operations with zero coil swing.Effortlessly adjustable for maximum convenience.Working width: Capable of handling widths up to 600mm.
Main Roll Forming System:
Forming Machine Structure: Crafted from casting steel, ensuring superior strength and stable performance.Roller: Made from Cr12, processed with high precision for impeccable results.Shaft: Fabricated from 45# steel, featuring a robust 70mm diameter.Motor Power: Standard 5.5kW or customized to meet your design specifications.
Roller Details:
Achieve unmatched roller precision through CNC-center processing, ensuring high accuracy and flawless products.
Hydraulic Punching & Cutting System:
Working Model: Common hydraulic cutter for efficient operations.Cutter Blade Material: Premium Cr12 steel.
Punching System: Programmable configuration for side holes.
PLC Control System:
PLC Brand: Renowned brand Delta for dependable control.
Touch Screen: Intuitive Delta touch screen interface.
Effortless and user-friendly operation.
Order No. 20
Hydraulic Oil Pump System:
Comes equipped with an efficient fan cooling system.
Power: High-performing 4kW system.
Durable gear pump for consistent performance.
PLC Control System
Automated control of quantity and cutting length to streamline production.
Easily input production data (batch, pieces, length, etc.) via the touch screen for a fully automated process.

Combined With	PLC, Inverter, Touch Screen, Encoder, etc
PLC	Siemens (German brand) Or Delta(Taiwan brand)
Inverter	Siemens (German brand) Or Delta(Taiwan brand)
7-Inch Color Touch Screen	Siemens (German brand) Or Delta(Taiwan brand)
Encoder	Omron (Japan brand)Switch Bottom, Indicate Light, Power Supply, Intermediate Relay, AC Contactor
Thermal Relay	Siemens (German brand) Or Delta(Taiwan brand)
Air Switch	LG-LS(Korea brand)Cut-to-Length Tolerance≤±1 mmControl Voltage 24V

After-Sale Service:
1. The warranty period is18months from the date the client receives the machine.
During these 18 months, we provide replacement parts free of charge.
2. Lifetime technical support for all our machines.
3. Technicians available for installation and worker training at the client's factory for an additional fee.
Terms of Trade:

Minimum order quantity (MOQ)	1 Set
Delivery time	about 60 workdays
Port of loading	port of Tianjin
Type of payment	by T/T or by L/C
Export	to more than 80 countries and regions, including South Korea,Taiwan, UK, Ireland, Greece, Australia, USA, Mexico, Brazil, Russia,Saudi Arabia, UAE, Iran , India, Singapore, Malaysia, Thailand, Indonesia, Philippines, Vietnam, South Africa, Nigeria, Egypt, etc

Packing Style:

Packing method

Main body of machine is naked and covered by plastic film(to protect of dust and corrosion),loaded into container and steadily fixed in container suitable by steel rope and lock, suitable for long-distance transportation.
