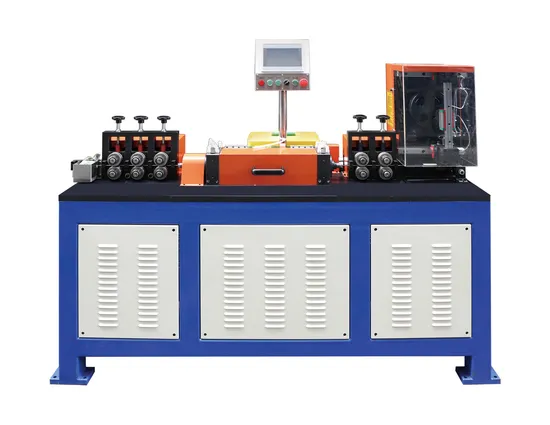

Automatic Iron Wire Rod Stainless Steel Wire Straighter and Cutting Machine

Product Description

Products Description
CNC Automatic PLC Metal Steel Iron Wire Cutting And Straightening Machine 1, The straightening machine consists of a frame, a straightening mechanism, a feeding mechanism, a cutting mechanism, a linear
gun and a wire frame. The straightening part is composed of a straightening shaft, a straightening pressure block and a bearing
housing at both ends to complete the straightening work of the wire. Its power is a motor installed in the lower part of the
frame, which drives the straightening shaft to rotate at high speed through triangle tape.
2, The straightening device and the cutting device are driven by their own motors, and they do not interfere with each other. The
two sets of wire feeding mechanisms at the front and rear can ensure the smooth feeding of the wires.
Product Paramenters

Model	2-6	3-8
wire diameter	2-6mm	3-8mm
cutting length	More than 300mm	More than 100mm

Technical Features
1, The CNC start-stop servo flying shear mechanism developed by our company has an advanced level, and its production speed and
precision have also reached advanced level.
2, The wire conveying consists of two sets of conveying boxes, which can ensure the stability of the wire speed during the
straightening process.
3, High-speed straightening cylinder mechanism: The straightening cylinder rotates at high speed to remove stress and straighten
the wire. The straightening block mode and roller straightening mode can be configured according to user requirements.
Details Images
Recommend Products

FAQ
Q1. Why choose us?
A. Our founding team has more than 20 years of experience in the R&D and manufacturing industry of metal forming and welding machinery. What we offer is a good product at a reasonably price.
Q2. Can I customize the product?
A. Yes . We can customize production equipment solutions according to your product requirements .
Q3. Can I get a sample?
A. Yes. But the proofing cost and shipping are negotiated by both parties.
Q4. What's the delivery time?
A. The delivery time needs to be determined by both parties through negotiation .
Q5.How to order?
A. Consulting → equipment plan quotation →negotiation→ prototyping →PO/PI→ payment deposit → production → debugging → delivery→further.
If you want more product information, please feel free to contact us!
