D28 /D16series 3D Welding Table Tools

Product Description

China Top Quality Hoston 2D welding table plate 3d metal welding table with jigs & welding fixtures
It is processed by CNC machining center.
According to the hole system: D28 and D16 models
According to the structure:2D flexible welding table and 3D flexible welding table
According to the material : steel tables and cast iron tables
The grid is engraved with corresponding grid lines.
Millimeter scales can be drawn on both sides of the right side of the platform according to customer requirements.

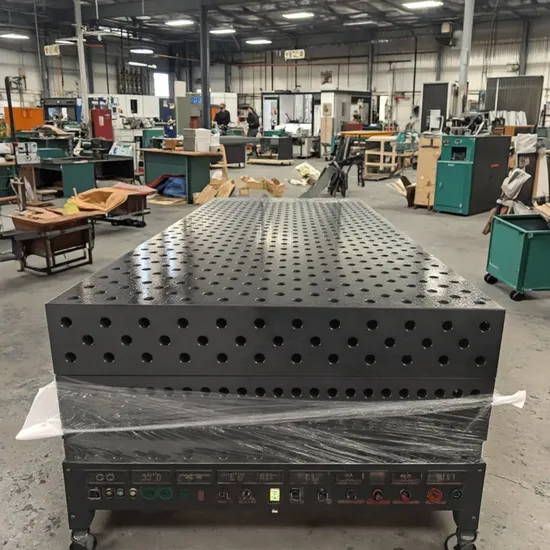

3D welding table -- D16 series
5 precision machined work surfaces made from cast iron
Hole diameter: 16mm
Hole pitch: 50mm
Grid lines: 50mm*50mm
Material thickness: approx.14mm
Side surfaces height: 100mm
Be reinforced on the underneath side by ribs.
3D welding table -- D28 series
5 precision machined work surfaces made from cast iron
Hole diameter: 28mm
Hole pitch: 100mm
Grid lines: 100mm*100mm
Material thickness: approx.23mm
Side surfaces height: 200mm
Be reinforced on the underneath side by ribs
FEATURES AT A GLANCE PRODUCT SPECIFICATIONS

NO.	Welding Table Specification	Dimension	Hole Diameter	Material
1	4000mm*2000mm	3D/2D	D28/D16	Cast lron /Steel /0345
2	3000mm*20000mm	3D/2D	D28/D16	Cast lron /Steel /0345
3	3000mm*1500mm	3D/2D	D28/D16	Cast lron /sSteel /0345
4	2400mm*1200mm	3D/2D	D28/D16	Cast lron /Steel /0345
5	2000mm*1000mm	3D/2D	D28/D16	Cast lron /Steel /0345
6	1500mm*1000mm	3D/2D	D28/D16	Cast lron /Steel /0345
7	1200mm*1000mm	3D/2D	D28/D16	Cast lron /Steel /0345

Hole: D28
One:Universal 3D casting welding table:
1. Flatness up to: 010/1000
2. The verticality between the side surface and the upper surface reaches: 010/200
3. The roughness of the working surface reaches: 16um
4 scale line specification: 100x100+005mm
5. Hole spacing: 100003mm
6. Material: casting (HT250), the overall annealing heat treatment to eliminate internal stress Place it for three to six months for natural aging treatment.
Supporting legs of the workbench:the load-bearing capacity of the standard type is 2T.
Two:Support angle iron
1. For casting HT300.
2. The flatness is 015/1000mm, and the verticality reaches 015/1000mm.
3. The position accuracy of each hole system does not exceed +0.05mm, and the size accuracy of the holes is P28D10.
4. The surface roughness of the working surface reaches Ra32
Three: Positioning angle ruler and positioning square ruler
1. The material is 45# steel quenched and tempered, blackened
2. The flatness is 015/1000mm, and the verticality reaches 015/1000mm.
The position accuracy of each hole system on the supporting angle iron does not exceed +0.05mm, and the dimensional accuracy is P28D10
Four: quick locking pin
1. Five steel balls must be used for positioning to ensure positioning accuracy
2. The material is 45# steel, quenched and tempered, and the dimensional accuracy of the lock pin is 28h7. Steel ball quenching treatment 3 locking force 21500KG
Five: Compression parts
1. It is a round pipe connection with flexible operation and no shaking after clamping. The clamping force is 100Kg~500Kg.
2.The pressure head adopts a split structure, which is convenient for maintenance and replacement. The working part is heat treated.
3. The surface has no burrs, corrosion spots and scratches, cast There are no slag inclusions and pores on the surface of the parts, and no peeling off the paint surface
Six: Technical requirements for related configuration accessories
1. Overall heat treatment of clamping and positioning parts, non-working surface painting treatment
2. Each module can realize XYZ and angle direction adjustment, and the flatness of each positioning surface is <020/1000mm, and the verticality is < 0.15/1000mm, parallelism <020/1000mm
3. The surface roughness of the working plane of each module is 32pmu
PRODUCT CONFIGURATION Successful ProjectPacking&ShippingFAQ
Q1. Are you manufacturer or trade company ?
We are professional manufacturer in China , and have in this line almost 10 years .
Q2. Would it be possible for us to visit your factory ?
Sure, welcome you at any time !
Q3 . Will your company supply samples ?
Yes ,we do .
Q4. How can we get the quotation ?
Please let us know the specifications , such as the material ,micron ,apply in which industry etc .
Q5.what's the lead time ?
Usually is 5-15 days after we received your payment .
Q6 . what is the packaging ?
Inner packing -poly bags .Outer packing -Export cartons .
Q7. Can I get your products with our logo and design ?
Yes ,you can . Most of our products can be customized according to your requirements .
Q8. Which payment terms are you accept ?
T/T , L/C .Western Union , Money gram are available for us . we accept 30% T/T in advance , the balance should be paid before shipping .
