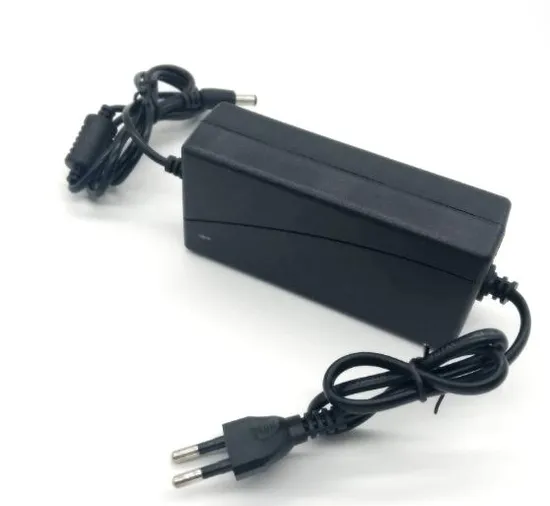

Factory Direct Sale Power Supply Input 100-240V AC to DC Power Adapter
| US$10.00-25.00 | 10 Pieces (MOQ) |
Basic Info.
Driving Method
LED Constant Current
Circuit Structure
PWM Controlled
Certification
TUV, CE, RoHS, ISO9001, CCC
Power Supply Mode
Constant Voltage Source
Modulation System
PWM
In-Out
Lifting Pressure Type
Power Supply Voltage
AC85-265
Transport Package
Packing Box
Specification
175*75*35
Trademark
Etonda
Origin
China
HS Code
8504401400
Production Capacity
50000000
Product Description
Product Description Output power:36w DC MAXProtections: Short circuit/Over load/Over voltage
100% full loading burn-in test 2 years warranty Detailed Photos
Product Parameters
| DC Output | DC Voltage: 12V |
| Ripple & Noise: 80MV | |
| DC Adjustable Range: ±10% Rated Voltage | |
| Voltage Tolerance: ±2.0% | |
| Line Regulation: ±0.5% | |
| Load Regulation: ±1% | |
| Setup,Rise Time,Hold Up Time:200ms,50ms, 20ms/230VAC | |
| AC Input | AC Voltage Range: 190-240VAC |
| Frequency Range: 47-64Hz | |
| Efficiency:>83% | |
| AC Current: 0.4A/230V | |
| AC Inrush Current: 40A/230V | |
| Leakage Current< 0.5mA /240VAC | |
Protection | Over-load: 105%-150% hiccup mode,Auto-recovery |
| Over-voltage: 115%-135% Cut Off the Output,Auto-recovery | |
| Over-temp. : Shut down O/P voltage, Auto-recovery | |
Environment | Working temp.: -10~ +60C° (Refer to output load derating curve) |
| Working Humidity:20 ~ 90% RH, non-condensing | |
| Storage Temp.: -10~ +60C° | |
| Storage Humidity: 10 ~ 95% RH | |
Safety | Isolation Resistance:I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC / 25C°/ 70% RH |
| Withstand Voltage: I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC | |
| Safety standards: CE,RoHS,FCC,ISO9001 |
