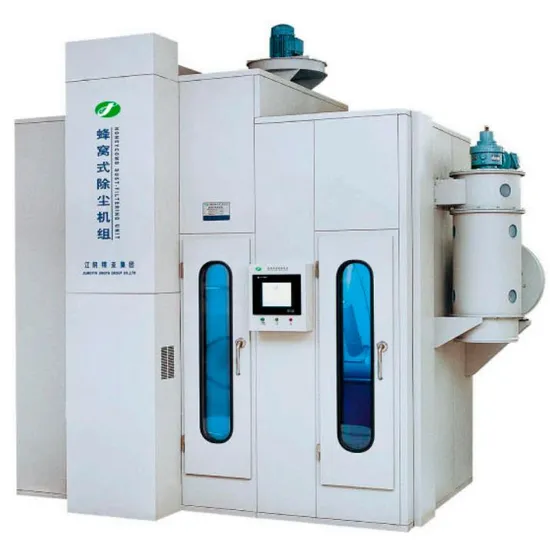

Jingwei Brand Jyfo-III-8 Honeycomb Dedust Filtering System 45kw Filter
| US$18,800.00-24,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
JW series
Spinning Method
Auxiliary Machinery
Processing Material
Cotton
Producing Process
Spinning Equipment
Certification
ISO9001: 2000
Warranty
12 Months
Customized
Non-Customized
Condition
New
After-sales Service
Guide User Personnel to Learn Installation
Max. Capacity
50000m3/H
Rotary Pre-Filter Dia
2000mm
Main Centrifugal Fan
Sff232-11.2e 45kw
Transport Package
Crates
Specification
JYFO
Origin
China
Production Capacity
200 Pieces/Year
Product Description
24h Online Customer ServiceProduct Description
Input data
| series | Name | Model | Qty. | Air volume | Notes |
| 1 | B/R | 1 | 16800 m3/h | ||
| 2 | Carding | JWF1213 | 6 | 4800*6=28,800 m3/h | |
| 3 | Total | 45600m3/h |
HONEYCPMBE Dust filter JYFL for One B/R line and 6 sets cardings
| Item | Description | Specification | Qty. | Notes |
| Honeycombe Dust filter Including following | JYFO-III-8 | One lot | Max. capacity 50000M3/h, Max. resistance < 220Pa | |
| Rotary Pre-Filter | JYFO-I-5 | 2 | Φ2000mm, 0.37kw | |
| Fiber Compactor | JYLC-03 | 2 | Capacity<100KG/h 0.55kw | |
| HoneyCombe filter | JYFO-II-8 | 1 | 0.37kw | |
| Main Centrifugal Fan | SFF232-11.2E 45Kw | 1 | When Air volume is 48440M3/h, the pressure is1982Pa | |
| Dust Collector | JYQY | 1 | 0.75kw | |
| Centrifugal Fan for Fibers Transport | FC-6-48 | 2 | 2.2kw | |
| Centrifugal Fan for Dust Transport | SFF233 | 1 | 4kw | |
| Electrical Switchboard | 1 | Total installed power 45kw+11.36kw | ||
| Operation box | 1 |
JYFO series honeycomb dust filter unit is a novel development in the dust filteringfield. It can be widely used in such textile and light industries as cotton,wool,ramie or flax,chemical fiber and tobacco etc,for collecting waste and filtering the dust air.
