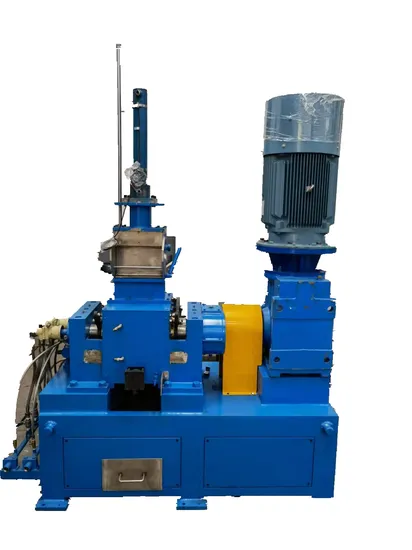

Lh-1.5y Rubber Intermeshing Mixer for Rubber Research Center Use
Basic Info.
Model NO.
LH-1.5Y
Certification
CE, ISO
Condition
New
Customized
Customized
Automatic Grade
Automatic
Structure
Vertical
Total Volum
1.5L
Weight
1.2 T
Color
Green
Rotating Speed
85/100r/Min
Drum Pressure
0.6MPa
Rotor
Intermesh
Power
37/55kw
Usage
Mixing Rubber
Rotor Style
Tangential and Intermesh
Transport Package
Film Covering
Specification
SGS
Trademark
LANHANG
Origin
China
HS Code
8477800000
Production Capacity
50 Sets/Year
Product Description
Company IntroductionFounded in 1992, Zhangjiagang Lanhang Machinery Co., Ltd. is a private enterprise integrating scientific research, production, marketing and service of plastic machinery into one complete whole. After 30 years of hard work and continued efforts to improve product quality, we passed ISO9001 certification for our products.
Our "Lanhang" brand of planetary roll extruders, straining extruders, powerful horsepower dense mixers, mixing rolls, and high-speed mixers are the backbone of our company.
Product Description
1) Application& Features
This machine is mainly used in the mixing of the plastic. The banbry mixer adopts the special structure of left, middle and right which is easy to maintenance.
2) Machine list
No. | Item | Qty |
1 | Body | 1 set |
2 | Hydraulic hammer and cylinder | 1 set |
3 | Material feeding system | 1 set |
4 | Discharging system | 1 set |
5 | Driving system | 1 set |
6 | Electrical controlling system | 1 set |
7 | Hydraulic and lubrication system | 1 set |
8 | Equipped pipe | 1 set |
Banbury mixer with tangential rotors
| / ITEM/MODEL | LX-1.5L | LX-3L | LX-10L | LX-35L | LX-55L | LX-75L | LX-100L | LX-160L | LX-190L | LX-270L | LX-410L |
ROTOR TYPE | TANGENTIAL ROTORS | ||||||||||
RAM DRIVER | HYDRAULIC or PNEUMATIC | ||||||||||
| L Total Volume | 1.5L | 3L | 10L | 35L | 55L | 75L | 100L | 120L | 160L | 270L | 410L |
FILL FACTOR | 75% | ||||||||||
MainRotor Speed(r/min) | 6~6 8~80 10~100 | 6~6 8~80 10~100 | 4~40 5~50 6~60 | ||||||||
Rotor speed ratio | 1:1.17 | ||||||||||
Power(kw) | 22 37 55 | 37 55 75 | 75 | 110 | 132 | 160 | 220 | 400 | 500 | 1250 1500 | 1250*2 |
| Weight(T) | 2,3 | 3 | 6 | 9 | 12.5 | 16 | 22 | 28 | 36 | 45 | 60 |
Internal mixer with intermesh rotors
| / ITEM/MODEL | LH-1.5Y | LH-3Y | LH-10Y | LH-35Y | LH-55Y | LH-90Y | LH-135Y | LH-160Y | LH-190Y | LH-250Y | LH-320Y | LH-410Y |
ROTOR TYPE | INTERMESHING ROTORS | |||||||||||
RAM DRIVER | HYDRAULIC or PNEUMATIC | |||||||||||
| L Total Volume | 1.5L | 3L | 10L | 35L | 55L | 75L | 100L | 120L | 160L | 270L | 410L | |
FILL FACTOR | 65% | |||||||||||
MainRotor Speed(r/min) | 6~60 8~80 10~100 | 6~60 8~80 10~100 | 4~40 5~50 6~60 | |||||||||
Rotor speed ratio | 1:1 | |||||||||||
Power(kw) | 37 55 75 | 55 75 90 | 110 | 160 | 250 | 280 350 450 | 500 630 750 | 630 750 800 | 750 1000 1250 | 1250 1500 | 1250 1500 1800 | 2500 |
| Weight(T) | 2.8 | 3.5 | 6.6 | 9.5 | 12.9 | 16.5 | 22.5 | 28.5 | 37 | 46 | 61 | 79 |
