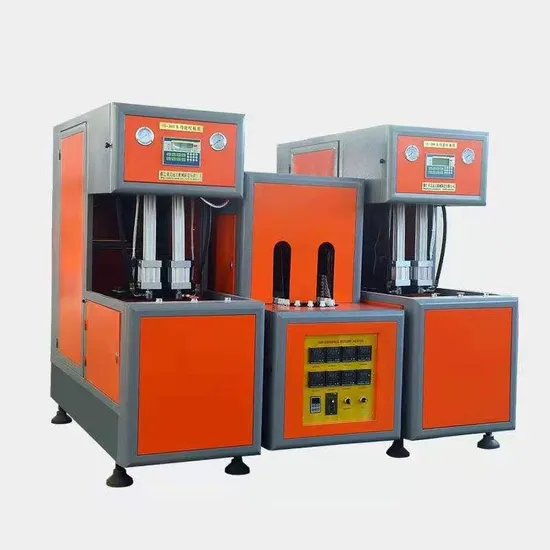

2 Cavity Semi Automatic Blow Molding Machine (BM-S2)

Product Description

Semi Automatic Blow Molding Machine
10-25L
Semi automatic PET bottle blow molding machine
5 gallon bottle blow molding mach
Semi Automatic Blow Molding Machine
1. Perfect function with economic investment.
2. Small size and compact construction with no space waste.
3. Easy to operate and maintain, operation by one person.
4. Saving power and uneasy to worn out. Adopting new double crank four bars to lock mould, the cross fixed. Providing high pressure blowing system.
5. We can provide performs and cap moulds for 5 gallon and 3 gallon bottle to meet customer's requirements

ITEM	UNIT	BM-S2
Cavity	pcs	2
Min.product capacity	L	10
Max.product capacity	L	25
Min.inner neck diameter	mm	55
Max.inner neck diameter	mm	180
Max.product diameter	mm	300
Max.product height	mm	470
Max.mould thickness	mm	200-350
Mould opening stroke(Adjustable)	mm	350
Theoretical output	bph	60-90
Operating pressure	Mpa	0.7-1.0
Blowing pressure	Mpa	1-3
Heater power	kw	28.8
Machine weight	kg	1350
Heater weight	kg	350
Machine dimension(L*W*H)	m	2.3×0.85×2.2
Heater dimension(L*W*H)	m	2.35×0.7×1.8

Feature:
BM-S2 semiautomatic bottle blow molding machine is suitable for producing PET plastic containers and bottles from 10-2000ml. It is widely used to produce the carbonated bottle, mineral water, carbonated drink bottle, pesticide bottle oil bottle cosmetics, wide-mouth bottle etc. Adopting double crank to adjust mould ,heavy locking mould, stable and fast ,Adopt infrared oven to heat the perform ,the perform rotated and heated equally. The air system has been divided into two parts: pneumatic action part and bottle blow part to meet the different requirements for the action and blow .It can provide sufficient and steady high pressure for blowing large irregular shaped bottles. The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine. The machine can be operated in the step-by-step mode and the semi-auto mode. The machine is small with low investment, easy and safe to operate.
