US$5,899.00
|
1 Piece
(MOQ)
|
Basic Info.
Usage
Special Excavator, Marine Excavator
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
0.1~0.5m³
Certification
CE, ISO9001: 2000
Transport Package
Container
Product Description
Product Description

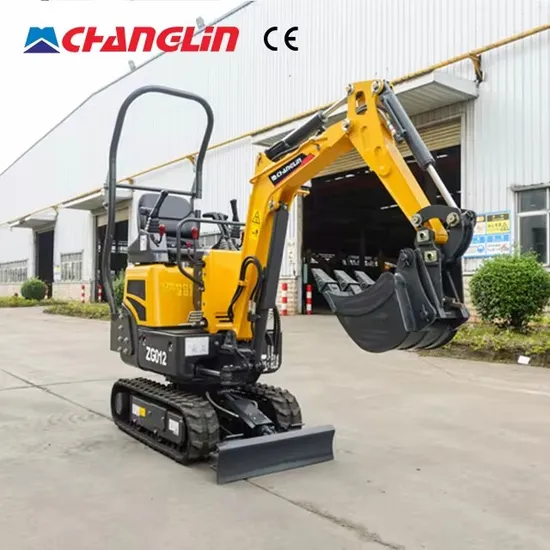

1 ton mini excavator
Optional Euro V/Tier4F engine(Koop engine)
Simple Structure
Easy pilot control
High safety standard
1 ton Level,Smallest pilot type mini excavator (only canopy version)
Machine weight: 1000 kg
Bucket capacity:0.02m³
Engine power : 7.6/3000 kW/rpm
Technical Specification |
Machine weight | | 1000 | kg |
Bucket capacity | 0.02 | m³ |
Width of bucket | | 356 | mm |
Engine model | | Koop | KD192F |
Engine power | 7.6/3000 | kW/rpm |
Max. Gradeability | 26.6 | ° |
Max.digging force of arm | | 6.73 | kN |
Max.digging force of bucket | 8.38 | kN |
Traveling speed | 1±0.2 | km/h |
Max. hauling force | 9.6 | kN |
Slewing speed of platform | 9-12 | rpm |
Operating parameter |
Max. digging height | | 2750 | mm |
Max. digging depth | 1475 | mm |
Max. digging radius | 3050 | mm |
Max. digging radius on ground level | 2950 | mm |
Max. dumping height | 1951 | mm |
Min. slewing radius | 1435 | mm |
Max. vertical digging depth | 990 | mm |
Transportation dimension |
Overall length | | 3200 | |
mm |
Overall width | | 840 | mm |
Overall height | | 2320 | mm |
Other Parameter |
Width of undercarriage | | 840 | mm |
Length of track | 1243 | mm |
Width of track | 180 | mm |
Height between undercarriage and ground | 158 | mm |
Height between platform and ground | | 413 | mm |
Platform tail turning radius | 1027 | mm |
Track gauge | | 895 | mm |
Fuel tank capacity | | 10 | L |
Hydraulic oil tank capacity | 13 | L |
Flow rate of pump | 24 | L/min |
|
