Faith Phone Case PVC ID Card Code Printer Industrial Desktop Fiber Laser Marking Machine

Product Description

PL130 Parameter

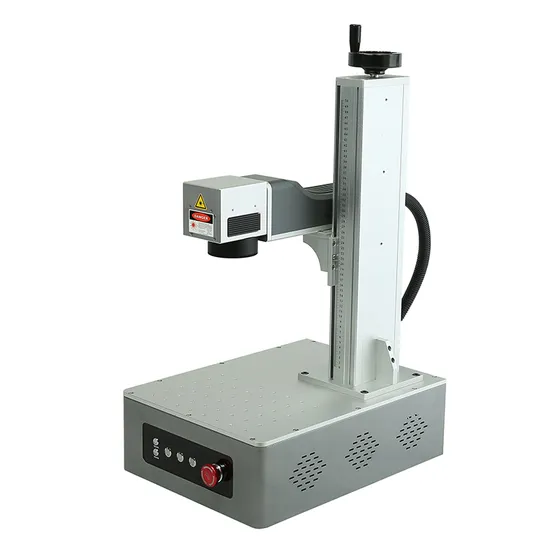

Product Name	Static fiber desktop laser engraving marking machine
Laser Power	20W/30W/50W
Laser Wavelenghth	1060nm
Beam Quality	<2(M2)
Laser Type	Pulse or Continuity
Cooling System	Air Cooling
Power Supply	200V,50Hz
Operating Environment	Temperature:-20ºC-45ºC relative humidity 80%
Marking Depth	10w 0.3mm or less 20w 0.5mm or less 30w 0.7mm
Marking Speed	7000 mm/s or less
Marking Range	Standard plane 110mm*110mm can be customized
Minimum of characters	0.15mm
Minimumline width	0.012mm
Repeat precision	+/- 0.002
Operating system	Win 98/ Win 2000 / Win XP/ Win 7
Graphiceditor	Software provide self editor,computer input,plane circumference,fan-shape distribution and end.
Graphic conversion	Software to provide Auto CAD Corel DrawCAXA graphic file conversion

Faith PL130 Main Features
1)This PL130 fiber laser marking machine can be equipped with a variety of power laser light source, no matter what industry you belong to, we supply with the most suitable fiber laser marking machine;
2)The marking speed is fast, the efficiency is high, in the same time the workpiece output increases obviously, speeds up the user's investment return;
3) The machine has a long service life, stable laser output power, high reliability, and can work continuously under harsh working conditions. In principle, service life is more than 100,000 hours, which is basically maintenation-free and more than 15 times of the semiconductor
4)Compact size, low energy consumption, convenient handling, saving production space
1. can be a variety of metal, non-metallic materials for processing.Especially for high hardness, high melting point, brittle
material marking more obvious advantages.
2. belongs to the non-contact processing, does not damage the product, no tool wear, marking good quality.
3. The laser beam is fine, the processing material consumption is small, and the processing heat influence area is small.
4. high processing efficiency, the use of computer control, easy to achieve automation
Packing List

Name of a single accessory attached	Quantity
Optical fiber laser machine cabinet	1
Laser	1
Scanning galvanometer	1
General control power box	1
3D lifting bracket	1
15 inch LCD display	1
Professional date line	1
Foot swich	1

why choose us?
We have accumulated rich experience in design and production. In addition to the imported automatic printing equipment in domestic car production line, our company has an absolute advantage, and has installed more than 35,000 sets of systems worldwide.The sales volume of mechanical marking system ranks the first in the world, and the sales volume of laser marking system ranks the first in Asia.Some domestic customers such as Toyota, faw Volkswagen, faw assembly geely, tianjin xiali, ningbo, Shanghai maple, Shanghai gm, jiangsu yueda KIA, foton, guangzhou Honda, Beijing hyundai, Beijing Benz, jinbei automobile, brilliance and other manufacturers, both chose my company with the line of printing equipment, the equipment on the production line of continuous and reliable work, low failure rate, create value for customers, the company won the honor for me.
FAQ
1.What are the primary products of your company?
Our primary products include laser marking machine, inkjet printer machine,paging machine.
2.Where is your laser marking machine applied to?
Our laser equipment is applied to metal, non-metal, textiles, leather, shoes, advertisement, gifts, electronic components, stamp,etc
3.Which countries are your laser machinery sold to?
Our products are widely exported to Poland, Russia, Ukraine, Korea, Thailand, Egypt, Brazil, Australia, Singapore, Saudi Arabia,
Turkey, India, Italy, and other countries.
4.How long is the delivery time?
The products will be delivered to you within one week after the order is confirmed.
5.What certificate has your company got?
All of our product with CE, ISO
