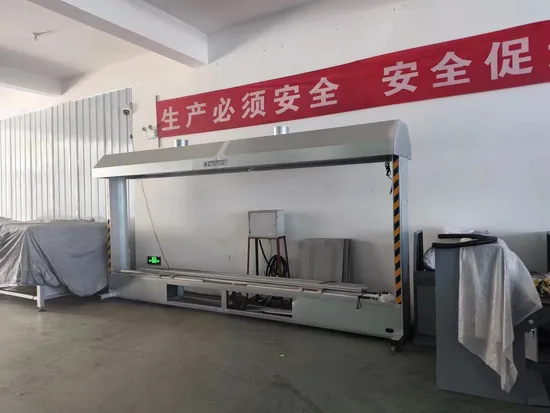

CNC Vertical Polystyrene EPS Foam Hot Wire Cutting Machine

Product Description

Product Description
CNC hot wire foam cutter machine is mainly used for the EPS foam block cutting work for the industry such as package industry, eps foam cushion making, foam mould industry, eps foam letter cutting, architectural decoration, building foam pillar cutting, advertising industry, arts and craft of foam product. Machine could add single or mulitple cutting wires according to different working size requirment.
Features of CNC cutting machine:
1. Equipment easy maintenance;
2. The operator's fatigue or loss of error is completely eliminated;
3.Low labor intensity and high production efficiency;
4. There is no need to create a repair and store the sample, greatly reducingthe cost;
5 computer automatic control cutting, reduce waste of raw materials;
6. Design modification,template production,track formation,another equipment for cutting workpiece independently;
7.It can cut multiple heating wires at the same time, which can improve theproduction efficiency to a greater extent;
8. The machine has the function of power-off memory, reciprocating cuttingand remote operation;
9. The transmission part of the equipment adopts Taiwan precision ball screwsand components, which is stable in operation and long in service life;
10. This machine is equipped with electric heating digital display fine ad-justment, which can make the cutting temperature adjust to the best, ensure thecutting surface smooth and smooth, and ensure the machining accuracy of cuttingworkpiece size!
11.The machine has the function of multi wire cutting at the same time. ltcan cut multiple workpieces and process various cones at the same time.

Detailed Photos
Product Parameters

Product name	CNC hot wire foam cutter
Model	QSK-1320(ABC)
Mainly Function	Foam cutting
Machine structure	Thick steel welded
Max. processing length	2100mm(Can be customized)
Max. processing width	1300mm(Can be customized)
Heating power	5KW
Voltage	220V/380V-50HZ
Cutting accuracy	±0.1mm
Control Axis	4~6 Axis
Cutting speed	500-1000mm/min
Driving Motor	57/86 step motor
Control software	Drawing of AutoCAD,CAXA,Band5 etc.

Packaging & Shipping
Application
