Prefab EPS Concrete Wall Panels Producing Machine

Product Description

Product Description
OYD-QZD solid lightweight wall panel production line main equipment includes: automatic lightweight aggregate concrete mixing plant, slurry pouring system, plate forming mold car, mold car automatic circulation system, plate ejection system, material storage system.
The equipment has a high degree of automation, the measurement system is accurate, the mixing system is evenly stirred, the structure is compact, the appearance is beautiful, the operation is stable, the operation is convenient, and the production efficiency is high; the molding die is accurate, tight, and easy to install, and the wall panels produced are stable in shape, no deformation, no cracking; the mold car circulation system is safe and reliable, easy to operate, and saves space.

Configuration	Automatic metering system
Capacity	20,000sqm~600,000sqm per year
Thickness	50-250mm thickness. special sizes need to be customized
Length	2440~3600mm, special sizes need to be customized
Width	610mm, special sizes could be customized
Raw material	There are mainly two different types
	1. Cement+fly ash/eps/ceramsite/sand, etc (optional, can choose to add or not add)
	2. Foamed cement+additives
Finished board type	1. Composite board/sandwich board, with surface board
	2. The lightweight solid panel, without surface board
Surface board types	1. Calcium silicate board
	2. Fiber cement board
	3. MgO board

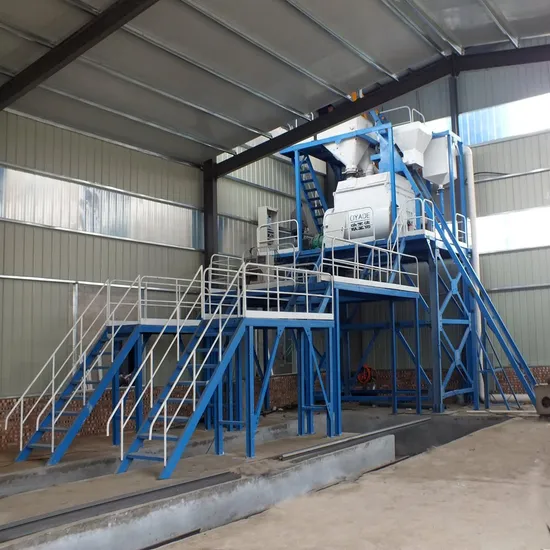

Main Parts Raw materials mix/Mixing platform Advantages:
Double shaft, automatic metering machine.
Double shaft mixer could mix the materials more even, auto metering could make sure the formula is stable and accurate.
We adopt double-shaft mixer, which has a compact structure, beautiful appearance, stable running, convenient operation, high production efficiency.
Pumping system
Used to paste into the mold can avoid the air holes.
The feeding machine can be movable, or fixed, matched well with the mold car, easily operate Mould Car Different type could suit for different requirements
Automatic open mold, automatic unloading board,automatic flip demolding.
After curing, unloading the wall panel and stacking. our unique advantages, full automatic unload the panel 20 panels per times.
Finished Products
Now why eps wall panel is more and more popular?
1 -lightweight :The lighter material of the wall panel used weighs 25% to 40% of the weight of the bricks
2 -High thermal insulation
3 - Remove a higher sound
4 -Install faster 4 Times than the regular blocks
5 - Wall does not need the expenses of the work of the plaster
For interior and exterior wall partition on steel or concrete structure building, new construction or renovations can be widely applied to wall materials of various high and low buildings such as bank, office building, hospital, school, hotel, shopping mall, amusement, old house reconstruction, residence, and workshop
Application
Partition Walls/Internal Walls/Exterior Walls/Renovation of Old Buildings/ Widely used in the buildings and construction.
Machine Projects
After many years in this field, we have helped many customers to build up their factories for wall panels. We will make sure the machine runs well and could adjust the fomula based on your local market and resources.
Production Process
Packing and Delivery
We will design the loading of eps and cement sandwich panel making machine for many times, so as to save your sea freight:
1. Firstly use plastic film to wrap and cover the machine;
2. Then pack small parts in a plywood box.
3. Marked with the required label or shipping mark.
4. Use steel wire rope to fix in the container, so as to avoid damage because of moving.
Our Company
OYADE (Shandong) Machinery Equipment Co., Ltd. is specialized in designing and manufacturing lightweight wall panel production line. With rich experience in mechanical design and manufacturing, professional import and export services, we commit to provide the best-integrated solutions of production line for customers.
Our general engineer has over 20 years' experience in the mechanical industry, proficient in the newest machinery design/manufacturing. Other main engineers all have over 10 years' experience.
After installation and commissioning, we will provide technical formula suitable with the client's demand, ensuring clients can produce qualified finished products. Additionally, we will help local experienced engineers to master the production process.
Our professional sales team, designing team, manufacturing team, installation team, process team, service team, promise you a 100% perfect project. Warmly welcome your visiting!!!
FAQ
Q: How to cure the wall panel?
A: Normally curing time is 8-12hours, it can adjust according to your local temperature, also need natural curing around 25-28days before use it.
Q: How long is the warranty of your equipment?
A: 1year,but we will provide after-sale service the whole life cycle
Q: Do you supply spare parts?
A: Excellent easy broken parts support for buyers. Easily broken parts guarantee for one year. Other parts we will provide price list in advance.
Q: Will you provide trainning and formula?
A: The training is free of charge, and our engineer will be on duty to train your worker until they know how to produce the qualified product.Also, we will provide you qualified formula
Q: How will you provide installation & commissioning?
A: Will provide 2~8persons(adjustable according to the degree of automatic )for installation.Engineers team will go with your project. , besides we only need 15days for commission .in this way can help you save cost on raw material and time.
